Summary of Contents for JK Exer FitLux 665

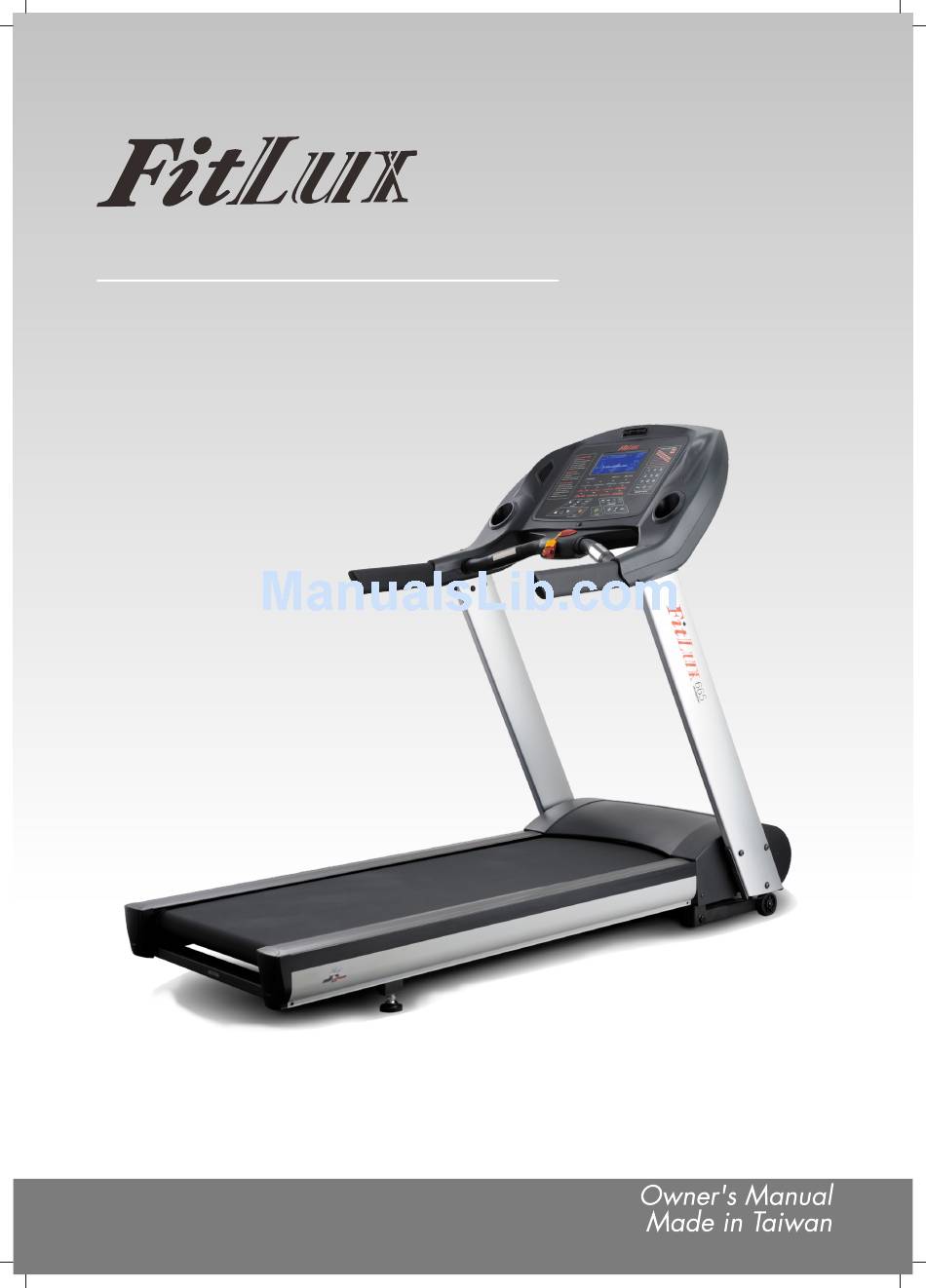

  • Page 1 MOTORIZED TREADMILL...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS IMPORTANT SAFETY INSTRUCTIONS P. 1 ....... ELECTRICAL GROUNDING INSTRUCTIONS P.

  • Page 3: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS Please read the following basic precautions prior to use of the treadmill: * Never operate the treadmill with the air openings blocked. * Keep air openings free of lint, hair and the like. WARNING * This treadmill requires a dedicated circuit as 220-240V 20AMP separately that is not shared by any other electrical appliances.

  • Page 4: Electrical Grounding Instructions

    * Do not walk or jog barefoot or without * Do not plug into the same outlet with any shoes. other electrical appliance while using this * Do not walk or jog in loose shoes or slippers. treadmill. Athletic shoes are always recommended while using this treadmill.

  • Page 5: Caution: Before And After Running On The Treadmill

    CAUTION: BEFORE AND AFTER RUNNING ON THE TREADMILL Before Running: 1. Read the manual first for familiarization of the computer and other important features. 2. Before starting the treadmill, always stand on two side rails on both sides (not on the running belt) as shown on drawing.
  • Page 6 What to lubricate? Do not lubricate with other than our approved lubricant. Your treadmill comes with one 30ml tube of silicone. For further lubrication, you may order from distributor for our 200ml silicone: • 200ml silicone in one bottle with 35cm applicator •...

  • Page 7: Assebly Parts List

    ASSEMBLY PARTS LIST ........MAIN FRAME COMPUTER .

  • Page 8: Assemly Instructions

    ASSEMBLY INSTRUCTIONS Step 1: Take the Front Post that has one cable with 7-PIN & 5-PIN inside. This post is for right Insert Front Post onto side of the machine. the Main Frame as photo shown, fix with Bolt & Washer (A) and Bolts & Washers (B).

  • Page 9: Positioned For Operation

    Step 4. Plug in the Power Cable into the socket at the front of Main Frame. POSITIONED FOR OPERATION There are two Balancers at the rear bottom of Main Frame. Adjust these Balancers to make sure the frame is stably positioned on the ground for exercise.

  • Page 10: How To Operate

    HOW TO OPERATE GET READY FOR OPERATION Press the Master Power Switch located at the front of the frame (see MASTER POWER SWITCH LOCATION) to "ON" position, and insert SAFETY KEY , machine is now ready for operation. OPERATION IN QUICK START MANUAL (P0) MODE First option : Just press START button to start running.
  • Page 11 Incline and Speed profiles will change according to the incline and speed user adjusts. And machine will stop automatically after preset time or calories counts down to 0. INCLINE & SPEED DOT MATRIX FOR TARGET (DISTANCE) MODE When running in target/distance mode, first dot on speed dot matrix on the right side of screen will start flashing and next dot will be also flashing after running for 10m.
  • Page 12 P 1 ~ P 4 PROGRAM FOR SPEED SPEED LEVEL 1 2.0 KPH 2.0 KPH 3.0 KPH 3.0 KPH Interval 1 3.0 KPH 4.0 KPH 6.0 KPH 3.0 KPH Interval 2 4.0 KPH 6.0 KPH 10.0 KPH 5.0 KPH Interval 3 5.0 KPH 2.0 KPH 10.0 KPH...
  • Page 13 P 5 ~ P 8 PROGRAM FOR INCLINE INCLINE LEVEL 1 Interval 1 Interval 2 Interval 3 Interval 4 Interval 5 Interval 6 Interval 7 Interval 8 Interval 9 Interval 10 Interval 11 Interval 12 Interval 13 Interval 14 Interval 15 P 5 ~ P 8 FOR INCLINE ADJUSTMENT 以上...
  • Page 14 P9 ~ P12 PROGRAM FOR SPEED & INCLINE LEVEL 1 SPEED INCLINE SPEED INCLINE SPEED INCLIN SPEED INCLINE 3.0 KPH 2.0 KPH 2.0 KPH 2.0 KPH Interval 1 3.0 KPH 2.0 KPH 2.0 KPH 6.0 KPH Interval 2 5.0 KPH 5.0 KPH 8.0 KPH 6.0 KPH...
  • Page 15 IN SUMMARY: P1 - P4 are for preset speed program. P5 – P8 are for preset incline program. P9 – P12 are for preset speed & incline program. OPERATION IN HEART RATE CONTROL (HRC) MODE First option Step 1 Press HRC button to choose H1 (H2 or H3). Please note if you have set Age, Weight, and Height to get BMI before operating, number of heartbeat will follow your above preset age instead of 114 (142 or 161).
  • Page 16 2. When starting HRC mode, actual heartbeat will be got within 30 seconds by 3 measurements. First measurement will be done in 10 seconds after starting. If no heartbeat can be measured, display for PULSE will be flashing for 3 times. 3.

  • Page 17: Master Power Switch Location

    STEP 6 ▲ ▼ Press ENTER and SPEED or INCLINE / button to input desired workout time. Press ENTER again, the whole setting will be memorized. STEP 7 Press START button to begin operating. NOTE: 3 USER programs, U1, U2, and U3, should be edited and memorized first then you may press USER button to choose U1, U2, or U3 for exercising.

  • Page 18: Computer Instructions

    COMPUTER INSTRUCTIONS FUNCTION DISPLA Y TIME: Accumulate total workout time (0.00 – 99.59). Preset time is 48. This also can be preset from 10 – 99 for counting down operation. SPEED: Display running speed from 0.8 to 18KPH. BMI: Body Mass Index. Calculated by weight (kg) / height (M x M). For reference;...

  • Page 19: Error Message & Trouble Shooting

    ENTER button on the keypad is to enter the figures that was input. ESC button on the keypad is to cancel the figures that was input. FAN: It’s at the front top side of computer, controlled by the switch at the central bottom of computer.

  • Page 20: Aligning The Running Belt

    ALIGNING THE RUNNING BELT Ensure the running belt is centered on your treadmill at all times. Running style and Non-level surface are two instances which may cause the belt to drift off center. Minor adjustments to the two bolts at the rear of the treadmill are necessary when the belt has drifted off center.

  • Page 21: Cleaning

    CLEANING Firstly, make sure the treadmill is off and unplugged from the electrical outlet. To remove dust, use a small vacuum nozzle to carefully vacuum around all visible components. To remove film or dust, use a slightly damp rag with a mild cleaning agent sprayed onto the rag only.

  • Page 22: Exploded Drawing

    Exploded Drawing...

  • Page 23: Parts List

    PARTS LIST Jk9815 Description Description MAIN FRAME BOLT (M8 x 45) FRONT STAND BOLT (M8 x 65) FRONT POST ( L ) WASHER (Ø8 x Ø16) FRONT POST ( R ) BOLT (M8 x 30) HAND BAR CABLE (Brown) 170mm HAND BAR FOAM WASHER (Ø8 x Ø19) WASHER (Ø10 x Ø30)
  • Page 24 20160803...
