Installation and Maintenance Manual
Pallas Duo

Advertisement

loading
Need help?

Need help?

Do you have a question about the Pallas Duo and is the answer not in the manual?

Questions and answers

Summary of Contents for GAPS Water Treatment Pallas Duo

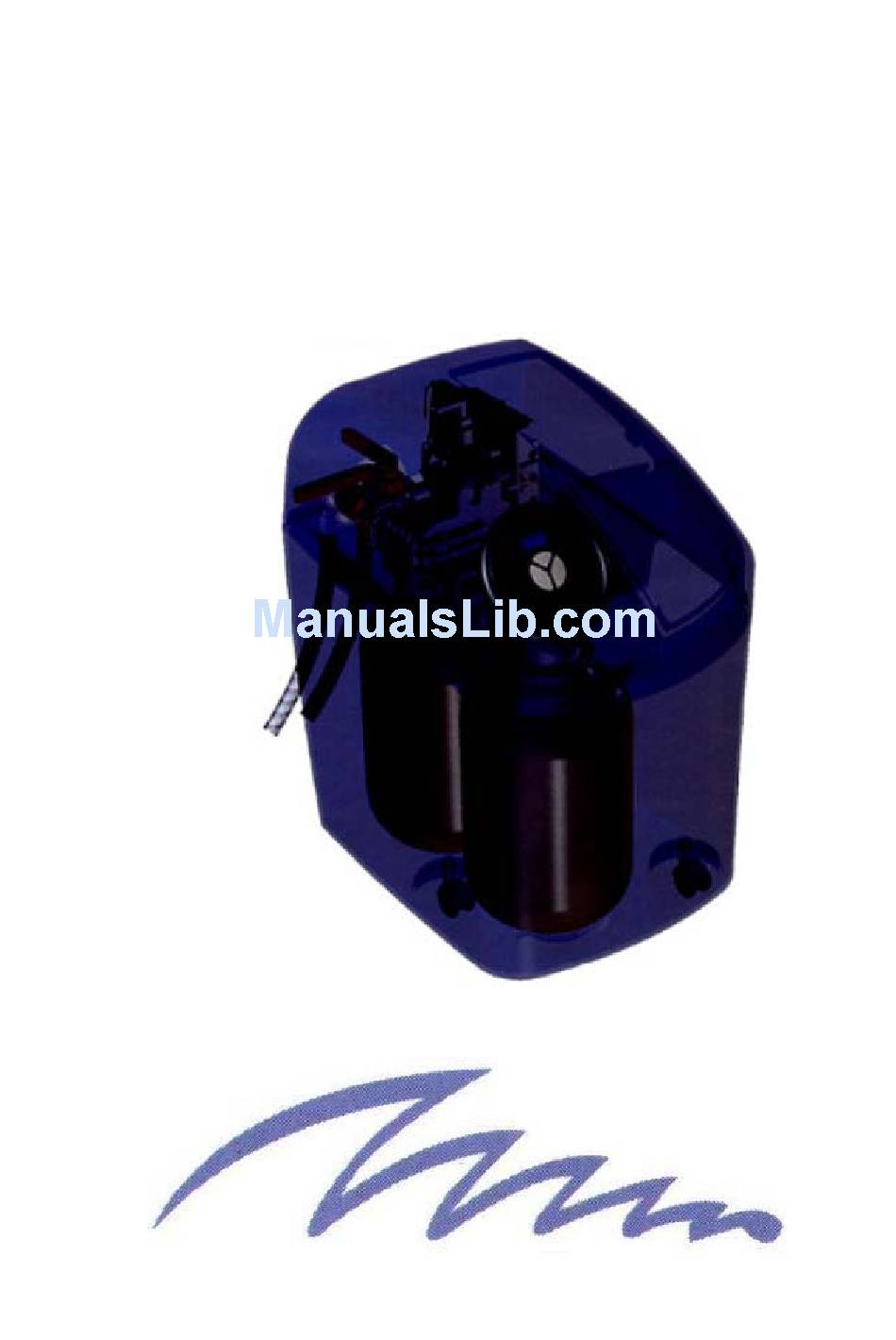

  • Page 1 Installation and Maintenance Manual Pallas Duo...

  • Page 2: General Installation Checklist

    General installation checklist 1) Place the softener where you want to install the unit. NOTE: Be sure the softener is level and on a firm base. 2) During cold weather it is recommended that the installer warm the valve to room temperature before operating. 3) Perform all plumbing according to local plumbing codes.

  • Page 3: Wiring Diagram

    Wiring Diagram Up Flow...
  • Page 4 Wiring Diagram Up Flow + Chlorinator...

  • Page 5: Exploded Diagram

    Exploded Diagram Power Head - Up Flow (Ref : 28396)
  • Page 6 Exploded Diagram Power Head - Up Flow (Ref : 28396) ITEM PART No DESCRIPTION 10218 MICROSWITCH 10302 INSULATOR 10339 11086 SCREW M3 X 0.50 11335 SCREW FILLISTER HEAD # 4-40 x 0.19 11663 LOCK WASHER 13296 SCREW # 6-20 x 0.50 13547 STRAIN RELIEF 14896...
  • Page 7 Exploded Diagram Power Head - Up Flow + chlorinator (ref : 28363)
  • Page 8 Exploded Diagram Power Head - Up Flow + chlorinator (ref : 28363) ITEM PART No DESCRIPTION 10218 MICROSWITCH 10302 INSULATOR 10339 11086 SCREW M3 X 0.50 11335 SCREW FILLISTER HEAD # 4-40 x 0.19 11663 LOCK WASHER 11882 SWITCH STAND OFF 13296 SCREW # 6-20 x 0.50 13547...
  • Page 9 Exploded Diagram Valve Body Assembly (Ref : 28238) ITEM PART No DESCRIPTION 13361 SPACER INJECTOR 13497 AIR DISPERSER 14906 END PLATE 14928 END PLUG STUD 15137 SCREW HEX WASHER HEAD 10-24 X 3/8" 28246 INJECTOR ASSEMBLY 9100 UF 28173 PISTON LOWER ASSEMBLY 9000 UF 25642 SEAL &...
  • Page 10 Exploded Diagram Second tank adaptor assembly ITEM DESCRIPTION 18303-01 O'ring 18569 Retainer tank seal 19054 O'ring 40673 tank adapter 40538 O'ring retainer 32mm 61419 Distributor adapter kit 13304-01 O'ring 13255 Clip 14202-01 Screw Tube assembly 9100 for 7" tank 13287-01 O'ring...
  • Page 11 Exploded diagram Water meter ¾ assembly ITEM PART No DESCRIPTION 19797 METER BODY ASSY ¾" TURBINE 19569 CLIP, FLOW METER 13314 SCREW HEX WASHER HEAD 8 - 18 x .60...
