Summary of Contents for AZIN PHS-550

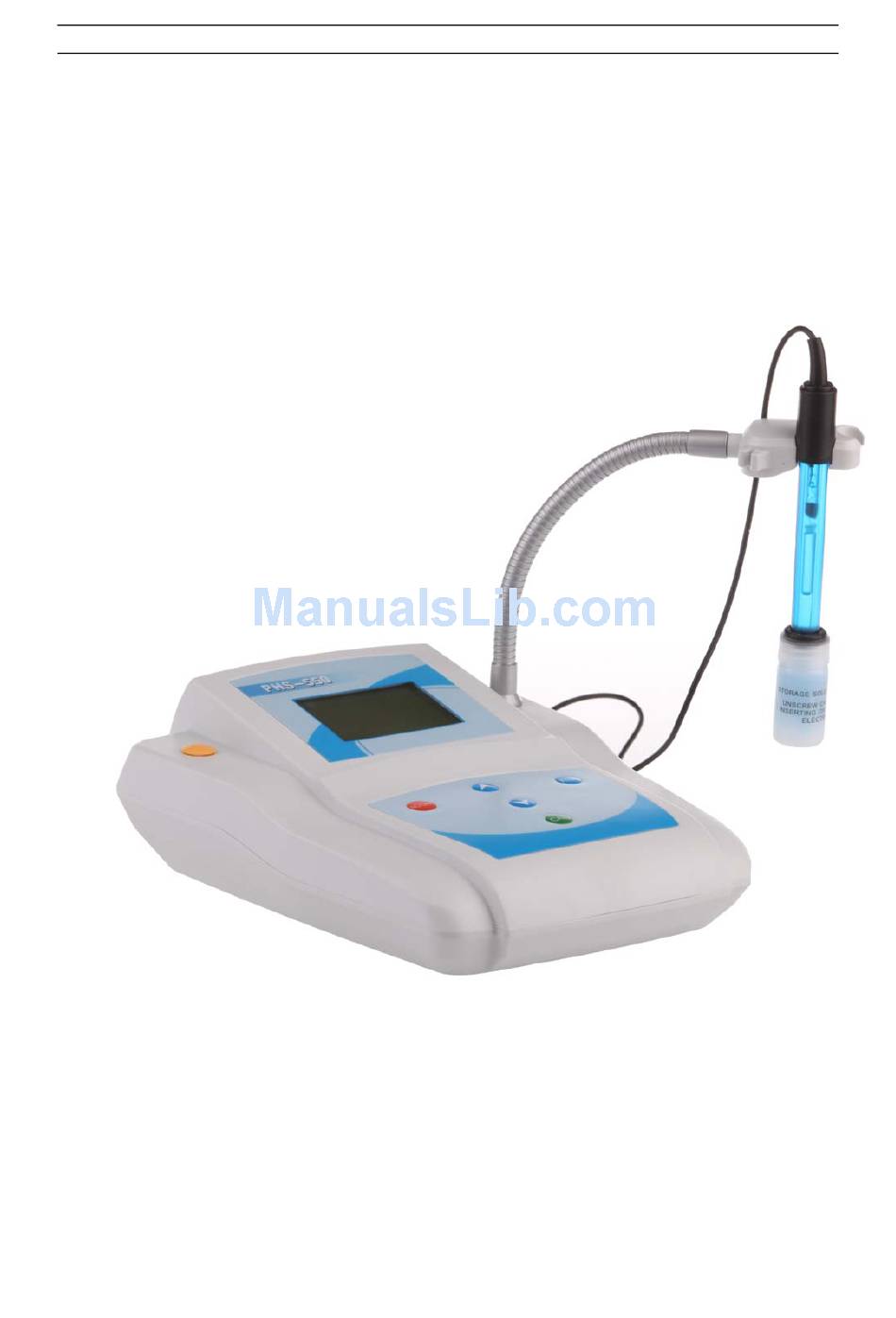

- Page 1 OPERATION MANUAL OPERATION INSTRUCTION PHS-550 High accuracy digital pH meter 1. Unpacking & Accessory 2. Specifications 3. Operation 4. Maintenance and notice 5. Configuration of standard solution...
- Page 2 OPERATION MANUAL 1. Unpacking & Accessories PHS-550 pH Meter Combination PH electrode Short circuit plug in the back of Meter Electrode Stand Temperature Sensor 9V Adaptor Buffer Solution pH4.00, pH6.86, pH 9.18 1PC/EACH User Manual...
-
Page 3: Specifications
OPERATION MANUAL 2. Specifications Mode PHS-550 Range pH：0～14.00pH mV:±1999mV， Temp：0～100℃ pH：0.01pH， Resolution Temp：±1℃ pH：0.01pH，Temp：±1℃ Accuracy Temperature compensation 0－100℃ automatic compensation Three points calibration 4.00, 6.86 and 9.18 Basic configuration E201-C plastic case PH combination electrode (Temperature of solution 5-60℃ be suitable) - Page 4 OPERATION MANUAL 3. Operation Preparation Insert the adapter into the 220V AC power supply; after that, insert the dc output plug into "DC9V" socket. Screw off the short circuit plug of the meter, Screw on the pH electrode. Please keep clean and dry of electrode before using, avoid to be polluted. Switch on the instrument and preheat for 5 minutes.
- Page 5 OPERATION MANUAL different temperature. For example, it will show pH4.00 under 25℃ and pH4.02 under 35℃. Details please find it from the last page. Slope calibration Ⅱ: Take out the pH electrode, clean it by purified water and make it dry, immerse the pH electrode to PH9.18 solution, shake it for a while then wait until the number shows on the screen is stable, keep pressing the "calibration"...
- Page 6 OPERATION MANUAL 4. Maintenance and note Notes for Testing Sample The electrode plug and socket of instrument must keep clean and dry, short circuit plug should be put on when not using, for preventing the intrusion of dust and moisture. The different sample should use the suitable pH electrode(for example: measure strong acid、strong alkali or pure water and so on.
- Page 7 OPERATION MANUAL electrode, otherwise the electrode will not work if the top glass ball of electrode is broken. When using liquid chargeable electrode, please note that if liquid inside decreases to be less than half volume, please use burette to add liquid from hole at the top. When measuring, please turn the blue circle to cover the small hole.
- Page 8 OPERATION MANUAL 5. Preparation of standard solution Pour the standard solution powder into the 250ml beaker, use the distilled water to wash it, and then dissolved and diluted to the scale, then shake up. Below is the pH value and temperature relation table: solution 0.05mol/kg Solution value...
