Summary of Contents for Orbitel OBT-58108

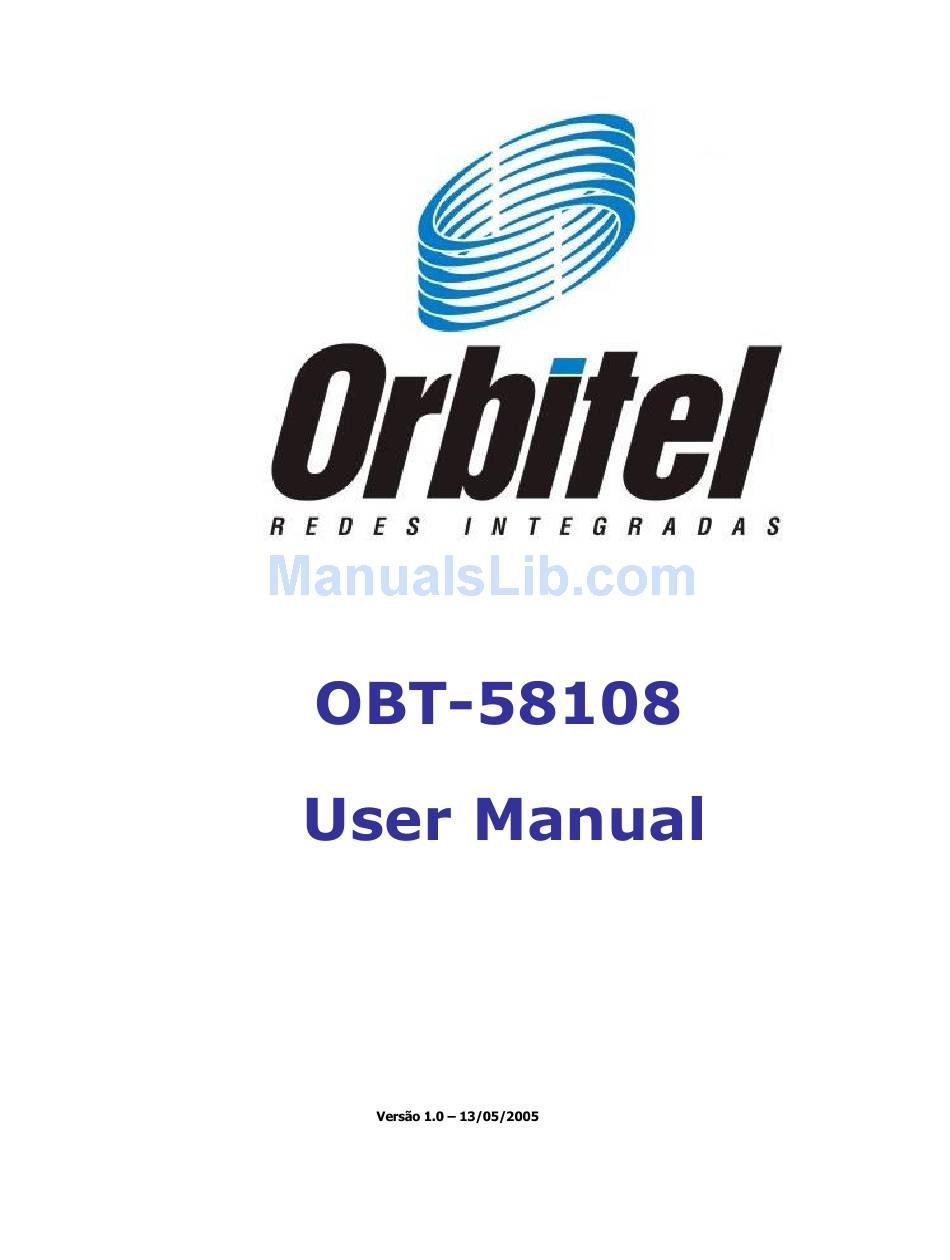

  • Page 1 Página 1 de 27...

  • Page 2: Copyright

    Copyright There is no any clear or implicit assurance in the user's manual of our company, including the assurance of selling or installing for the special purpose . There are rival's volumes to carry on the power to alter or revise in our company, if alter and forgive me for not issuing a separate notice.

  • Page 3: Table Of Contents

    Table of Contents COPYRIGHT .........................2 REGISTERED TRADEMARK ...................2 FCC INFORMATION ......................2 ABOUT THE MANUAL .......................2 1. OBT-58108 INTRODUCTION ..................4 ........................4 PPEARANCE OF RODUCT ........................4 EATURES AND ENEFITS ......................5 EPRESENTATIVE PPLICATION ........................... 5 YSTEM EQUIREMENT 2. HARDWARE INSTALLATION ..................6 ............................

  • Page 4: Obt-58108 Introduction

    Wireless Outdoor Bridge is specially designed for Point-to-Point and Point-to-Multipoint applications, offering campus-wide connections between buildings at a speed of up to 54Mbps. OBT-58108-I build in 23dBi gain antenna, OBT-58108-E with N-Female connector for external antenna. The new features and benefits are: support POE (power over Ethernet), support test-link, use this utility, you can place the antenna in the best place.

  • Page 5: Representative Application

    Representative Application The Wireless Outdoor Bridge offer a fast, reliable, cost-effective solution for wireless client access to the network in applications like these: Remote Access to Corporate Network Information „ E-mail, file transfer and terminal emulation. Difficult-to-Wire Environments „ Historical or old buildings, asbestos installations, and open area where wiring is difficult to deploy.

  • Page 6: Hardware Installation

    • Product Kit • Hardware Installation • Initialize Product Kit Before installation, make sure that you the following items: The Wireless Outdoor Bridge (OBT-58108)*1 DC Injector*1 Product CD*1 Power Adapter*1 Fixed settings*1 If any of the above items are not included or damaged, please contact your local dealer for support.
  • Page 7 Connect the Ethernet Cable „ The Wireless Outdoor Bridge supports 10/100M Ethernet connection. Attach UTP Ethernet cable to the RJ-45 connector on the Wireless Outdoor Bridge. Then connect the other end of the RJ-45 cable to a hub or a station. Please note that, use the crossover cable when you desire to connect the Wireless Outdoor Bridge to a PC.

  • Page 8: Initialize

    Initialize Have initial value , network of bridge whether which is short of province parameter set up , is it install after finishing is it can make working to it to supply powering in hardware to need only. Warning Please don't insert and pull out the network cable with electricity. Página 8 de 27...

  • Page 9: Configuring Obt-58108

    3. Configuring OBT-58108 • Using the Web Management • General • Basic Setup • Security • Advanced Setup • Management • Information Using the Web Management Picture1 Enter The built-in Web Management provides you with a user-friendly graphical user interface to manage the Wireless Outdoor Bridge.

  • Page 10: General

    General Picture2 General General page displays current settings and statistics for the Wireless Outdoor Bridge. As this information is read-only, any changes must be made on other pages. Access Point Information: General information. Current IP Settings: These are the current settings for IP address, Subnet Mask, Default Gateway and DHCP settings.
  • Page 11 Access Point Name This unique name is Wireless Outdoor Bridge NetBIOS name. The default Name is located on the bottom label of OBT-58108. You may modify the default name with a unique name up to 15 characters long. Default: ZCOMxxxxxx, where xxxxxx represents the last 6 digits of the MAC address.
  • Page 12 Wireless Picture 4 Wireless Settings Enter a 32-character (maximum) service set ID in this field; the characters are case sensitive. When in infrastructure mode, this field defines the service set ID (SSID). The SSID assigned to the wireless node is required to match the Wireless Outdoor Bridge SSID in order for the wireless node to communicate with the Wireless Outdoor Bridge.
  • Page 13 Channel/Frequency Select the channel you wish to use on your wireless LAN. Default: 149 Note. If you experience interference (shown by lost connections and/or slow data transfers) you may need to experiment with different channels to see which is the best.
  • Page 14 Choose to open the route function: You can set up IP address , subnet mask , value that is closed of acquiescence network according to your need . Notice: When you choose the route function, If choose WAN port to be that then IP address established in LAN is the address of the wireless end in the wired end;...

  • Page 15: Security

    Security Picture 6 Security Settings Enable or Disable the Wired Equivalent Privacy for data encryption. Authentication Type Specifies the Authentication type used: Open System or Shared Key. If "Shared Key" is selected, you need to enable WEP and enter at least one shared key. Default: Open System Encryption Strength Select the desired option.
  • Page 16 Picture7 Access Control List The optional Access Control window lets you block the network access privilege of the specified stations through the OBT-58108 Wireless Access Point. This provides an additional layer of security. Choose the Turn Access Control On to enable Access Control feature.

  • Page 17: Advanced Setup

    Select the stations from the wireless station list and click Add button to add to the Trusted Wireless Stations list. Add new Station Manually Use this to add the MAC address of the wireless stations to the Trusted Wireless Stations list. Advanced Setup Link Test Picture8 Link Test...
  • Page 18 In point-to-Multipoint mode, must test every chain . Notice: In the point-to-Multipoint mode, central point input from for central point distance to get most far point, the far point is before reaching the real distance of central points for each point. Wireless Picture9 Advanced Wireless Settings According to your environment , choose the corresponding work pattern:...
  • Page 19 Parameter of the wireless LAN RTS Threshold Request to Send Threshold. The packet size that is used to determine if it should use the CSMA/CD(Carrier Sense Multiple Access with Collision Detection)mechanism or the CSMA/CA mechanism for packet transmission. With the CSMA/CD transmission mechanism, the transmitting station sends out the actual packet as soon as it has waited for the silence period.

  • Page 20: Management

    Management Change Password Picture10 Change password You can use the Change Password page to change the Wireless Outdoor Bridge administrator's password for accessing the Settings pages. To change the password: 1 ˆType the old password. 2 ˆType a new password and type it again in the Repeat new password box to confirm it. Notice: Be sure to write it down in a secure location.
  • Page 21 Firmware Upgrade Picture11 Upgrade Firmware You can install a new version of the Wireless Outdoor Bridge's software using the Firmware Upgrade page. Warning: Once you click Upload do NOT interrupt the process of sending the software to the Wireless Outdoor Bridge and restarting the Wireless Outdoor Bridge. To upgrade the Wireless Outdoor Bridge software: 1 ˆDownload the new software.
  • Page 22 Warning: In some cases, such as a major upgrade, you may need to erase the configuration and manually reconfigure the Wireless Outdoor Bridge after upgrading it. Refer to the Release Notes included with the software to find out if you need to reconfigure the Wireless Outdoor Bridge.
  • Page 23 2 ˆLocate and select the previously saved backup file (by default, wg302.cfg). 3 ˆ Click Retrieve. A window appears letting you know that the Wireless Outdoor Bridge has been successfully restored to previous settings. The Wireless Outdoor Bridge will restart. This will take about one minute.

  • Page 24: Information

    Information Station List Picture13 Wireless Station List This page shows the Station ID, and MAC (Media Access Control) address for each Wireless Outdoor Bridge or client node associated with the Wireless Outdoor Bridge. Statistics Picture14 Statistics Página 24 de 27...
  • Page 25 This page displays both wired and wireless interface network traffic. Click Refresh to update the current statistics. Wired Ethernet This section displays traffic statistics for the wired Ethernet interface. Wireless This section displays traffic statistics for the Wireless interface. Página 25 de 27...

  • Page 26: Glossary

    Glossary The abbreviation of Access Point, refer in particular to the wireless access point. The abbreviation of Broadband Wireless Access Point, does not have the network bridge to refer in particular to broadband . IEEE 802.11 Include IEEE 802.11a/b/g ˜ Show that there is important information that reminds you with better using the Notice equipment.
  • Page 27 Copyright Orbitel Telecomunicações e Informática Ltda. 2005 SIG Quadra 03 Bloco B No. 99 Sala 101 Brasília – DF – Brasil – 70610-400 Tel: 55 61 341-4100 Fax: 55 61 341-4101 Email: comercial@orbitel.com.br Site: www.orbitel.com.br Página 27 de 27...
