- Page 1 INSTRUCTION MANUAL Bench Meter Bench Meter Bench Meter Bench Meter Bench Meter Mi 170 EC/TDS/NaCl/T EC/TDS/NaCl/T emperature emperature EC/TDS/NaCl/T EC/TDS/NaCl/T emperature EC/TDS/NaCl/T emperature emperature www.milwaukeeinst.com...
-
Page 2: Table Of Contents

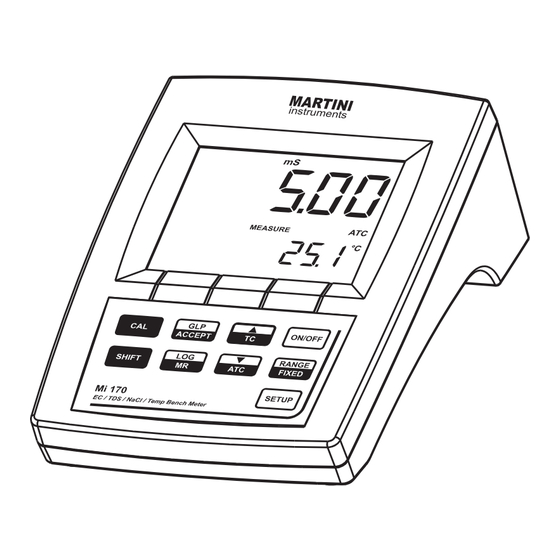

Instruction Manual Mi 170 Bench Meter GENERAL DESCRIPTION ..................... 4 FUNCTIONAL DESCRIPTION ..................2 SPECIFICATIONS ......................5 OPERATIONAL GUIDE ....................7 AUTORANGING ......................9 EC/TDS CALIBRATION ....................10 NaCl CALIBRATION ....................11 GOOD LABORATORY PRACTICE (GLP) ............... 13 LOGGING ......................17 SETUP ........................ - Page 3 www.milwaukeeinst.com FUNCTIONAL DESCRIPTION FRONT PANEL FRONT PANEL FRONT PANEL FRONT PANEL FRONT PANEL 1. Liquid Crystal Display (LCD) MARTINI 2. CAL key, to enter/exit calibration mode instruments 3. GLP/ACCEPT key, to display GLP data or to confirm value 4. SHIFT key, to select second key function 5.
-
Page 4: General Description
The temperature coefficient is user selectable. Mi 170 Mi 170 Mi 170 includes also GLP capability and data transfer to a computer through a RS232 Mi 170 Mi 170 or a USB port. -
Page 5: Specifications
www.milwaukeeinst.com SPECIFICATIONS Range 0.00 to 29.99 μS/cm 30.0 to 299.9 μS/cm 300 to 2999 μS/cm 3.00 to 29.99 mS/cm 30.0 to 200.0 mS/cm up to 500.0 mS/cm (uncompensated EC)* 0.00 to 14.99 mg/L (ppm) 15.0 to 149.9 mg/L (ppm) 150 to 1499 mg/L (ppm) 1.50 to 14.99 g/L (ppt) 15.0 to 100.0 g/L (ppt) up to 400.0 g/L (uncompensated TDS)* with 0.80 conversion factor... - Page 6 Instruction Manual Mi 170 Bench Meter Calibration 1 point slope calibration with 6 memorized solutions avail- able: 84.0 μS/cm, 1413 μS/cm, 5.00 mS/cm, 12.88 mS/ cm, 80.0 mS/cm, 111.8 mS/cm; 1 point offset calibration: 0.00 μS/cm NaCl 1-point, with MA 9050 calibration solution Temp 2-point, at 0 and 50 °C (32 and 122 °F)
-
Page 7: Operational Guide
www.milwaukeeinst.com OPERATIONAL GUIDE OPERATIONAL GUIDE OPERATIONAL GUIDE OPERATIONAL GUIDE OPERATIONAL GUIDE INITIAL PREPARATION INITIAL PREPARATION INITIAL PREPARATION INITIAL PREPARATION INITIAL PREPARATION Plug the 12 VDC adapter into the power supply socket. Connect the EC/TDS probe to the 7-pin connector. Make sure the probe sleeve is properly inserted and tighten the threaded ring. - Page 8 Instruction Manual Mi 170 Bench Meter Note Note Note Note Note: The compensation is referenced at the selected reference temperature (see SETUP for details, page 26). Automatic (ATC): The EC probe has a built-in temperature sensor; the temperature value is used to automatically compensate the EC/TDS reading (from -20.0 –...
-
Page 9: Autoranging
www.milwaukeeinst.com Notes Notes Notes Notes Notes: •If the reading is out of range, the full-scale value (100.0 for MTC/ATC mode or 400.0 for uncompensated TDS) will be displayed blinking. •If the SHIFT&RANGE/FIXED keys are pressed to freeze the LCD range and the reading goes out of range, the full-scale value of the frozen range will be displayed blinking. -
Page 10: Ec/Tds Calibration
Instruction Manual Mi 170 Bench Meter EC/TDS CALIBRATION EC calibration is a one-point procedure. Selectable calibration points are 0.00 μS for offset and 84.0 μS, 1413 μS, 5.00 mS, 12.88 mS, 80.0 mS, 111.8 mS for slope. Rinse the probe with calibration solution or deionized water. Immerse the probe into the solution. -
Page 11: Nacl Calibration
www.milwaukeeinst.com Press the GLP/ACCEPT key to confirm calibration. The instrument stores the calibration value and returns to measurement mode. Notes Notes Notes: Notes Notes •If the uncalibrated reading is too far from the expected value, the “WRONG” and “SOLUTION” tags will blink. Calibration can not be confirmed. In this case check if the correct calibration solution has been used. - Page 12 Instruction Manual Mi 170 Bench Meter reading is stable. When the reading is stable, the “READY” and “ACCEPT” tags will blink on the LCD. Press the GLP/ACCEPT key to confirm calibration. The instrument stores the calibration value and returns to measurement mode.
-
Page 13: Good Laboratory Practice (Glp)
www.milwaukeeinst.com GOOD LABORATORY PRACTICE (GLP) GLP is a set of functions that allows storage and retrieval of data regarding the maintenance and status of the electrode. All data regarding EC and NaCl calibration is stored for the user to review when necessary. - Page 14 Instruction Manual Mi 170 Bench Meter • The EC calibration solution on the primary LCD and the cell constant on the secondary LCD. • The EC calibration offset on the primary LCD. • The reference temperature on the primary LCD.
- Page 15 www.milwaukeeinst.com • The instrument ID. LAST LAST LAST LAST LAST NaCl NaCl NaCl NaCl NaCl CALIBRATION DATA CALIBRATION DATA CALIBRATION DATA CALIBRATION DATA CALIBRATION DATA Last NaCl calibration data is stored automatically after a successful calibration. To view the NaCl calibration data, press the GLP/ACCEPT key when the instrument is in NaCl measurement mode.
- Page 16 Instruction Manual Mi 170 Bench Meter • The salinity coefficient. • The temperature coefficient on the primary LCD, along with the temperature compensation mode as in EC GLP mode. • The reference temperature on the primary LCD as in EC GLP mode.
-
Page 17: Logging
www.milwaukeeinst.com LOGGING Up to 50 LOG samples can be stored into memory for each measurement range (EC, TDS and NaCl). LOGGING THE CURRENT DATA LOGGING THE CURRENT DATA LOGGING THE CURRENT DATA LOGGING THE CURRENT DATA LOGGING THE CURRENT DATA To store the current reading into memory press the LOG/MR key while in measurement mode. - Page 18 Instruction Manual Mi 170 Bench Meter If there are less than 6 memory locations remaining, the record number and “Lo” message will blink to alert the user. If the log space is full, “FULL LOC” message will be displayed and no more data will be saved.
- Page 19 www.milwaukeeinst.com Otherwise, the instrument will display the EC, TDS or NaCl value on the primary LCD and the temperature on the secondary LCD, along with last stored record number and “LOG” tag. Pressing the arrow keys, the instrument will display the same parameter but for a different record: Press the RANGE/FIXED key and the instrument will display the next logged parameter: •...
- Page 20 Instruction Manual Mi 170 Bench Meter • The date: month and day on the primary LCD and the year on the secondary LCD, along with “DATE” tag. • The time: hour and minutes on the primary LCD and the seconds on the secondary LCD, along with “TIME”...
- Page 21 www.milwaukeeinst.com • For TDS range: the TDS factor. • For NaCl range: the salinity coefficient. • The reference temperature.
- Page 22 Instruction Manual Mi 170 Bench Meter • The temperature coefficient and compensation mode. • The “dEL” message on the primary LCD and the record number on the secondary LCD, along with “ACCEPT” tag blinking. N o t e s N o t e s...
-
Page 23: Setup
www.milwaukeeinst.com SETUP Setup mode allows viewing and modifying the following parameters: • Cell Constant • TDS Factor • Temperature Coefficient • Reference Temperature • Current Time (hh:mm) • Current Date (MM.DD.YYYY) • Beep Status • Baud Rate (serial communication) • Instrument ID •... - Page 24 Instruction Manual Mi 170 Bench Meter Press the arrow keys to change the displayed value. Press the GLP/ACCEPT key to accept the value or the CAL key to escape. Press the arrow keys to select the next/previous parameter. Press the SETUP key to exit SETUP menu at any time.
-
Page 25: Temperature Calibration
TEMPERATURE CALIBRATION (for technical personnel only) The Mi 170 Mi 170 Mi 170 is factory calibrated for temperature. Mi 170 Mi 170 Martini’s temperature probes are interchangeable and no temperature calibration is needed when they are replaced. If the temperature measurements are inaccurate, temperature recalibration should be per- formed. -
Page 26: Ec Solutions Temperature Dependence
Instruction Manual Mi 170 Bench Meter EC SOLUTIONS TEMPERATURE DEPENDENCE The conductivity of an aqueous solution is a measure of its ability to carry an electrical current by means of ionic motion. The conductivity invariably increases with increasing temperature. It is affected by the type and number of ions in the solutions and by the viscosity of the solution itself. -
Page 27: Pc Interface
•Keep only one cable connected (RS232 or USB) during PC communication to avoid possible errors. Mi 5200 Mi 5200 •If you are not using Martini Instruments Mi 5200 Mi 5200 Mi 5200 software, please see the following instructions. SENDING COMMANDS FROM PC... - Page 28 Instruction Manual Mi 170 Bench Meter The instrument will answer for this command with: <STX> <answer> <ETX> where: <STX> is 02 ASCII code character (start of text) <ETX> is 03 ASCII code character (end of text) <answer>: <ACK> is sent for a recognized command <CAN>...
-
Page 29: Probe Maintenance
www.milwaukeeinst.com PROBE MAINTENANCE Rinse the probe with clean water after measurements. If a more thorough cleaning is required, remove the probe sleeve and clean the probe with a cloth or a nonabrasive detergent. Make sure to reinsert the sleeve onto the probe properly and in the right direction. -
Page 30: Troubleshooting
Instruction Manual Mi 170 Bench Meter TROUBLESHOOTING y l r b i l i l b s l i b i l y t l s l i b i l i l a b i l l l a y l t "... - Page 31 Damage due to accidents, misuse, tampering or lack of prescribed maintenance is not covered by the warranty. Milwaukee/Martini instruments reserves the right to make improve- Milwaukee/Martini instruments reserves the right to make improve- Milwaukee/Martini instruments reserves the right to make improve-...
- Page 32 THANK YOU FOR CHOOSING Sales and Technical Service Contacts: Milwaukee Electronics Kft. Alsókikötő sor 11. 6726, Szeged, Hungary Tel: +36-62-428-050 Fax: +36-62-428-051 e-mail: sales@milwaukeeinst.com Milwaukee Instruments, Inc. 2950 Business Park Drive Rocky Mount, NC 27804 USA Tel: +1 252 443 3630 Fax: +1 252 443 1937 e-mail: sales@milwaukeetesters.com www.milwaukeeinst.com...
