- Page 1 ® PosiTector Surface Profile Gage Quick Guide v. 1.0...

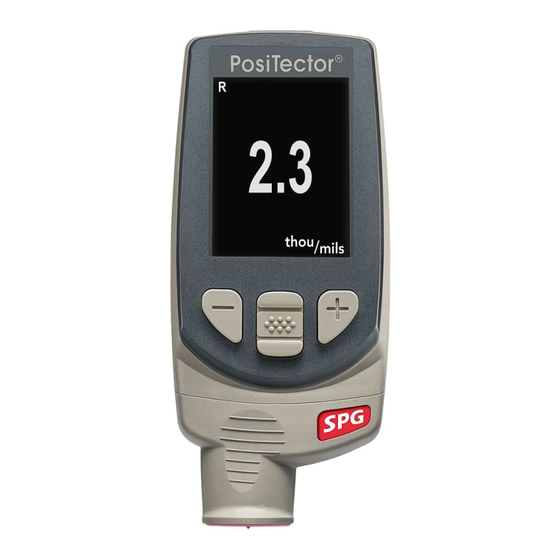

- Page 2 Introduction Introduction Quick Start The PosiTector SPG powers-up when the center navigation button is pressed. To preserve battery life, the instrument powers down after approximately 5 minutes of no activity. All settings are retained. 1. Remove the protective plastic cap from probe.
- Page 3 Probe Calibration Verification of Accuracy Zeroing the Instrument...
- Page 4 Glass Plate Zero Zero Factory Zero Zero NOTE: Setup Menu Setup Menu Reset Reset (soft reset) restores factory settings and returns the instrument to a known condition. The following occurs: - All batches, stored measurements, images, and batch names are erased. - The zero adjustment is returned to the factory setting.
- Page 5 Perform a more thorough Hard Reset by powering down the instrument, waiting several seconds, then simultaneously holding both the center and (+) buttons until the Reset symbol appears. This returns the instrument to a known, “out-of-the-box” condition. It performs the same function as a menu Reset with addition of: - Bluetooth Pairing info is cleared.
- Page 6 Memory Management Memory Management The PosiTector SPG can record readings in memory for printing to the optional Bluetooth wireless printer, transfer to a computer (pg. 6) or synchronizing with PosiTector.net. Readings are time- stamped as they are taken. Scroll through dis-...
- Page 7 Outputting Stored Readings Outputting Stored Readings USB mass storage - connect your PosiTector to a PC/Mac using the supplied USB cable to access and print stored readings and graphs. No software or internet connection required. PosiTector.net - a free web-based application offering secure centralized storage of thickness readings.
- Page 8 Updates Determines if a software update is available for your instrument. Must be connected to an internet connected PC running PosiTector Desktop Manager. See www.defelsko.com/update The instrument may perform a Hard Reset (pg. 4) after NOTE: updating. Returning for Service Returning for Service Before returning the instrument for service…...
