Hydrolevel VXT-24 Instructions

Programmable water feeder for steam boilers

Advertisement

Quick Links

Model VXT-24
Programmable
Water Feeder for
Steam Boilers
24 VAC Operating Voltage
U.S. Patent No. 6,688,329
SPECIFICATIONS
MAXIMUM FLUID
TEMPERATURE:
150°F
AMBIENT TEMPERATURE: 100°F
FLOW RATE:
1 GPM
MAXIMUM FEED:
10 Gallons (2 Cycles)
ELECTRICAL:
24 VAC, 60 HZ
Step 1
Warning
serious burns, the boiler should be thoroughly cooled
before installing or servicing control. Only qualified
personnel may install or service the control in accor-
dance with local codes and ordinances. Read instruc-
tions completely before proceeding.
We warrant products manufactured by Hydrolevel Company to
be free from defects in material and workmanship for a period
of two years from the date of manufacture or one year from
the date of installation, whichever occurs first. In the event of
any claim under this warranty or otherwise with respect to our
products which is made within such period, we will, at our
option, repair or replace such products or refund the purchase
price paid to us by you for such products. In no event shall
126 Bailey Road • North Haven, CT 06473 • Phone: (203) 776-0473 • F X: (203) 764-1711 • www.hydrolevel. om
• UNIVERSAL COMPATIBILITY: The VXT feeder can be used with virtually
any probe or float-type low water cut-off.
• FEED COUNTER: Brightly illuminated feed cycle counter displays the
amount of water added to the boiler – essential in diagnosing water loss
problems that can severely shorten the life of a steam boiler. Built-in mem-
ory prevents power interruptions from clearing the counter.
• PROGRAMMABLE FEED DELAY SETTINGS: Helps prevent flooded boilers.
Allows time for condensate to return to the boiler before starting feed
cycle – ensuring that additional water is needed.
• PROGRAMMABLE FEED AMOUNT SETTINGS: Six settings provide two
ways to feed: 1-5 gallon settings feed bove the Low Water Cut-Off to
restore boiler's normal operating level. Or, select LWCO setting to end the
feed cycle when the Low Water Cut-Off re-energizes the burner.
• UNDERFEED PROTECTION: If one feed cycle is not sufficient to restore
boiler operation, the VXT will delay and feed one additional cycle.
• LOCKOUT FLOOD PROTECTION: The VXT locks-out to prevent steam sys-
tem flooding and costly water damage if burner operation does not
resume after two consecutive feed cycles.
INSTALLATION
Step 2
WARNING – To
prevent electrical
shock or equipment
damage, power
must be off during
installation or ser-
vicing of the con-
trol. To prevent
Feeder must be installed with a manual by-pass. Use isolation valves and
unions to allow easy removal for service or replacement. Arrows on VXT
valve indicates direction of water flow.
IMPORTANT: It is important to prevent any contaminants from entering
the feed valve during or any time after installation. The feeder should be
installed with non-ferrous plumbing materials only to prevent rust from
contaminating the valve. Apply pipe compound sparingly. Remove and
clean the feed valve strainer after the first feed cycle to remove any conta-
minants that could have been introduced during installation. See Service /
Maintenance on page 4 for additional information.
LIMITED MANUFACTURER'S WARRANTY
Plumbing
Hydrolevel Company be liable for any other loss or damage,
whether direct, indirect, incidental or consequential. This war-
ranty is your EXCLUSIVE remedy and shall be IN PLACE OF
any other warranty or guarantee, express or implied, includ-
ing, without limitation, any warranty of MERCHANTABILITY or
fitness for a particular purpose. This warranty may not be
assigned or transferred and any unauthorized transfer or
assignment thereof shall be void and of no force or effect.

Advertisement

loading
Need help?

Need help?

Do you have a question about the VXT-24 and is the answer not in the manual?

Questions and answers

Charles
January 29, 2025

What is a code 72

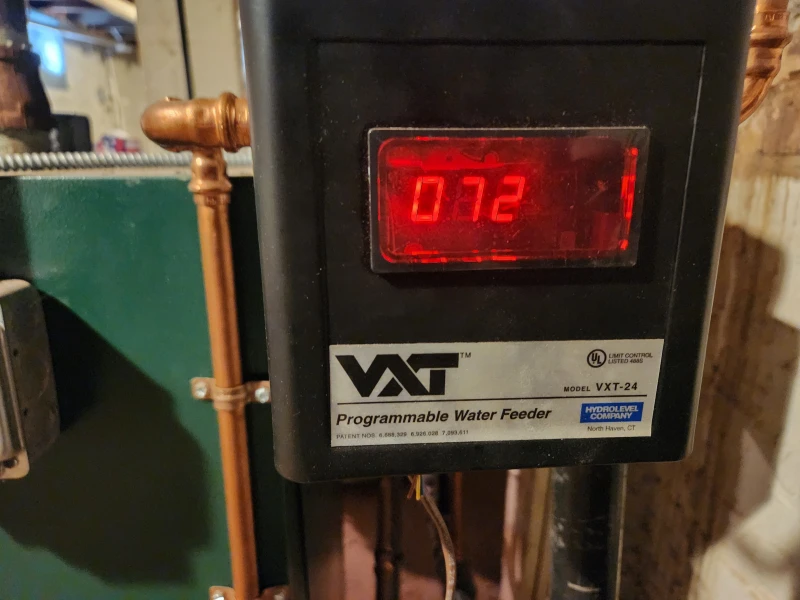

User image 67998112704b3
