Summary of Contents for PORSCHE DESIGN Book One
-

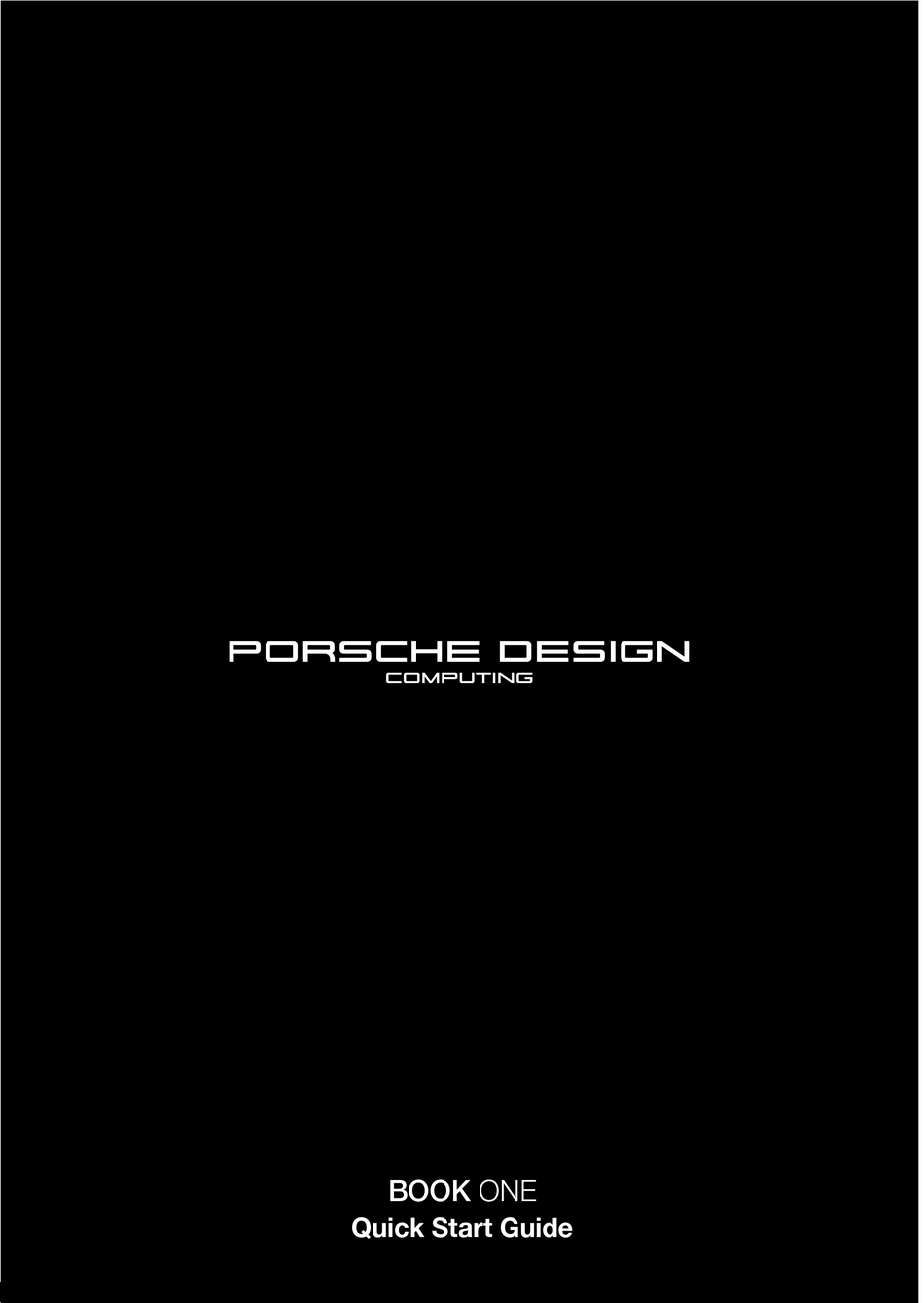

Page 1: Quick Start Guide

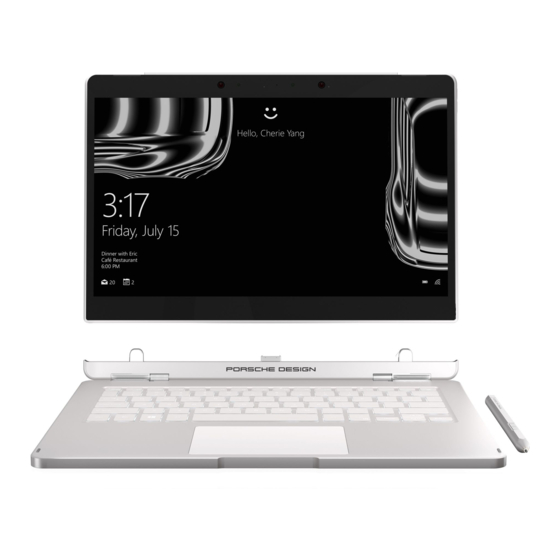

COMPUTING BOOK ONE Quick Start Guide... - Page 3 Welcome to Porsche Design! Get to know your new PORSCHE DESIGN BOOK ONE.
-
Page 4: Table Of Contents
Table of contents Table of contents Quick Start Guide The Quick Start Guide Description 2.1 Control elements 2.2 Ports 2.3 Further technical specifications 2.4 Accessories – stylus 2.5 Package contents First steps 3.1 Modes of use for the 2-in-1 laptop 3.2 Charging the 2-in-1 laptop 3.3 Setting up the 2-in-1 laptop Core basic functions... -
Page 5: The Quick Start Guide
The Quick Start Guide The Quick Start Guide is there to help you during the initial setup of your new 2-in-1 laptop. Along with that, it also provides information about the device’s basic features and functions. Please read the user’s manual to find out more about the device’s features, functions and options as well as get tips on how to work productively and creatively with the device. -
Page 6: Description
Description 2.1 Control elements Touch screen The 13.3" QHD+ IPS display delivers a resolution of 3200 x 1800 pixels at a 16:9 aspect ratio. The touch screen displays your chosen content (films, documents, websites etc.) and also allows you to precisely control and select apps, move items on the display and use your fingers to zoom in or out on content on the screen. - Page 7 Stereo speakers The 2 x 2 W stereo speakers are located in the upper left and right corners of the tablet. They direct the sound straight to the user to deliver impressive, top-rate sound quality. Antenna cover The modified material property of the antenna cover ensures proper and efficient operation of the dual-band WiFi and Bluetooth®...
- Page 8 Ventilation slots The ventilation slots help cool the device by providing for optimum heat transfer to ensure reliable operation. WARNING Do not cover these openings by placing the device on unsuitable surfaces such as on a bed, couch or carpet. Having a constant flow of air will help reduce the risk of fire.
- Page 9 Touchpad The touch-sensitive touchpad is used in place of a mouse. It offers both a left- and right-click function and also supports Windows 10 gesture control. For more information, see "Input options" – "Using the touchpad" in the user’s manual. Hinge The unique hinge mechanism enables the tablet to be rotated 360°.
-
Page 10: Ports
2.2 Ports USB Type-C™ port with USB 3.1 (Gen 2) and Thunderbolt 3 standard This universal interface allows you to connect a variety of USB peripheral devices (e.g., a mouse, printer, external hard drive, Ethernet adapter, smartphone etc.). It provides for ultra-fast data transfer rates of up to 10 Gbps with the USB 3.1 (Gen 1) standard and up to 40 Gbps with the Thunderbolt 3 standard. - Page 11 The Thunderbolt 3 standard also supports DisplayPort for use in audio and video transmission via cable. NOTICE The USB Type-C™ to HDMI adapter included with the laptop is ® connected here. For more information, see "Connecting other devices" in the user’s manual. Thanks to its support for Thunderbolt 3, the port, in combination with the enclosed USB Type-C™...
-
Page 12: Further Technical Specifications
Memory card slot In combination with microSD-HC/XC cards (available separately), the memory card slot is used to transfer data or for providing additional external memory (up to 512 GB). Audio port The 3.5 mm audio port is a bidirectional interface (audio out/mic in). This is where you connect an audio device (e.g., speakers, headphones etc.) to play music or a headset equipped with a microphone to take part in phone conferences. -
Page 13: Accessories - Stylus
2.4 Accessories – stylus The sleek, classic stylus combines a natural writing experience with the benefits of digital connectivity. The stylus can be used in any app that supports freehand input (for example, apps for drawing, Word, PowerPoint, OneNote and many others). For more information, see "Input options"... -
Page 14: Package Contents
2.5 Package contents • PORSCHE DESIGN BOOK ONE • USB Type-C™ to HDMI adapter (up to Ultra HD video quality) ® • USB Type-C™ power adapter (100 V – 240 V) • Stylus • AAAA battery • Cleaning cloth •... -
Page 15: First Steps
First steps You will now learn about the basic functions of your new 2-in-1 laptop. 3.1 Modes of use for the 2-in-1 laptop You can operate your 2-in-1 laptop in tablet or laptop mode. Laptop mode This is the standard mode as delivered. - Page 16 Tent mode In this mode, you can watch HD films and videos in comfort, for example. Tablet mode The detachable function of the 2-in-1 laptop allows you to remove the tablet unit. A low-pitched clicking sound is played and a white, open padlock icon appears at the centre of the lower edge of the tablet to indicate that the tablet has been unlocked...
-
Page 17: Charging The 2-In-1 Laptop
3.2 Charging the 2-in-1 laptop In the first step, fully charge your 2-in-1 laptop. Plug the UBS connector of the enclosed power adapter into one of the USB Type-C™ ports on the device. Now connect the power adapter to an outlet. NOTICE Once the power adapter is connected to a power source, the LED on the power adapter’s USB connector will light up and... -
Page 18: Core Basic Functions
Once you have fully completed the setup process, your device will be configured according to the settings you made and is ready for use. This process may take a while. Be patient and do not turn off the device until the configuration process is complete. Once your device is ready for use after the setup process, you will be shown the lock screen. -
Page 19: Start Screen
4.2 Start screen The icons located in the task bar on the start screen allow you to access a number of functions (including the Start menu [A | B]): Windows icon Use the Windows icon to open and close the Start menu [A | B] (also on the keyboard). - Page 20 Task View Press this icon to enable the Task View that shows all open programs including the "+ New Desktop" button for creating virtual desktops. Microsoft Edge Press this icon to open the Internet browser. Folder icon Press this icon to open Windows Explorer. Microsoft Store Press this icon to open Microsoft Store, where you can download additional apps.
-
Page 21: Switching On Wifi
Memo icon Press this icon to open the Action Center. The Action Center is a bar with quick links to some of the important functions of the device that you can either display or hide (for example, "All settings" etc.) NOTICE To open the Action Center, swipe your finger from the right edge of the screen towards the centre of the screen. -
Page 22: In The Event Of Technical Issues Or Defects
In the event of technical issues or defects Please enter the following information below in case this should be required: Serial number _____________________________ Purchase date _____________________________ Place of purchase _____________________________ Keep your proof of purchase. If your device is faulty or defective, please feel free to contact customer service at www.porsche-design-computing.com and arrange to be called back at a time that works best for you. -
Page 23: Copyright And Trademarks
Copyright and trademarks Porsche Design is a trademark of Dr. Ing. h. c. F. Porsche Aktiengesellschaft. Microsoft and Windows 10 are registered trademarks or trademarks of the Microsoft Corporation in the US and/or in other countries. Intel, the Intel logo, Intel Inside, Intel Core and Core Inside are trademarks of the Intel Corporation in the United States and/or other countries. - Page 26 The manufacturer hereby confirms that the PORSCHE DESIGN BOOK ONE device complies with the essential requirements and other relevant provisions of Directive 2014/53/EU. You can access the full EU Declaration of Conformity at www.porsche-design-computing.com QG-PD-V2-10-UK-EN-170223...
