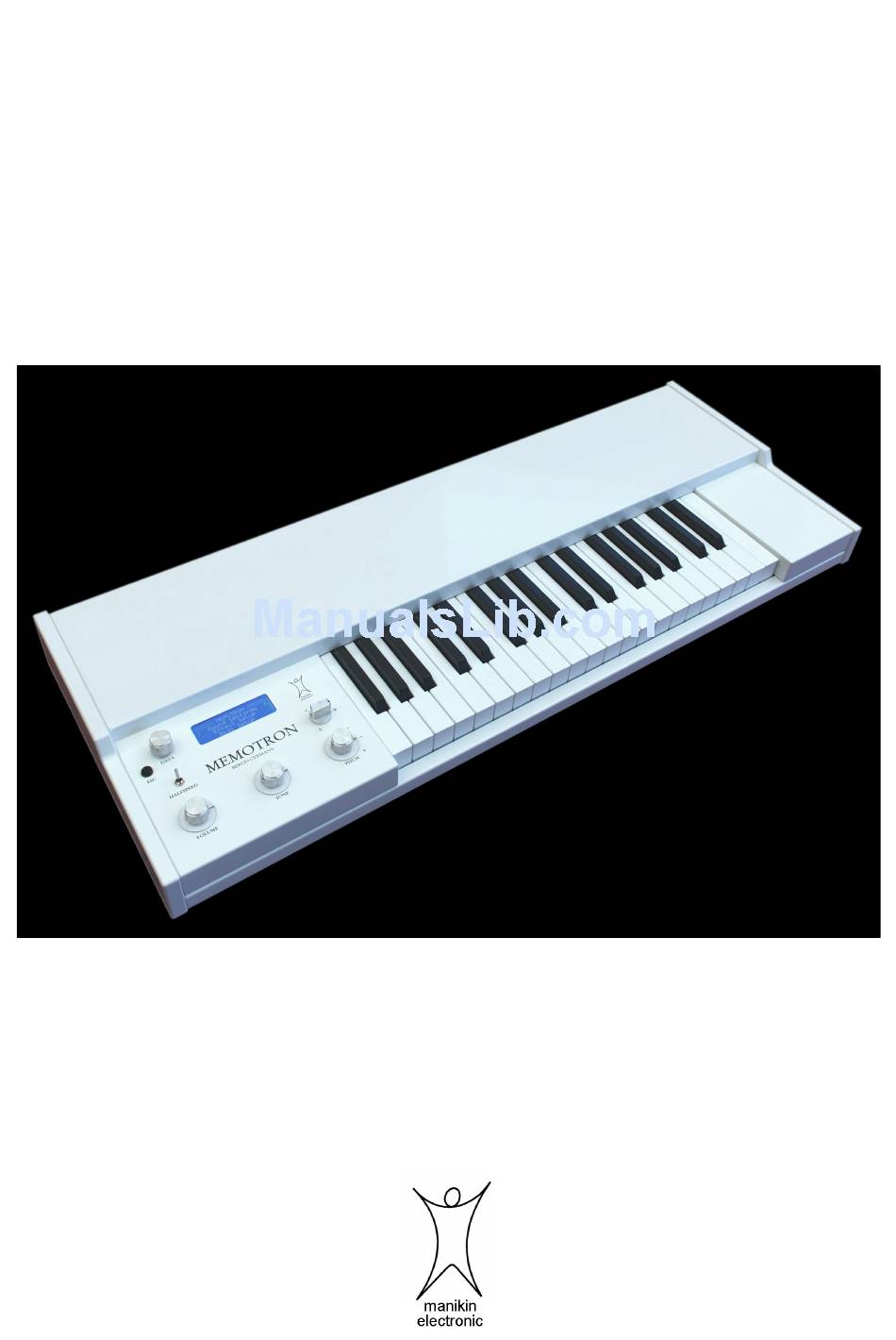

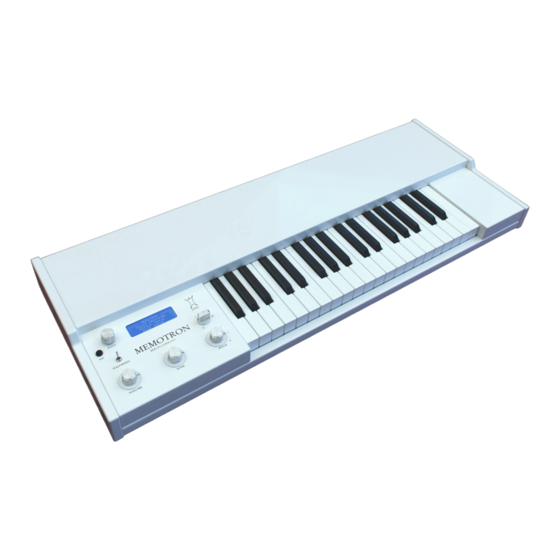

- Page 1 MEMOTRON OS v1.3 User Manual...
- Page 3 Thanks to latest digital technology, the Memotron m2k is easy to use and most reliable in every stage and studio situation. To become quickly familiar with the Memotron m2k’s capabilities, we recommend you to take a break and study (and internalize...) this manual first.
-
Page 4: Table Of Contents
Table of contents Introduction........................1 About this manual........................1 Symbols used........................1 Marking of parameters......................1 General safety instructions......................2 Suitable location.........................2 Mains connection........................2 Operation..........................2 Maintenance........................2 Proper use.......................... 2 Controls & Connectors....................3 Top............................3 Rear Panel..........................3 Setting Up........................4 Unpacking..........................4 Installation.......................... - Page 5 Effect Block 2: Modulation / Delay..................19 Effect Block 3: Reverb / Echo....................20 MIDI Setup........................21 Update.........................22 Appendix........................23 Product Support........................23 Technical data........................24 Disposal..........................24 MIDI Implementation Table....................26 Glossary..........................27...
-
Page 6: Introduction
(recognizable at the ending .cpt). The Memotron m2k is not compatible with the newer M-Tron Pro® plug-in. About this manual This manual is intended to make the first steps of using the Memotron m2k easier for you. Moreover it also provides support and hints to the experienced user for his/her daily work. -
Page 7: General Safety Instructions
This device is exclusively intended for creating audio signals and creating / processing control signals according to the MIDI standard. Any other use is not permitted and will exclude any warranty claims towards Manikin Electronic. Memotron m2k OS v1.3 User Manual... -
Page 8: Controls & Connectors
MIDI-Data input jack MIDI Out: MIDI-Data output jack MIDI Thru: Data coming in on MIDI-In jack is transmitted to the MIDI-thru jack AC In: Power supply socket (110V – 240VAC & 50Hz / 60Hz) Memotron m2k OS v1.3 User Manual... -
Page 9: Setting Up
We recommend to keep the original box for further transportation – or better – purchase a suitable case. Installation Set up the Memotron m2k on a clean and smooth pad. For this purpose four stable feet are provided underneath the Memotron m2k. -
Page 10: Basic Operation
Basic Operation Power On Push the Power switch on the rear to switch on the Memotron m2k. The Memotron m2k will need some seconds to initialize and will then be ready for use. Attention – First power ON the Memotron m2k and then power ON your audio system in order to avoid a cracking noise. -
Page 11: Menu-Driven Functions
Menu-driven Functions All other functions of the Memotron m2k are controlled via the menus with the help of the display and the DATA knob. These functions are: Load, save and delete frames (sound selection and effect settings) in the Frame Menu ... - Page 12 The menu overview shows all menu-driven functions of the Memotron m2k. Memotron m2k OS v1.3 User Manual...
-
Page 13: Track Menu
Track Menu The Memotron m2k makes use of sound sample data (here called tracks) that can be stored in and loaded from the internal memory. Up to three tracks can be selected and played in the Memotron m2k. Selecting Tracks With the DATA knob you navigate through the menu levels to the Sound Settings. -
Page 14: Frame Menu
Loading Frames If you want to load a frame, first make sure that the desired memory card is in the Memotron m2k. If this is not the case, please insert the appropriate SD card into the card slot on the rear panel. -
Page 15: Saving Frames
Saving Frames If you want to save a frame, first make sure that there is the desired memory card in Memotron m2k. If this is not the case, please insert the appropriate SD card into the card slot on the rear panel. -
Page 16: Deleting Frames
ESC key to return to the Frame Menu. When you select "Yes", the frame is initialized. After the initialization, the system returns to the Sound Settings. The initialization of a Frame can not be undone!!! Memotron m2k OS v1.3 User Manual... -
Page 17: Internal Mem
Sound Collection or more tracks, then please see the "Importing Directories" section. To import a single track into the internal memory of Memotron m2k, go first to the "Internal Mem" menu. By selecting the menu item "Import Track", you change to the file system of the external memory card. -
Page 18: Importing Directories
Importing Directories If all tracks of a sound collection shall be imported to the internal memory of Memotron m2k, the function "Import Dir" is very useful. With this function, all tracks within a directory can be imported from an external memory card to the internal memory of the Memotron m2k. -
Page 19: Deleting The Internal Memory
Deleting the Internal Memory This feature deletes the Memotron m2k's entire internal memory. To do this, switch to the "Internal Mem" menu and select the menu item "Delete All". The internal memory can be deleted after confirming a confirmation prompt. To cancel the operation, select "No"... -
Page 20: Sound Settings
Pushing the DATA knob again, will confirm the value changes and by turning the DATA knob, another parameter can be selected for tailoring. By pressing the ESC button, you can leave the Sound Settings and return to the main menu. Memotron m2k OS v1.3 User Manual... -
Page 21: Blending Tracks (Mix)
Blending Tracks (Mix) The Memotron m2k offers the possibility to blend three tracks. To control the blending effect, you can use the ABC Controller of the Memotron m2k or the modulation wheel of a connected master keyboard. By default, the cross-fading of the tracks is initially configured that position A of the ABC Controller is assigned to Track A, position B to Track B and position C to Track C. -
Page 22: Positioning Tracks
Like Track B, Track C is limited to 12 playable sounds from "C 4" to "H 4"(= B 4). With a connected keyboard, the sound can thus be played one octave higher from "C 4" to "H 4"(= B 4). Track C also is not fully visible due to restricted space. Memotron m2k OS v1.3 User Manual... -
Page 23: Effect Setup
Effect Setup The Memotron m2k has a digital effects section which enhances its tonal expressiveness a lot. In addition, the Memotron m2k is largely independent (especially on stage) from external effects devices. The effect section consists of three successive effect blocks: the Amplifier Modeling Effect block, a Modulation / Delay effect block and a Reverberation / Echo effect block. -
Page 24: Effect Block 2: Modulation / Delay
Time 0 … 127 Delay time: 0= ~1ms to 127= ~150ms Feedback 0 … 127 Feedback amount: 0= 0% to 127= 100% HiDamp 0 ... 127 High frequency damping: 0= 0% to 127= 100% Memotron m2k OS v1.3 User Manual... -
Page 25: Effect Block 3: Reverb / Echo
OFF / ON deactivates / activates this effect block Prog Short Room A … St. Tri Echo selects one of 26 effect algorithms Send 0 ... 127 adjusts the effect amount in the output signal Memotron m2k OS v1.3 User Manual... -
Page 26: Midi Setup
MIDI Setup The MIDI Setup controls all functions that are used to play the Memotron m2k from a suitable external MIDI device (e.g. a master keyboard or a MIDI sequencer such as the Manikin Schrittmacher). The following parameters can be edited: Rx Channel 1 ... -
Page 27: Update
Update To keep the Memotron m2k on the latest technical level, Manikin Electronic will launch operation system updates from time to time. These updates can easily be installed from a memory card. The operation is basically no different from loading a Frame. -
Page 28: Appendix
+49 (0) 30 – 63 49 49 51 3. Send us a letter. Manikin Electronic Lipaer Straße 5 12203 Berlin Germany 4. In very urgent cases, call us. +49 (0) 30 – 63 49 49 50 Memotron m2k OS v1.3 User Manual... -
Page 29: Technical Data
Council and is thus free of lead, mercury, cadmium and hexavalent chromium. Nevertheless this product is special waste and shall not be disposed in ordinary household waste!!! For disposal, please contact your local dealer or Manikin Electronic Lipaer Straße 5 12203 Berlin Germany Memotron m2k OS v1.3 User Manual... - Page 30 Other Standards (Rest of World) This product complies with the radio frequency interference requirements of the Council Directive 89/336/EC. Cet appareil est conforme aux prescriptions de la directive communautaire 89/336/EC. Dette apparat overholder det gaeldenda EF-direktiv vedrørendareadiostøj. Memotron m2k OS v1.3 User Manual...
-
Page 31: Midi Implementation Table
: Active Sense : Reset : All Sound OFF Notes Mode 1: OMNI ON, POLY Mode 2: OMNI ON, MONO o: Yes Mode 3: OMNI OFF, POLY Mode 4: OMNI OFF, MONO x: No Memotron m2k OS v1.3 User Manual... -
Page 32: Glossary
Data system Hierarchical structure within an electronic storage medium, organizing data in drives, folders and files. Effect Algorithm A software-based process to generate a certain kind of sound processing. The Memotron m2k offers the following different effect algorithms: – Hall: Simulation of a big room / environment –... - Page 33 Low pass Filter A filter that alters a sound by attenuating its high frequencies. Track In the Memotron m2k, it denotes one of three independent memory areas into which sound data can be loaded. Sound Settings In this menu, frames can be loaded and saved. Further tracks can be selected and the associated sound parameters can be set.
