Summary of Contents for Sirona NITRASEAL

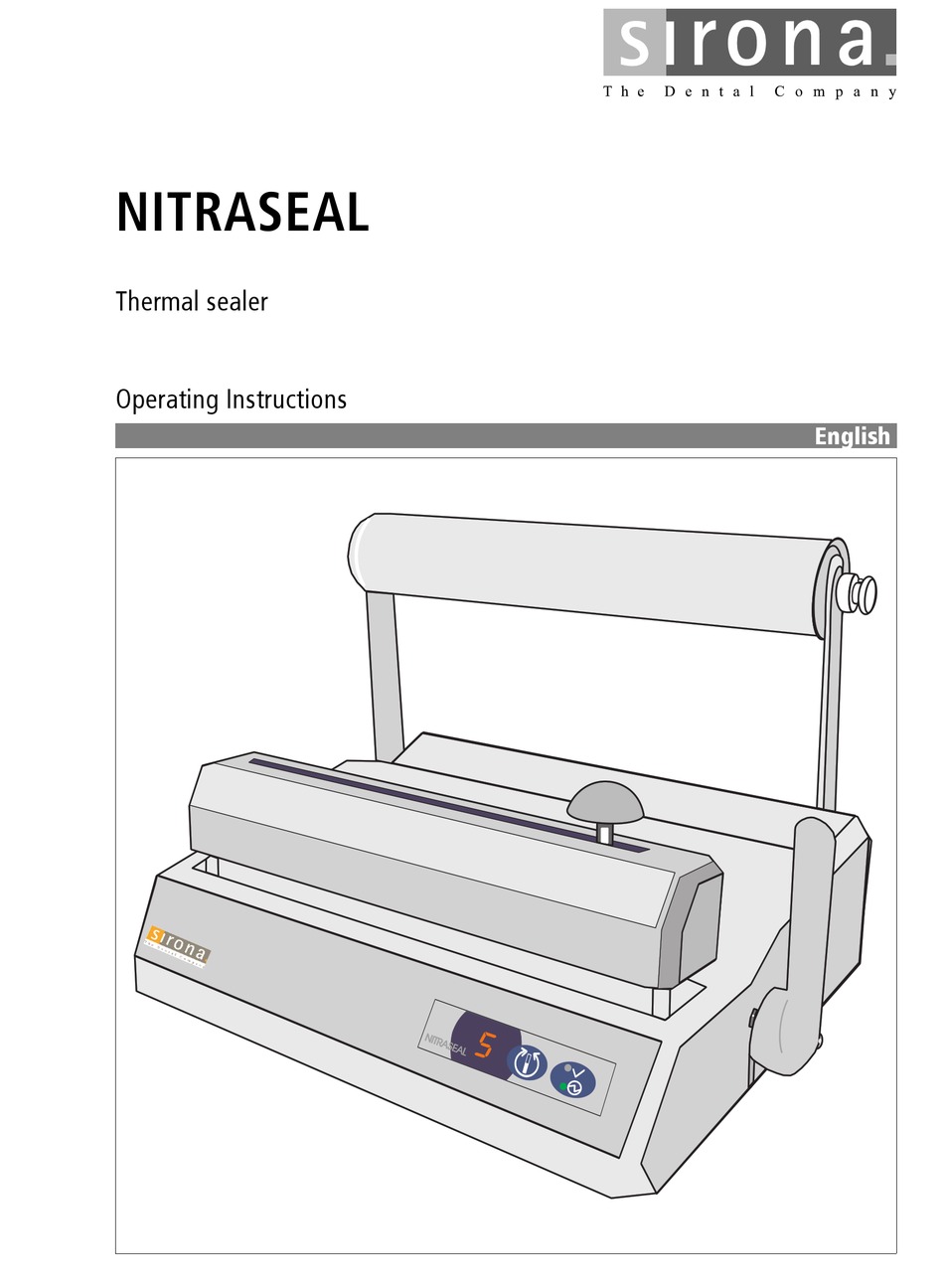

- Page 1 kfqo^pb^i qÜÉêã~ä=ëÉ~äÉê léÉê~íáåÖ=fåëíêìÅíáçåë båÖäáëÜ...
- Page 2 Sirona Dental Systems GmbH Operating Instructions NITRASEAL General information Dear customer, We thank you for purchasing your NITRASEAL Thermal sealer from the Sirona company. The technical documentation supplied is also part of the product. You should always keep this documentation within reach.
-
Page 3: Table Of Contents
Operating Instructions NITRASEAL Contents Warning and safety information ................Technical data ......................Familiarisation ......................Devices used in the NITRASEAL Thermal Sealer Model provided with digital adjustment..................... Dimensions ............................Installation ........................10 Preliminary information ........................10 To install the equipment follow these Instructions ................10 Operation ........................ -
Page 4: Warning And Safety Information
It is recommended to use good quality paper and propylene material. The paper surface (more po- rous) must allow the vapour exit. The NITRASEAL envelopes has been widely tested in order to give the best results both for quality and durability. - Page 5 Consult your supplier to work out this pro- blem. Safety information Before using Your NITRASEAL Thermal Sealer, read these safety instructions carefully. Non-compliance with these standards could cause incidents or damage to the appliance.
-
Page 6: Technical Data
2 Technical data Sirona Dental Systems GmbH Operating Instructions NITRASEAL Technical data Net weight 10 kg Power supply 230 V/50 Hz Power 200 W Fuse 5 x 20 4A T CE mark 61 79 761 D 3367 D 3367.201.02.01.02... -
Page 7: Familiarisation
Sirona Dental Systems GmbH 3 Familiarisation Operating Instructions NITRASEAL 3.1 Devices used in the NITRASEAL Thermal Sealer Model provided with digital adjustment Familiarisation Devices used in the NITRASEAL Thermal Sealer Model provided with digital adjustment Main features • 12 mm sealing, standard-compliant •... -
Page 8: Dimensions
3 Familiarisation Sirona Dental Systems GmbH 3.2 Dimensions Operating Instructions NITRASEAL Back NITRASEAL 14 15 ON/OFF switch Fuse holder Power cable Dimensions Package dimensions and weight Width 400 mm Depth 500 mm Height 250 mm Gross weight 10,7 kg External dimensions... - Page 9 Sirona Dental Systems GmbH 3 Familiarisation Operating Instructions NITRASEAL 3.2 Dimensions Dimensions of the model complete with roll-holder and roll Width 435 mm Depth 310 mm Height with roll- 330 ÷ 430 mm holder and roll 61 79 761 D 3367...
-
Page 10: Installation
4.1 Preliminary information Operating Instructions NITRASEAL Installation Preliminary information The NITRASEAL thermal sealer has been tested at the factory. On receiving the sealer control that the packing is whole and keep it in case it should be shipped. Open the packing and control that the delivery cor- responds exactly to the technical specifications and that no apparent damage is present. -
Page 11: Operation
Sirona Dental Systems GmbH 5 Operation Operating Instructions NITRASEAL Operation Connect the power supply cable of the NITRASEAL Thermal Sealer to a mains socket after having che- cked the electrical requirements reported on the la- bel. Turn on the equipment by the power switch placed on the back side;... - Page 12 5 Operation Sirona Dental Systems GmbH Operating Instructions NITRASEAL CAUTION the yellow indication will stay on for about 3 or 4 seconds at the end of the sealing. This pause is necessary to avo- id overheating: during this time it is not possible to carry out another sealing.
-
Page 13: Adjustments
Sirona Dental Systems GmbH 6 Adjustments Operating Instructions NITRASEAL Adjustments The NITRASEAL Thermal Sealer does not usually require any adjustment. Because of variety of envelopes and bags on the mar- ket, the equipment is provided with a device for the tem- perature adjustment. -
Page 14: Troubleshooting
Use only and exclusively original sare parts and apply to an authorised technical service centre Sirona Dental Systems GmbH is not responsible for any faults or damage caused by appliances tampered with by non authorised personnel or in case of fault of parts that are not original. -
Page 15: Alarms
8 Alarms Operating Instructions NITRASEAL Alarms NITRASEAL Thermal Sealer is equipped with a signal- ling system that uses acoustic and visual indications to alert the operator and simplify the service activity. In case of alarm both the yellow and green indicators will flash. - Page 16 tÉ=êÉëÉêîÉ=íÜÉ=êáÖÜí=íç=ã~âÉ=~åó=~äíÉê~íáçåë=ïÜáÅÜ=ã~ó=ÄÉ=êÉèìáêÉÇ=ÇìÉ=íç=íÉÅÜåáÅ~ä=áãéêçîÉãÉåíëK «=páêçå~=aÉåí~ä=póëíÉãë=dãÄe=OMMTJOMMV péê~ÅÜÉW=ÉåÖäáëÅÜ= mêáåíÉÇ=áå=dÉêã~åó a=PPSTKOMNKMOKMNKMO===MPKOMMV ûKJkêKW= MMM=MMM fãéêáã¨=Éå=^ääÉã~ÖåÉ páêçå~=aÉåí~ä=póëíÉãë=dãÄe áå=íÜÉ=rp^W áå=`~å~Ç~W SN=TV=TSN=a=PPST c~Äêáâëíê~≈É=PN páêçå~=aÉåí~ä=póëíÉãë=ii` páêçå~=`~å~Ç~ lêÇÉê=kç SQSOR=_ÉåëÜÉáã QUPR=páêçå~=aêáîÉI=pìáíÉ=NMM PORM=oáÇÖÉï~ó=aêáîÉ=J=råáí=R dÉêã~åó `Ü~êäçííÉI=k`=OUOTP jáëëáëë~ìÖ~I=låí~êáç=iRi=RvS ïïïKëáêçå~KÅçã `~å~Ç~...
