Thank you for your purchasing. Before you use the product, please read the instruction
manual carefully and save for futher reference.
Manufacturer: Shanghai Xiaoyi Technology Co., Ltd.
Address: 6F, Building E, No.2889, Jinke Road, Shanghai, China.
Tel: +86-21-6165 6722

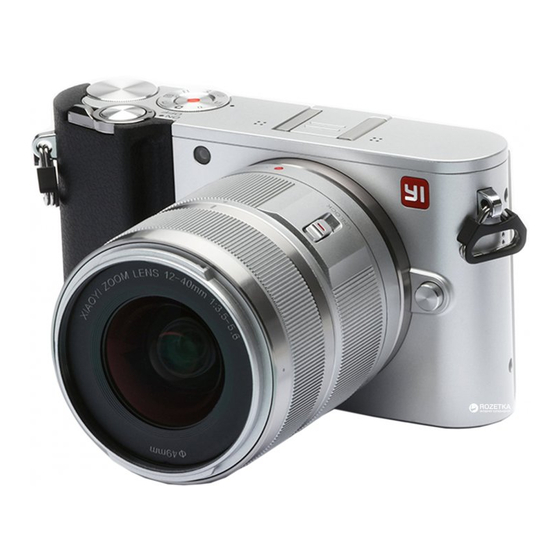

YI-M1 Mirrorless Digital Camera User Manual
http://www.yitechnology.com
Advertisement
Table of Contents
Related Manuals for YI M1
Summary of Contents for YI M1
- Page 1 Thank you for your purchasing. Before you use the product, please read the instruction manual carefully and save for futher reference. Manufacturer: Shanghai Xiaoyi Technology Co., Ltd. Address: 6F, Building E, No.2889, Jinke Road, Shanghai, China. Tel: +86-21-6165 6722 YI-M1 Mirrorless Digital Camera User Manual http://www.yitechnology.com...
-
Page 2: Table Of Contents
Driver modes 5). Watch videos Driver Modes Single, Continuous, Timer (2s, 10s) Continuous Speed 5fps 9. Connect YI Mirrorless App to YI-M1 Mirrorless Digital Camera Color Color Modes Standard, Portrait, Vivid, B&W, High-contrast B&W Auto, Sunny, Shadow, Cloudy, 10.Safety precautions... -
Page 3: Contents Of Package
1. Contents of Package 2. Parts of the Camera Control dial Mode dial Shutter button ON/OFF button Hot shoe Strap eyelet AF Assistant Camera body×1 Body cap×1 Microphone illuminator (attached) Lens attachment indicator Speaker Image sensor Lens lock pin Lens release button Lens attach point Lens cap×1 Lens×1... -
Page 4: Getting Started
3. Getting Started 1. Inserting the Battery Hot shoe Gently slide the battery-chamber latch to open. Insert the battery contacts first in the direction shown by the arrow. Close the cover and latch the chamber. Strap eyelet LCD Monitor USB card Solt Cover 2. -
Page 5: Charge The Battery
2) Removing the lens 5. Attaching the strap Press the lens release button while rotating the lens in the direction of the arrow. Untighten the screw Insert one side of the strap go through the eyelet. 4. Charging the Battery You can use the USB cable to charge via adapter or PC. -
Page 6: Powering The Camera On And Off
4. Powering the camera on and off 5. Setting the Date and Time 1. Powering on Menu display [Basic settings] [ Date and time] Turn On/Off dial Clockwise. - Swipe right on the LCD monitor - Find [Basic settings] - Select [Basic settings] - Select [Date and time] sub-menu Basic settings Date and time... -
Page 7: Select Shooting Mode
Record videos. Exposure compensation: Press the exposure compensation button, then rotate the control dial to set the compensation value. Download composition templates from YI Mirrorless App to create Master Guide high-quality images just as you are having a master by your side 4) Press the shutter button all the way down to take a picture. -
Page 8: Record Videos
8. Image/Video Playback 2. Record videos 1) During the display of Live View screen, select the video button on the mode dial to record video. 1. View/edit still pictures Set the parameters to your preference with [Video Setting] in advanced. 1) Press the button to view/edit pictures/videos. -
Page 9: Enlarged View
5. Watching videos 1) Press the button to watch videos. You can press the playback button to pause, drag the slider to fast forward or backward, or drag the volume slider to adjust the volume. 00:00:00 Pause 3. Enlarged view Volume In playback mode, turn the control dial clockwise to enlarge the view. -
Page 10: Connect Yi Mirrorless App To Yi-M1 Mirrorless Digital Camera
Accessories--For your safety, and to avoid product damage, use only accessories recommended by YI. 2. How to connect YI-M1 Mirrorless Digital Camera to YI Mirrorless App (iOS), only necessary Humidity--To avoid the product being damaged by high humidity, it is advised to place this one time: product in de-humidifing storage. -
Page 11: Safety Precautions
10. Safety precautions 11. Wireless functions 1.Handling the camera 1. Frequency: 2.412-2.462 GHz Equivalent isotropic radiated power: Antenna gain＜10dBi≤100mW or≤20dBm 1) Do not use the camera near flammable or explosive gases. Maximum power spectral density: Antenna gain＜10dBi≤10dBm/MHz(EIRP) Carrier 2) Do not use or store the camera in dusty or humid environments. frequency tolerance: 20ppm 3) Do not point the flash and LED (including AF illuminator) to people (infants, children, etc.) Band emission power: (outside 2.412-2.462 GHz band) ≤-80dBm/Hz(EIRP)spurious emission... - Page 12 This device complies with Part 15 of the FCC Rules / Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Le pr é...
