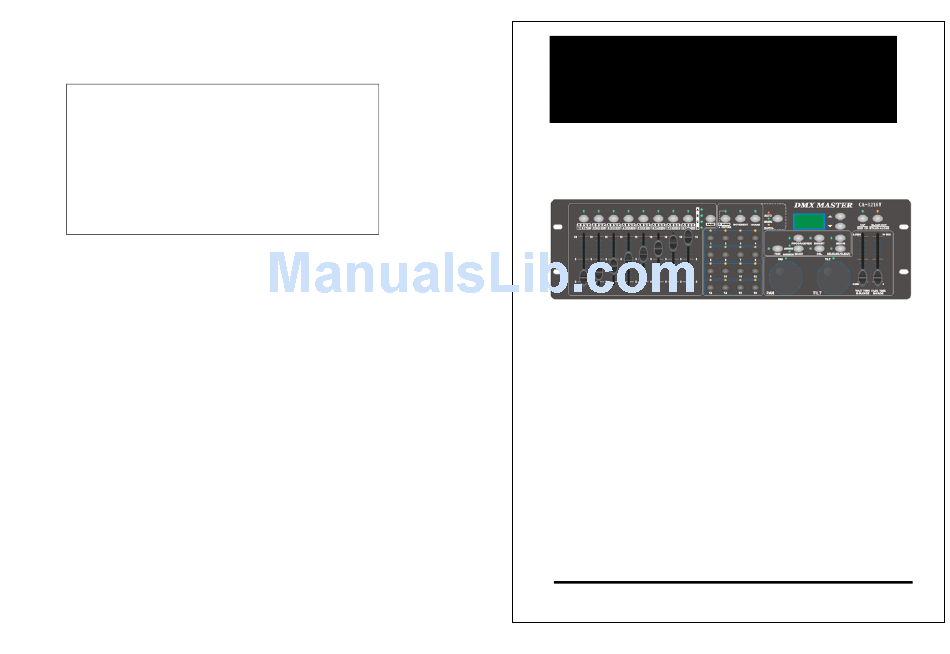

Technical Specification:
Power Input ...........................................DC 9V, 300 mA min.
DMX Output ................................................3 pin female XLR
MIDI Signal ........................................5 pin standard interface
Audio Input ...........................By built-in microphone or line in
Dimensions................................................... 482x132x73mm
Weight........... ............................................................. 2.5 kg
Innovation , Quality , Performance
19 A

DMX MASTER





Professional Lighting Technology



























CA-3216W












Please read these instructions carefully before use
User Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CA-3216W and is the answer not in the manual?

Questions and answers

Summary of Contents for DMX MASTER CA-3216W

  • Page 1 Technical Specification:   DMX MASTER           Power Input ........…….DC 9V, 300 mA min. Professional Lighting Technology   DMX Output ..........3 pin female XLR   MIDI Signal ........5 pin standard interface   Audio Input ......By built-in microphone or line in  ...
  • Page 2                                                                                  ...

  • Page 3: Table Of Contents

      MOVEMENT   CHASE NUMBER BUTTON1 CONTENTS NUMBER BOTTON2                                                                 NUMBER BOTTON3 NUMBER BOTTON4 NUMBER BUTTON 5...

  • Page 4: Features

    MIDI IN Hold MIDI IN and DOWN button at the same time to enter into MIDI IN mode. The CA-3216W is under the 1. Features control of the external MIDI signal when enter into the MIDI IN mode. A. 512 DMX channels MIDI IMPLEMENTATION B.

  • Page 5: Overview

    USB memory, if you press the bright button, the before file will be replaced. You should choose the button which the LED indicator is not bright. It will save in the filename of “CA-3216W” (before use, you should create one file called “CA-3216W”, or you cannot save successfully) Upload...

  • Page 6: Rear View

    16. PROGRAM/REC Button Activates Program mode or Record scenes/chases 17. Insert Button Add a step to a chase 18. MIDI IN Receive MIDI signal 19. RELEASE/CLEAR Clear out the output for faders or clear all the outputs or Reverse mode 20.

  • Page 7: Program Enable

    Before running the MOVEMENT, you should setting the Assign/Reverse DMX channels first. Step 002 The 2nd step of a chase Data 151 DMX value(000-255) WT: 1M36S The current Wait Time is 1 minute and 36 seconds TP: 5.32S The time of the last two taps is 5.32 seconds FT: 10.5S Fade Time is 10.5 seconds ASS 07 08...

  • Page 8: 4-2.2 Scanner Copy

    2. Hold BLACK OUT button for 3 seconds till the BLACK OUT /STAND ALONE button light up. 3. Hold down the fixture 1 button and then press for 3 seconds to enter Stand-Alone mode. The LCD Note: After finishing the current programming operation, you can hold RELEASE/CLEAR button to display will show “STAND ALONE”...

  • Page 9: 4-3.1 Insert A Step

    set). 4-4.3 Delete a fixture of DMX channels 1. Press PROGRAM/REC button to enter program mode. 1. Press PROGRAM/REC button to enter program mode. 2. Hold the FINE and MODE button at the same time till to enter into Assign or Reverse mode 2.

  • Page 10: 4-3.2 Delete A Chase

    That means you have stored the operation successfully. 5. Tap the PAGE Select button to select Page A or Page B or Page C or Page D. Note: After finishing the current programming operation, you can hold RELEASE/CLEAR button to clear all the output before next step operation.
