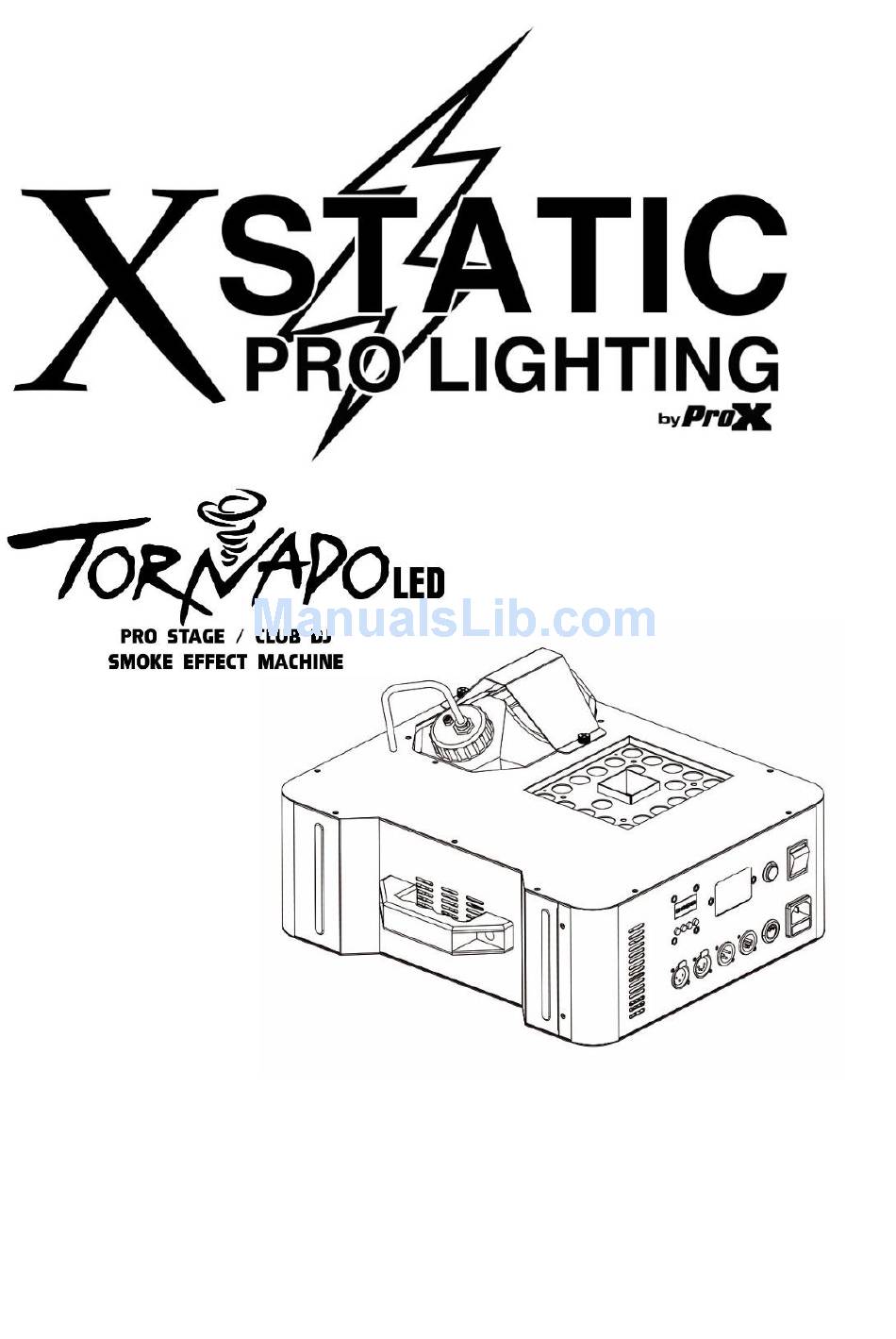

- Page 1 X-TORNADO LED FOG MACHINE USER MANUAL...
- Page 2 Introduction: Congratulations, you have just purchased Xstatic Pro Lighting Tornado LED, one of the most reliable LED fog machines on the world today! The Tornado LED fog machine have been designed and engineered to perform reliably for years when the guidelines in this booklet are followed.
-
Page 3: Safety Notifications
Electrical and Control: Power Supply: Before plugging your Xstatic Tornado Fog Machine unit in, be sure the supply voltage is 120V AC 60 Hz. Because line voltage may vary from venue to venue, you should test the outlet for proper voltage and ground before attempting to operate your fixture. -
Page 4: Technical Specifications
& screws and move to top of machine, reinstall screws so that the tank remains right-side up. See below for the mounting diagram. Note: Please remove the fog juice from the tank before doing this. Page 3 of 12 XStatic Pro Lighting Tornado LED Fog Machine Manual... -
Page 5: Readout Functions
”on”--turn on W-8 controller "off”--turn off W-8 controller function When in any submenu, after 6 seconds of no operation, the submenu will revert back to main menu and save current setting date Page 4 of 12 XStatic Pro Lighting Tornado LED Fog Machine Manual... -
Page 6: Operation
Operation: Plug the Tornado LED Fog Machine to 120V AC. The device need few minutes for preheating. It will display UP when heating, and tank LED glow red at that time. When it has reached the operational temperature and ready to fog, it will display READY and tank led glow blue at this time Note: When there is no fog fluid in tank, the display board will flashing and show no oil and at the same time the tank LED (Red+Blue) is flashing. -
Page 7: Wireless Remote Operation
Timer Remote (Optional, Not included) SKU# X-TornadoTimer The Timer Remote enables you to control the fog output of your X-Tornado LED fog machine. Interval and duration of fog output are controlled by two potentiometers. The remote also features On/Off, Continuous Fog, and Manual Control buttons. - Page 8 The Xstatic Tornado Fog Machine can be controlled via DMX-512 protocol. The Xstatic Tornado Fog Machine has 5 DMX channel modes. The DMX address is set on the back panel. Your DMX controller may have a standard 5-pin (or 3-pin) XLR connector for data output and the Xstatic Tornado Fog Machine has both 5 pin and 3 pin DMX connections for compatibility across platforms.
-
Page 9: Dmx Mode
Blue 0 to 100% 0-255 Amber 0 to 100% Strobe Effect Off 1-255 Strobing Slow/Fast 0-255 Smoke output 0 to 100% Color RGBA will not work unless fog is active! Page 8 of 12 XStatic Pro Lighting Tornado LED Fog Machine Manual... - Page 10 5. Warranty services is provided at no cost for labor or parts. Service outside of the warranty period or for damaged product will be charged at standard shop rates plus parts. (Shipping to and from service center not included) Page 9 of 12 XStatic Pro Lighting Tornado LED Fog Machine Manual...
- Page 11 Purchase Notes: Date of Purchase: ___________________________________ Dealer Name: ______________________________________ Dealer Contact: _____________________________________ Dealer Phone:_______________________________________ Date of Registration:__________________________________ Page 10 of 12 XStatic Pro Lighting Tornado LED Fog Machine Manual...
- Page 12 Find your dealer on our website to ask about more Innovative products from… 901 Essex Street, Brooklyn, NY 11298 Voice 718.237.2299 – Fax: 718.237.2318 Email: info@proxdirect.com (NO DIRECT SALES, DEALERS AND DISTRIBUTORS ONLY) Register your products on ProXDirect.com...
