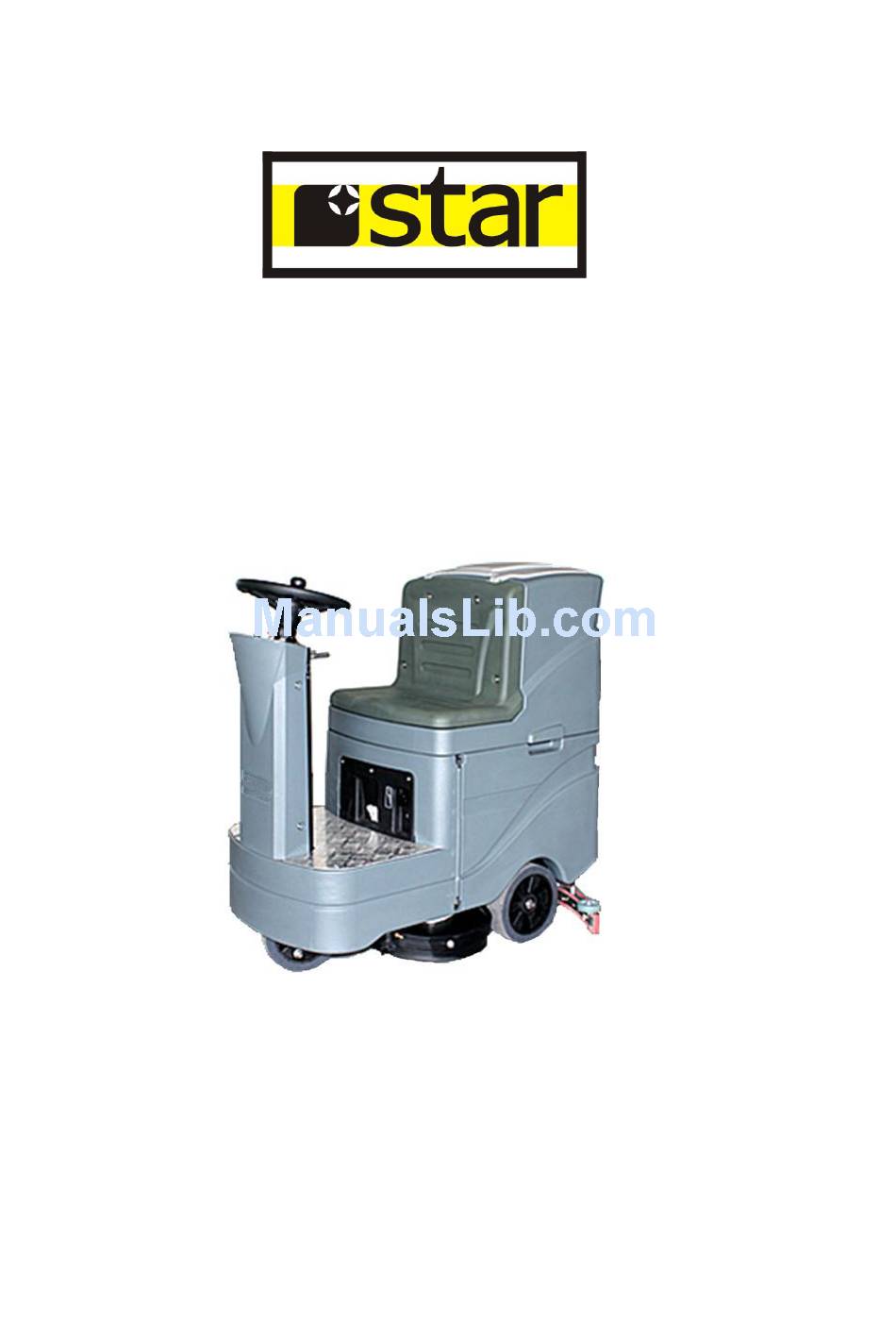

- Page 1 D8 Star Ride on Max Operator manual Dycon Cleantec Co.,Ltd www.dycon.com.cn Please read this operator manual carefully before use...
- Page 2 contents 1.0 summary ............3 2.0summary of security matters .
- Page 3 summary ： Please read this manual carefully before operating D7 attention floor scrubber. introduction D8 is a compact mini automatic ride on floor scrubber, suitable for using in medium environment, for cleaning stains on various hard floor, it can remove the stains and not absorbed by the floor cleaning solution recovery, it is a simple and high-efficient cleaning tool.
- Page 4 appropriate does and limit requirements. Only by those who have received appropriate training using appropriate tools for ● maintenance and repair of the washing machine. ● The cleaning or maintenance of the washing machine to turn off power or remove the battery.
- Page 5 turning radius 900mm Solution tank Recovery tank 100L Noise level 68dB Standard 2×DC12V/100Ah/3H Battery 2×DC12V/150Ah/3H Weight 170kg Package Special packing fit for forklift loading and unloading. Can not stack. The net weight is260kg(without packing) dimension： length：1400mm width：750mm Height:1390mm(standard pallet） 1340mm（lower pallet） machine disassembly ...
- Page 6 direction for use ①power indicate light ②power key switch ③quantity of electricity：three lights are all on when full power, if only left light flashed, please immediately turn off the machine and charge the battery ④ the front and rear walking converter ⑤Emergency stop switch ⑥loudspeaker button...
- Page 7 open the recovery tank. ○ 14 recovery tank ○ 15 solution tank ○ 16 squeegee ○ 17 drain out pipe ○ 18 filling pipe end...
- Page 8 ○ 19 drive axle electronic brake conversion handle. :Dial up to stop the use of electronic brake machine can not use the electric power to walk, you can use human resources. Dial down to enable electronic brake, foot pedal can walk, release the pedal will automatically stop brake, using...
- Page 9 Squeegee installation diagram： 1.put squeegee in the correct location of tank back, then pull out the suction pipe joint out of the cylinder into the middle of the water column （A） 2.put the bottom of stud insert (B) 3.The plum nut (C) according to the direction indicated by appropriate tightening will be installed by hand.
- Page 10 （1） check inlet filter and Inlet filter for dirt，wash and dry the sponge and put it back. （2） Check if the water absorbent strip and the ground contact is uniform, if not, please adjustment （3） Check if all wheels of machine twine with hair,if so，remove it immediately. （4）...
- Page 11 push walking motor Battery low power charging Battery damage Replace battery Battery connection line loosen tighten connection line Fuse damage Replace fuse Power key switch damage Contact supplier Brush not contact with floor Put down brush Low battery Charging Brush lifting protection switch Contact supplier Brush motor damaged...
- Page 12 Suction pipe blockage Clear blockage Water absorption pipe damage Replace recovery tank cover sealing strip Cover up recovery tank cover sealing strip Replace sealing Suction pump damage Contact supplier Battery low charging Short Battery damaged Replace battery running Battery need maintenance Check battery maintenance time Charger damaged...
- Page 13 D8 爆炸图二...
- Page 19 www.starmakina.com.tr Star Temizlik Makinaları ve Ekipmanları San. Tic. Ltd. Şti. Ferhatpaşa Mah. 34 Sok. No. 30A 34888 Ataşehir İstanbul TÜRKİYE Tel. +90 216 471 23 47 Dah./Ext.121 Faks. +90 216 471 22 02 star@starmakina.com.tr www.staff.com.tr...
