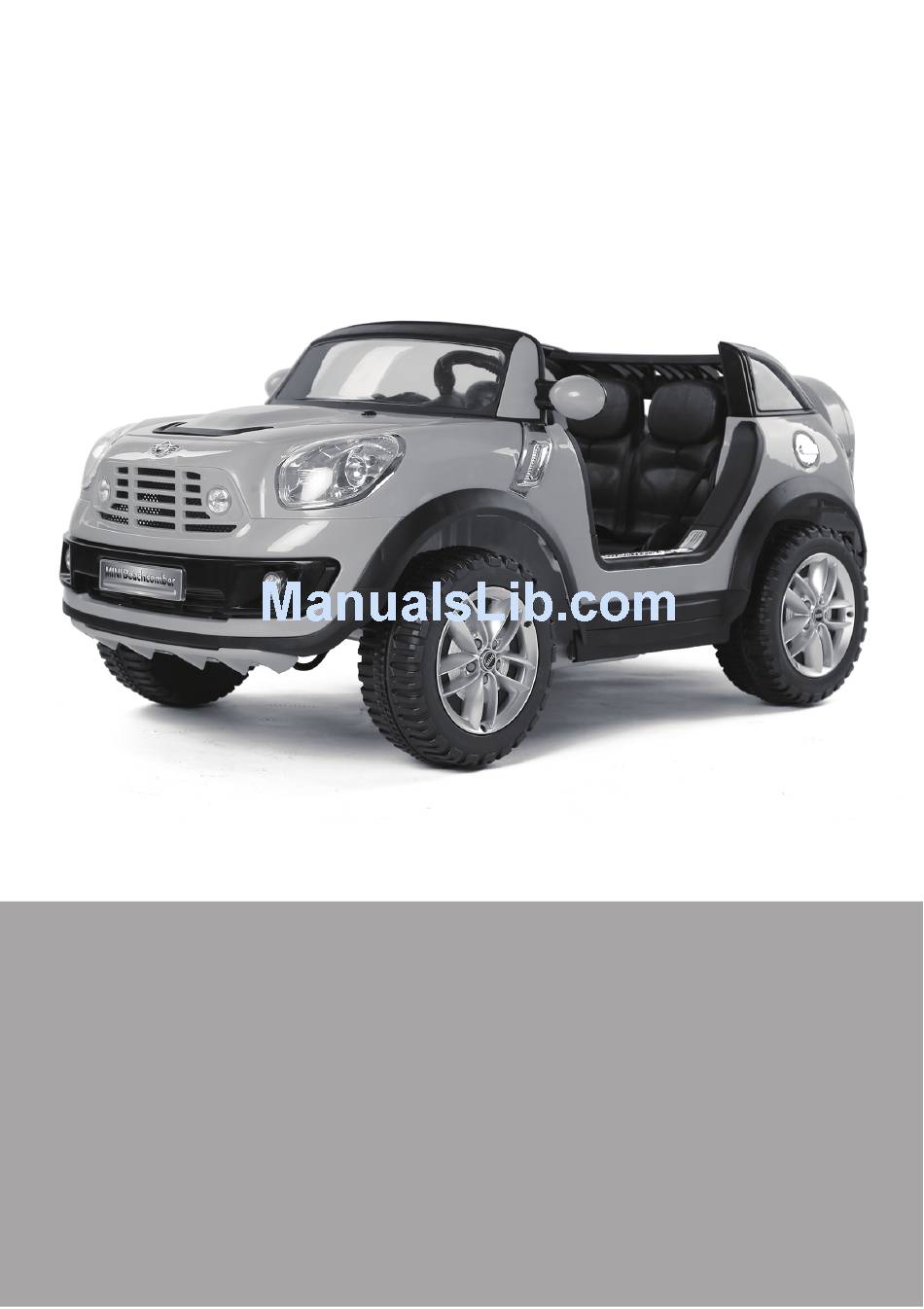

MINI Beachcomber
Children Electric RIDE ON
With remote control function
Styles and colours may vary.
Made in China.
The owner's manual contains important safety information as well as assembly, use and
maintenance instructions.
The Ride-on Car must be assembled by an adult who has read and understands the
instructions in this manual.
Keep the package away from children and dispose of properly before use.
Keep this manual for future reference.
Owner's Manual
with Assembly Instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MINI Beachcomber and is the answer not in the manual?

Questions and answers

Kimberly Butcher
February 23, 2025

I need a foot padel

0

Subscribe to Our Youtube Channel

Summary of Contents for PlayActive MINI Beachcomber

  • Page 1 MINI Beachcomber Children Electric RIDE ON With remote control function Owner’s Manual with Assembly Instructions Styles and colours may vary. Made in China. The owner’s manual contains important safety information as well as assembly, use and maintenance instructions. The Ride-on Car must be assembled by an adult who has read and understands the instructions in this manual.
  • Page 2 Follow the recommendations in this manual, they are designed to improve the safety and operation of your ride-on car and it’s rider. MINI Beachcomber Children Electric Ride On manufactured by Zhejiang Jiajia Ride-On Co., Ltd. (Add: Xincang Industrial Zone, Pinghu City, Zhejiang Province, P.R.China).
  • Page 3 Parts List │ 2 Q’ty (pcs) PART PART NAME REMARKS Gear box 1pc labeled “L”, and 1pc labeld “R” Driving wheel Ø12 washer Motorhood Front wheel Charger Ø10 locknut Tool box Vehicle body Steering column Assembled by factory Front axle Rear axle Seat Steering wheel...
  • Page 4 Parts Diagram │ 3 NOTE: Some parts shown are assembled on both sides of vehicle...
  • Page 5 Before You Begin Assembly │ 4 WARNING! FOR THE SAFETY OF YOUR CHILD, PLEASE READ ALL WARNINGS AND ASSEMBLY/USE INSTRUCTIONS. KEEP THIS GUIDE FOR FUTURE REFERENCE. • ADULT ASSEMBLY REQUIRED. The product contains small parts, which are for adult assembly only. Keep children away when assembling. •...
  • Page 6 Attach the Front Axle │ 5 1. Turn over the vehicle body and cut off the plastic tie on the frotn wheel axle with scissors. 2. Remove the M5x16 screw, washer and nut from the front wheel axle. 3. Adjust the wheel axle so that the axle is in the correct positon as shown in picture at right;...
  • Page 7 Attach the Rear Axle │ 6 Remove all the parts from the rear axle. 1. Insert the rear alxe into the hole in the vehicle body.
  • Page 8 Attach the Rear Wheels │ 7 Driving wheels are more bigger than front wheels Rear axle 1. Slide the gear box onto the rear axle (Left Side). “R” labeled gear box should be fit to the “R” side of vehicle body; “L” labeled gear box should be fit to “L” side of vehicle body. 2.
  • Page 9 Attach the Front Wheels │ 8 Front axle Tools required: Spanner Remove all the parts from the front axle. 1. Slide a Ø10 washer onto the front axle. 2. Slide the normal wheel onto the rear axle. 3. Slide a Ø10 washer onto the front axle. 4.
  • Page 10 Attach the Steering Column │ 9 Hole in the front axle linkage Steering Gear Box Turn the vehicle body on its side. Remove the M5x22 machine screw and Ø5 Turn the vehicle body on its side. from the R/C driver with a screwdriver. 1.
  • Page 11 Attach the Steering Wheel │ 10 Follow the battery information on page 4. Add the Batteries (NON PROVIDED) of Steering Wheel 1. With a screwdriver remove the screw on the battery cover located in the center of the steering wheel. 2.
  • Page 12 Attach the Windshield │ 11 1. Fit the windshield assembly to the vehicle body. 2. Tighten two Ø4x12 screws through the windshield and into the vehicle body with a scewdriver.
  • Page 13 Connect the Power Supply │ 12 Fuse box Vehicle connector Battery Motor connector 1. Plug the Vehicle Connector into the Motor Connector on body as shown above. Repeat for the other side. 2. Plug the Red fuse connector into the terminal on battery.
  • Page 14 Attach the Motor Hood │ 13 1. Fit the motor hood on the motor. 2. Tighten four Ø4x12 screws to secure it. Repeat the above step for the other Motor hood.
  • Page 15 Attach the Seat │ 14 Tabs 1. Fit the tabs at back of the seat to the holes in the vehicle body. 2. Tighten two M5x16 machine screws with a screwdriver.
  • Page 16 Attach the Sport Bar │ 15 1. Fit the rear window to the sport bar. 2. Insert the two Ø4x12 screws through the rear window and into the the sport bar. tighten them with a screwdriver. 3. Insert the tabs on the rear windows into the slots in the vehicle, push until you hear it “click”...
  • Page 17 Attach the Toolbox │ 16 Fit the tool box to the rear end of the vehicle body.
  • Page 18 Saftely │ 17 WARNING! PREVENT INJURIES AND DEATHS: • NEVER LEAVE CHILD UNATTENDED. DIRECT ADULT SUPERVISION IS REQUIRED. Always keep child in view when child is in vehicle. • This toy should be used with caution since skill is required to avoid falls or collisions causing injury to the user or third parties.
  • Page 19 Use Your Ride-on │ 18 IMPORTANT! Always stop vehicle when changing the speed or direction to avoid damage the gears and motor. 1. Power Switch: Turns the vehicle on and off. 2. Forward/reverse switch: Changes the direction that vehicle moves from forward to reverse.
  • Page 20 Use the Remote Controller │ 19 WARNING: ADULT OPERATING REQUIRED! INDICATOR LIGHT LEFT JOY STICK RIGHT JOY STICK ON-OFF SWITCH The remote control operation always prior to the foot pedal operation. (The foot pedal won’t working while you opearating the Remote Controller) ASSEMBLY 1.
  • Page 21 Charging │ 20 Charging │ 19 ONLY AN ADULT CAN CHARGE AND RECHARGE THE BATTERY! WARNING! • PREVENT FIRE AND ELECTRIC SHOCK: - Use the only rechargeable battery and charger supplied with your vehicle. NEVER substitute the battery or the charger with another brand. Using another battery or charger may cause a fire or explosion. - Do not use the battery or charger for any other product.
  • Page 22 Charging │ 20 Charging │ 21 • If your ride-on with a the magnitude of voltage will Digital voltmeter(OPTIONAL), tell you how much power is remaining in the battery when you must recharge the battery. Make sure the vehicle is stop! BATTERY MAGNITUDE OF VOLTAGE BATTERY STATE...
  • Page 23 Battery Replacement & Fuse │ 21 Battery Replacement & Fuse │ 22 The battery features a thermal fuse with a rest fuse that will automatically trip and cut all power to the vehicle if the motor, electric system or battery is overloaded. The fuse will reset and power will be restored after the unit is turned OFF for five Minutes and then turned ON again.
  • Page 24 Troubleshooting Guide │ 23 Troubleshooting Guide │ 22 Possible Cause Solution Problem Vehicle does not run Battery low on power Recharge battery. Thermal fuse has tripped Reset fuse, see <Fuse> Check that the battery connectors are firmly plugged Battery connector or wires into each other.
  • Page 25 Maintaining Maintaining │ 23 │ 24 • It is parents' responsibility to check main parts of the toy before using, Must regularly examine for potential hazard, such as the battery, charge,cable or cord, plug, screws are fastening enclosure of other parts and that in the event of such damage, the toy must not be used until that damage had been properly removed.
  • Page 26 Our products are suitable for ASTM F963; GB6675; EN71 and EN62115 standard.
