NetworkHD™ 200 Series AV Over IP H.264
Multiview Decoder
NHD-220-RX
WyreStorm recommends reading through this document in its entirety to become familiar with the product's features prior to starting the
installation process.
IMPORTANT! Installation Requirements!
• Visit the product page to download the latest firmware, document
versions, and the WyreStorm Maintenance Suite configuration tools.
• Install the latest firmware onto all NetworkHD devices in the system.
• NetworkHD requires a Layer 2 managed switch network with support
for Multicast & IGMP snooping enabled.
• NetworkHD uses AutoIP to assign IP addresses in the range of
169.254.x.x to encoders and decoders out of the box. The use of DHCP
addresses is not recommended. Errors in static IP settings can result
in a complicated reset procedure.
• WyreStorm highly recommends using our recommended switch
manufacturers. Configure all network switches to the exact
specification of the guides at
NetworkHD devices.
• Due to the way H.264 compression encodes the video, interlaced video
sources are not recommended. Please use progressive scan sources
for best video quality - even at lower resolutions.
• WyreStorm recommends the use of the
installations containing multiple NetworkHD devices. Use of this
product provides an enclosure to mount and secure all NetworkHD
devices in a rack.

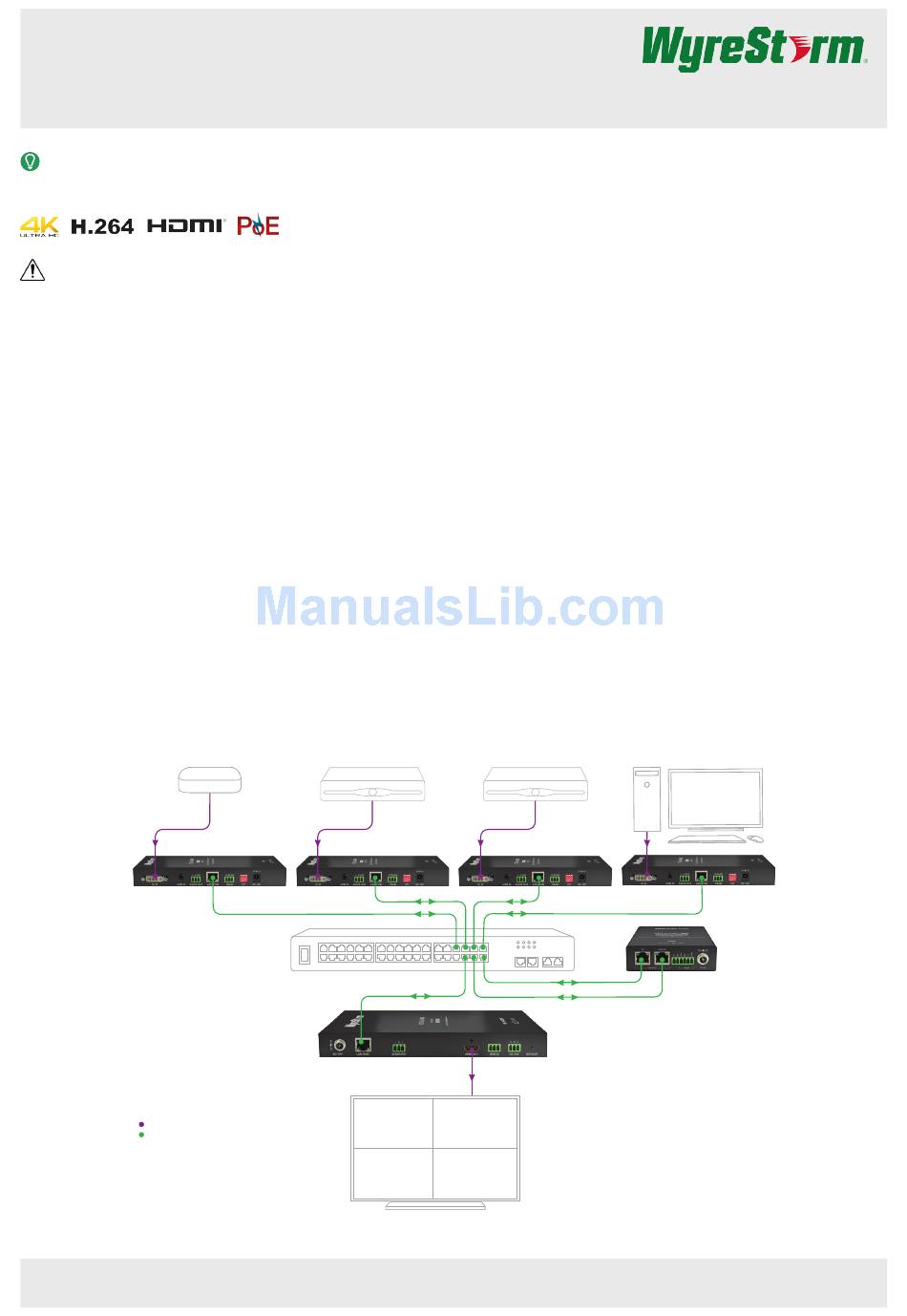

Basic Wiring Diagram
The following diagram is provided to illustrate a typical basic system containing the NHD-220-RX.
Media Player
Digital Video
NHD-200-TX
Key
Digital Video/DVI/HDMI
Ethernet
Copyright © 2016 WyreStorm Technologies |
NHD-220-RX Quickstart Guide | 160330
wyrestorm.com
prior to connecting any
NHD-000-RACK
for
Sattellite Box 1
Digital Video
NHD-200-TX
Network Switch
NHD-220-RX
Satellite Box 1
Media Player
wyrestorm.com
In the Box
1 x NHD-200-RX Main Unit
1 x Power Adapter (12V 1A DC)
3 x 3-pin Phoenix Connectors
2 x Mounting Brackets
1 x Quickstart guide (This Document)
Additional Information
The following information can be found on the
the
NHD-220-RX Product
• NetworkHD 100-200 Series Firmware
• NetworkHD 200 Series Installation Guide
• NetworkHD Switch Recommendations
• NetworkHD IP Switch Mapping Worksheet
• NetworkHD Switch Configuration Guides
• Drivers for Popular Control Systems
Sattellite Box 2
Digital Video
NHD-200-TX
Ethernet
Ethernet
Ethernet
Ethernet
Digital Video
Satellite Box 2
PC
North America: 518-289-1294 | EMEA/ROW: 44 (0) 1793 230 343
1 of 4
Quickstart Guide
WyreStorm
Page.
PC
Digital Video
NHD-200-TX
NHD-000-CTL
support@wyrestorm.com
website under
Advertisement
Related Manuals for Wyre Storm NetworkHD 200 Series NHD-220-RX
Summary of Contents for Wyre Storm NetworkHD 200 Series NHD-220-RX
-
Page 1: Quickstart Guide
NetworkHD™ 200 Series AV Over IP H.264 Multiview Decoder Quickstart Guide NHD-220-RX WyreStorm recommends reading through this document in its entirety to become familiar with the product’s features prior to starting the installation process. In the Box IMPORTANT! Installation Requirements! 1 x NHD-200-RX Main Unit •... -
Page 2: Front Panel
Front Panel Audio Out Wiring The decoder contains an Audio Out that can be used to distribute the audio throughout the room by connecting to an audio pre-amplifier or powered speaker. This connection uses a 3-pin phoenix connector (supplied). Pin 1: Left Positive (+) 1 2 3 Pin 2:... - Page 3 Setup and Installation NetworkHD 000 Series Console Configuration Installation and Connections Connect a PC to the same LAN/VLAN as the NetworkHD components and ensure it is within the same subnet/IP range as the components default 169.254.x.x IP addresses. Do not connect the power supply or power on the PoE switch until Power On the NetworkHD devices by connecting the included power all NetworkHD device network connections are made.
-
Page 4: Specifications
Specifications Audio and Video Inputs 1x LAN (PoE) 8-pin RJ-45 female | 10/100 Mbps auto-negotiating Outputs 1x HDMI Out 19-pin type A Audio Formats 2ch PCM Output Video Type H.264/MPEG-4 AVC Output Video Resolutions 640x480p @60Hz~3840x2160p @60Hz Encoding Data Rate Up to 40 Mbps, configurable End to End Latency Low Latency Mode: 60~90ms | High Latency Mode: 250~300ms...
