DCWL-7962OT Outdoor AP Installation
Manual
DCWL-7962OT 室外型无线接入点产品
安装指导
Manual Version: v1.1

Advertisement

Chapters

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DCWL-7962OT and is the answer not in the manual?

Questions and answers

Summary of Contents for YUNKE CHINA DCWL-7962OT

  • Page 1 DCWL-7962OT Outdoor AP Installation Manual DCWL-7962OT 室外型无线接入点产品 安装指导 Manual Version: v1.1...

  • Page 2: Table Of Contents

    DCWL-7962OT Outdoor AP Installation Manual Content Content CHAPTER 1 DEVICE INTRODUCTION........1-1 CHAPTER 2 PREPARATION FOR INSTALLATION ....2-1 2.1 I ............... 2-1 NSTALLATION RECAUTIONS 2.2 I ........2-1 NSTALLATION NVIRONMENT EQUIREMENTS 2.3 E ..............2-1 QUIPMENT CCESSORIES 2.4 I ................

  • Page 3: Chapter 1 Device Introduction

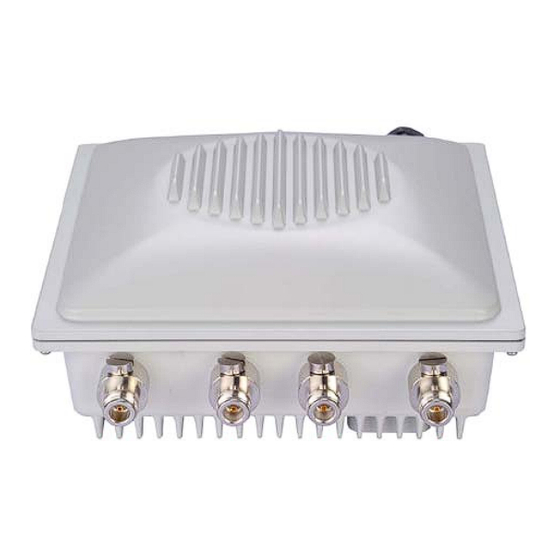

    DCWL-7962OT Outdoor AP Installation Manual Chapter 1 Device Introduction Chapter 1 Device Introduction DCWL-7962OT(R5) outdoor AP is shown as below: Fig 1-1 DCWL-7962OT（R5） AP The ports explanation of DCWL-7962OT outdoor AP is as below: Table 1-1 ports explanation Name Explanation...
  • Page 4 Applicable Protocols Antenna Maximum Power Provide external DCWL-7962OT(R5) • IEEE802.11a/b/g/n antenna • Double Radiofrequency The shape size and weight of DCWL-7962OT outdoor AP is as below: Table 1-3 the shape size and weight Shape Size Weight Product Model DCWL-7962OT(R5)（W×D×H） 220×220×100mm 3.80kg...

  • Page 5: Chapter 2 Preparation For Installation

    DCWL-7962OT Outdoor AP Installation Manual Chapter 2 Preparation for Installation Chapter 2 Preparation for Installation 2.1 Installation Precautions Only allow the professionals installing and disassembling the device and its annex. Before the installation and configuration, please read the related security introduction carefully.

  • Page 6: Installation Tools

    DCWL-7962OT Outdoor AP Installation Manual Chapter 2 Preparation for Installation 2.4 Installation Tools When installing DCWL-7962OT outdoor AP, the following tools may be used (user-owned). Horizontal Permanent Knife Wire Network pliers ruler marker stripper Impact drill (1) Rubber Phillips Ladder...

  • Page 7: Chapter 3 Ap Installation

    DCWL-7962OT Outdoor AP Installation Manual Chapter 3 AP Installation Chapter 3 AP Installation Because the installation position of DCWL-7900 series indoor AP is high normally, the maintenance personal cannot maintain and debug through the console port to login the device after installation. We suggest user conducting the basic configuration according to need before installing the AP to the appointed position.

  • Page 8: Checking Before Installation

     Wall hanging installation 3.4.1 Column Holding Installation When install the DCWL-7962OT (R5) outdoor AP on the column, the steps are as below: 1. Install the backplane at the bottom of DCWL-7962OT (R5), and screw the 4pcs short screws with the phillips screwdriver. Make the long screw stick passing through the holes of the backplane and put the flat pad, spring shim and the screw nut on it in proper order;...
  • Page 9 DCWL-7962OT Outdoor AP Installation Manual Chapter 3 AP Installation Fig 3-2 Install the backplane of DCWL-7962OT (R5) AP 2. Lock the 2PCS stainless tight hoop strip on the stick by passing through the mounting bracket and lock the fastening screws.

  • Page 10: Wall Hanging Installation

    When install the DCWL-7962OT (R5) outdoor AP with wall hanging method, the steps are as below: 1. As shown in the fig 3-1, install the backplane at the bottom of DCWL-7962OT (R5) first; 2. Make the AP wall mounting kit flat against the wall and mark the holes that the crews needs to be installed into, and then punch four holes with the impact drill;...
  • Page 11 DCWL-7962OT Outdoor AP Installation Manual Chapter 3 AP Installation Fig 3-5 Wall drilling 3. Correspond the screw holes to the expansion bolt holes on the wall, and make the crews pass through the installation holes of the wall mounting kit; Lock the wall mounting kit to the wall;...

  • Page 12: Connect Cables

    3.5 Connect Cables 3.5.1 Connect Network Cables The DCWL-7962OT (R5) outdoor AP supports the 802.3at PoE power. The power and the network cables should be isolated with water. Please install the waterproof kit onto the network cables as the sequence in the following figure.

  • Page 13: Connect Ground Cables

    DCWL-7962OT Outdoor AP Installation Manual Chapter 3 AP Installation Fig 3-9 Install the waterproof kit 3.5.2 Connect Ground Cables Please install the ground cables onto the ground point. 3.5.3 Connect RF Cables Please install the RF cables or antenna onto the RF interface. The cables interface cannot be installed with a mistake.

  • Page 14: Ap Power

    DCWL-7962OT Outdoor AP Installation Manual Chapter 3 AP Installation 3.6 AP Power 3.6.1 Checking before Power After installing the AP, user should check it before power every time as below:  When AP use the 802.3at standard PoE power, please ensure the power is connected normally to ground.
  • Page 15 第 3 章 安装 AP ............... 3-1 3.1 安装流程 ................... 3-1 3.2 安装前检查 ..................3-2 3.3 确定安装位置 ..................3-2 3.4 安装 DCWL-7962OT(R5) ..............3-2 3.4.1 抱柱安装方式 ..................3-2 3.4.2 壁挂安装方式 ..................3-4 3.5 连接线缆 ................... 3-6 3.5.1 连接网线 ....................3-6 3.5.2 连接接地线...

  • Page 16: 第1章 设备简介

    DCWL-7962OT 室外型无线接入点产品安装指导 第 1 章 设备简介 第1章 设备简介 DCWL-7962OT(R5)室外型无线接入点产品如下图： 图1-1 DCWL-7962OT（R5） AP DCWL-7962OT 室外型 AP 端口说明如下表。 表 1-1 产品端口说明列表 序号 名称 说明...
  • Page 17 第 1 章 设备简介 5G的天线接口1 5G-1 5G的天线接口2 5G-2 2.4G的天线接口1 2.4G-1 2.4G的天线接口2 2.4G-2 PoE接口，PoE供电和以太网接口 接地点 AP复位孔 Reset DCWL-7962OT 室外型 AP 基本配置如下表。 表 1-2 产品基本配置列表 产品型号 产品适用协议和特点 天线 最大功耗 另配外置天线 DCWL-7962OT(R5) • IEEE802.11a/b/g/n • 双射频 DCWL-7962OT 室外型 AP 的外形尺寸及重量如下表。 表 1-3 外形尺寸及重量 产品型号...

  • Page 18: 第2章 安装准备

    第2章 安装准备 2.1 安全注意事项 仅允许专业人员进行设备及其附件的安装和拆卸工作， 进行安装和操作前必须仔细阅读 设备提供的相关安全介绍。  采取适当的安全措施避免人身伤害和设备损坏。  请将设备放置在干燥、平整的地方，并且做好防滑措施。  保持设备洁净无灰尘。  请不要将设备和安装工具放在行走区域内。 2.2 检查安装条件 在准备安装之前， 还应该对设备的安装条件进行检查， 以保证设备长期处于良好的运行 环境之中。 可从以下方面对安装条件进行检查。 设备工作的温度、湿度环境要求如下： 表 2-1 设备工作温度、湿度指标 项目 取值范围 标准工作环境温度（室外） -40℃～60℃ 存储温度 -45℃～70℃ 工作湿度（非凝露） 5%～95% 2.3 设备附件 DCWL-7962OT(R5) 室外型 AP 随机发货的附件参考装箱清单。...

  • Page 19: 安装工具

    DCWL-7962OT 室外型无线接入点产品安装指导 第 2 章 安装准备 2.4 安装工具 在安装 DCWL-7962OT(R5)室外型 AP 时，可能需要用到下列的工具（以下工具需要 用户自备）。 水平尺 记号笔 小刀 剥线钳 网线钳 冲击钻（1个）以 橡胶锤 十字螺丝刀 梯子 及配套钻头 若干...

  • Page 20: 第3章 安装 Ap

    DCWL-7962OT 室外型无线接入点产品安装指导 第 3 章 安装 AP 第3章 安装 AP 由于 DCWL-7962OT(R5)室外型 AP 的安装位置通常较高，AP 安装好后维护人员无法 通过 Console 口登录设备进行维护和调试， 所以建议用户在把 AP 设备安装到指定位置之前， 根据客户需求，进行相关基础配置。 3.1 安装流程 图 3-1 AP 设备安装流程图...

  • Page 21: 安装前检查

    3.3 确定安装位置 确定安装位置时的原则如下：  尽量减少 AP 和用户终端间的障碍物（如：墙壁）数量。  使 AP 的安装位置远离可能产生射频噪声的电子设备或装置（如：微波炉） 。  安装位置尽量隐蔽，不妨碍居民的日常工作和生活。 3.4 安装 DCWL-7962OT(R5) DCWL-7962OT(R5)室外 AP 支持以下两种安装方式:  抱柱安装方式  壁挂安装方式 3.4.1 抱柱安装方式 将 DCWL-7962OT(R5)室外 AP 安装在柱子上的时候，请参考下面三个步骤： 1. 将底板安装在 DCWL-7962OT(R5)底部上，用十字螺丝刀拧紧 4PCS 短螺钉固定底 板， 将长螺杆穿过底板孔依次套上平垫、 弹簧垫片并锁上螺母， 以不锁紧为准， 如下图所示：...
  • Page 22 DCWL-7962OT 室外型无线接入点产品安装指导 第 3 章 安装 AP 图 3-2 DCWL-7962OT(R5) AP 底板安装示意图 2. 将 2PCS 不锈钢紧箍条穿过安装支架锁在杆上，并锁紧紧固螺丝。如图下图所示： 图 3-3 DCWL-7962OT(R5) AP 抱柱安装示意图 3. 将装好底板的设备安装到柱子的安装件上，用扳手将 2pcs 短螺钉与 1PCS 长螺钉 将设备与安装件紧固在一起。如下图所示：...

  • Page 23: 壁挂安装方式

    DCWL-7962OT 室外型无线接入点产品安装指导 第 3 章 安装 AP 图 3-4 DCWL-7962OT(R5) AP 固定安装示意图 3.4.2 壁挂安装方式 将 DCWL-7962OT(R5)室外 AP 进行壁挂式安装的时候，请参考下面几个步骤： 1. 参考图 3-1，先将底板安装在 DCWL-7962OT(R5)底部上。 2. 将 AP 壁挂安装套件平贴在墙面，画出需要安装螺钉的孔的位置标记，在标记处用 冲击钻钻四个孔， 将膨胀塑胶螺管插入墙面上已钻好的孔中， 再用橡胶锤敲打膨胀塑胶螺管， 直至将膨胀塑胶螺管全部敲入墙内。见下图：...
  • Page 24 DCWL-7962OT 室外型无线接入点产品安装指导 第 3 章 安装 AP 图3-5 墙面钻孔 3. 将壁挂安装套件的螺钉孔对准墙面上的膨胀塑胶螺管孔，将螺钉穿过壁挂安装套件 上对应的安装孔，将壁挂安装套件锁紧在墙面上，见下图： 图3-6 壁挂安装套件的安装 4. 将装好底板的设备安装到柱子的安装件上，用扳手将 4pcs 短螺钉与 1PCS 长螺钉 把设备与安装件紧固在一起，见下图： 图 3-7 AP 的壁挂安装...

  • Page 25: 连接线缆

    DCWL-7962OT 室外型无线接入点产品安装指导 第 3 章 安装 AP 3.5 连接线缆 3.5.1 连接网线 DCWL-7962OT(R5)室外型 AP 支持 802.3at PoE 供电，供电和上联网线接口需做好 防水，请按照下图的顺序依次将防水套件安装在网线上。 图 3-8 防水套件的安装顺序示意图 按照上图示意装好后，将网线插入 AP，然后依次将防水套件拧紧。 图 3-9 防水套件的安装示意图 3.5.2 连接接地线 请将接地线安装在 AP 的接地点上。 3.5.3 连接射频线 请将射频线缆或天线安装在射频接口上，主要天线接口不要弄错，5G 的天线接在 5G 的射频口上，2.4G 的天线接在 2.4G 的射频口上。连接完成后，在连接处缠上 3 层防水胶...

  • Page 26: Ap 供电

    DCWL-7962OT 室外型无线接入点产品安装指导 第 3 章 安装 AP 图 3-10 天线安装示意图 3.6 AP 供电 3.6.1 上电前检查 AP 安装完毕后，每次上电前均要进行检查，检查事项如下：  AP 设备采用 802.3at 标准 PoE 供电时，请确认 PoE 供电设备良好接地。 3.6.2 PoE 供电 可以使用以太网线连接 AP 设备的以太网接口和支持 PoE 功能的交换机给 AP 供电。 3.6.3 上电后检查 AP 电源连接好后需要检查 AP 设备的指示灯是否正常显示。设备指示灯状态的详细描...

  • Page 27: 将 Ap 连接到网络

    DCWL-7962OT 室外型无线接入点产品安装指导 第 3 章 安装 AP 3.7 将 AP 连接到网络 AP 设备在实际使用中，可以通过以太网口上行接入 Internet 或城域网。将 AP 设备的 以太网口与以太网交换机的端口连接，实现 AP 设备通过以太网口上行接入到 Internet。...
  • Page 28 DCWL-7962OT Outdoor Wireless AP...

  • Page 29: Product Overview

    On DCN smart APs, The DCWL-7962OT operates in a 2.4 GHz or 5 GHz band and a certain RF channel may be set to only 11n access mode so that employs technologies such as multiple-input multiple-output 802.11n users have guaranteed bandwidths.
  • Page 30 DCWL-7962OT APs have essentially resolved this problem by using intelligent technology, which enables multiple ACs to synchronize online control of terminals based on airtime fairness, ensuring that a user connection information and roaming records of all users to each can always enjoy the same joyful WLAN experience in the same other in real time.

  • Page 31: Product Specifications

    DCWL-7962OT terminal adaptation and provide good authentication compatibility. authentication servers, and other network devices without They adapt to the majority of WLAN terminals and do not need to changing existing network architecture. adapt to clients. DCN wireless network products are compatible When used with a DCN wireless AC, DCN smart APs support with existing portal authentication modes.
  • Page 32 DCWL-7962OT Item DCWL-7962OT -40°C to +60°C Working/Storage temperature –40°C to +70°C Working/Storage RH 5% to 95% (non-condensing) Protection level IP66 Radio Transmission Equipment Type Approval Certificate issued by the Ministry of Industry FR standard and Information Technology of P. R. China...
  • Page 33 DCWL-7962OT Item Feature DCWL-7962OT Real-time spectrum protection Protection against DoS attacks Anti-DoS for wireless management packets Frame filtering, white list, static blacklist, and Forwarding security dynamic blacklist AP L2 forwarding suppression User isolation Isolation between virtual APs (multiple SSIDs) Periodic SSID enabling and disabling...
  • Page 34 DCWL-7962OT Item Feature DCWL-7962OT Centralized management through an AC; both fit and Network management fat modes Maintenance mode Both local and remote maintenance Log function Local logs, Syslog, and log file export Alarm Fault detection Statistics Management An AP working in fit mode can switch to the fat mode through a wireless AC;...
  • Page 35 Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
