Summary of Contents for Weda WP300

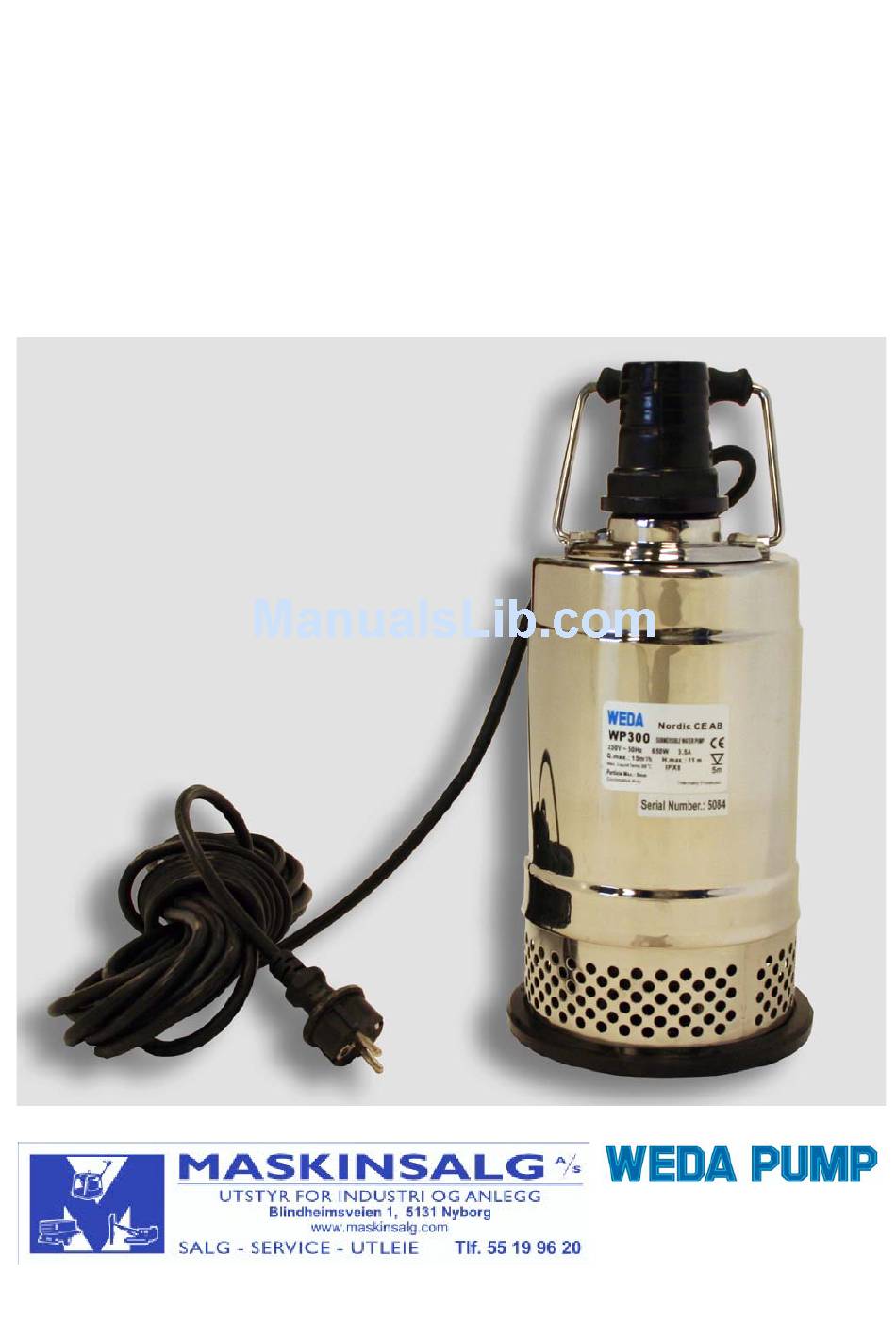

- Page 1 WEDA PUMP Submersible Water Pump WP300 INSTRUCTIONS & SPARE PARTS CATALOGUE WP300_ ENG_1...
-
Page 2: Table Of Contents
Safety Instructions ................3,4 Technical Data ..................5 Pre-Operation Note................6 Safety Precautions................7,8 Setting up the WP300 ................. 9 Pre-Operation Procedures ..............10,11 Operation Procedures................. 12,13 Maintenance Procedures ..............14 Winterizing Your Pump ............... 15 Maintenance Schedule ............... 16 Troubleshooting Guide ............... -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS - MACHINES SUBMITTED : Powered with : Electric, Pneumatic, Petrol or Diesel engine. - SYMBOLS : The words WARNING and CAUTION used in safety instructions, have the following meanings : WARNING indicates hazards or hazardous procedures which could result in serious injury or death , if the WARNING is not observed. - Page 4 - POWER SUPPLY : WARNING Make sure that the power supply equipment complies with the relevant safety requirements of the local and the international standards. - Electric machine : It must be ensured that the machine is connected to the voltage and the frequency specified on the name plate.
-
Page 5: Technical Data
TECHNICAL DATA Type of Current 1-phase – 50 Hz Voltage 230V Power 650W Rated Current 3.5A Maximum Capacity (Q. Max) 250 liter/min (15m Max. Water Temp Particle Max. 5 mm Max. height of water (H. max) Weight (without cable) 13.3kg Height 38cm Diameter... -
Page 6: Pre-Operation Note
PRE-OPERATION NOTES The warranty will be void if the pump has not been operated and maintained in the manner prescribed in this Operator's Manual. In order for the pump to perform at its optimum capabilities, the operator of the unit must read this manual thoroughly before using this unit. This Operator's Manual contains important product operation procedures, safety precautions, maintenance and troubleshooting tips as well as other... -
Page 7: Safety Precautions
SAFETY PRECAUTIONS 1. READ AND UNDERSTAND OPERATOR'S MANUAL PRIOR TO USE OF SUBMERSIBLE PUMP. 2. DO NOT USE ELECTRICAL CABLE TO CARRY, LIFT OR OTHERWISE MOVE PUMP. This will damage the cable, which can cause electrical shocks, electrical short circuit, pump failure, personal injury and other accidents. - Page 8 DO NOT continue operating the pump if ANY of the following conditions are observed: a. Excessive vibration b. Unusual odor or noise Turn pump OFF immediately if any of the above conditions appear and contact your local dealer. 10. Check hoses for weak or worn condition before each use, and making certain that all connections are secure.
-
Page 9: Setting Up The Wp300
SETTING UP THE WP300 Wrap threaded sections of included nipple with Teflon tape. Screw prepared nipple onto the WP300 Submersible Pump. DO NOT overtighten coupling onto the outlet as this may lead to damaging the pumps structural integrity. Connect 2" discharge hose to pump. -
Page 10: Pre-Operation Procedures
Does the pump start when plugged into socket? Does the pump function without excessive noise and/or unusual odour? Test as follows: a. Set up pump as instructed in "Setting up the WP300" section. b. Plug electrical cable into socket. - Page 11 2. Before using the pump on proposed jobsite, perform the following environmental checks: a. Check that available electrical socket conforms to local codes. b. Inspect the entire work area for unexpected buried hazards, such as rocks, pins, nails and other obstructions that can be sucked into the pump.
-
Page 12: Operation Procedures
OPERATION PROCEDURES 1. Place the pump assembly (pump & discharge hose) in an upright position. Always ensure that the pump will be operating in an upright position 2. Slowly lower pump into jobsite, using a rope, chain, or other implements attached to the handle. NEVER USE ELECTRICAL CABLE TO CARRY, LIFT OR OTHERWISE MOVE PUMP. - Page 13 3. Plug grounded electrical plug into a grounded socket: MAKE SURE THAT CABLE, PLUG AND SOCKET ARE ALL DRY AND CLEAN. DO NOT MIX. WATER AND ELECTRICITY DO NOT USE PUMP IF ELECTRICAL CABLE SHOWS ANY OF THE FOLLOWING SIGNS: 1.
-
Page 14: Maintenance Procedures
MAINTENANCE PROCEDURES Regular scheduled maintenance procedures will help to maintain your pump's life and performance. Before performing any maintenance, disconnect the pump from power source. MAKE SURE THAT CABLE, PLUG AND SOCKET ARE ALL DRY AND CLEAN. DO NOT MIX WATER AND ELECTRICITY. Standard Maintenance Procedures Oil Change Remove base, filter, pump cover, impeller and seal from... -
Page 15: Winterizing Your Pump
WINTERIZING YOUR PUMP The WP300 Submersible Pump cannot freeze as long as it remains submerged and in operation at the pump site in which it was originally installed. The discharge hose MUST BE FREE FROM any obstructions or damages that can cause the improper discharge of water. -
Page 16: Maintenance Schedule
MAINTENANCE SCHEDULE FREQUENCY MAINTENANCE ACTIONS After every use: a. Clean the pump surface of any accumulated dirt with water b. Remove base, filter and pump cover to check and remove any debris from impeller. c. Re-attach and secure pump cover, filter and base. -
Page 17: Troubleshooting Guide
TROUBLESHOOTING GUIDE ISSUE CAUSE SOLUTION 1. Pump does not 1. Wrong Voltage Check that pump is plugged into a start socket with the proper voltage. 2. No Power Check that pump is plugged into a live socket. 3. Damaged electrical DO NOT use pump. -
Page 18: Troubleshooting Guide
TROUBLESHOOTING GUIDE 2. Water is in 1. Damaged seals Complete pump overhaul. the stator housing 2. Damaged cable DO NOT use pump. entrance Contact your dealer for further instructions. 4. Water in the oil 1. Worn or damaged oil Change seals. See “ Maintenance housing lipseals and/or Procedures”... -
Page 19: Spare Parts Catalogue
SPARE PARTS CATALOGUE ORDERING SPARE PARTS To avoid errors in delivery, please give the following information when ordering spare parts : 1. Type of machine. 2. Machine serial number. 3. Quantity required. 4. Part number. 5. Parts description. 6. Dimensions when ordering per length. - Page 20 Description PSP200SS-1 Top Cover PSP200SS-2 Capacitor PSP200SS-3 Top O-ring Not available Motor Cover Not available Bearing Not available Rotor Not available Bearing Not available Motor Stator PSP200SS-9 Bottom O-ring Not available Motor Base PSP200SS-11 Mechanical seal kit Not available Oil Cover Not available Oil Seal PSP200SS-14...
- Page 22 2007-11-20...
