Vibtec V628 Operating Manual

MODEL
Head Diam. (mm)
Head Length (mm)
Frequency (VPM)
C/F Force (N)
Air Consumption (l/min)
Weight (kgs)
Radius of Effectiv. (cm)
S P Level (dB)
2
Vibration (M.sec )
Air Pressure (psi)
Vibrators and vibrating equipment can be dangerous if not used correctly.
1. DO NOT hold steel vibrating heads when running.
2. DO NOT stand or sit on vibratory equipment when running.
3. USE ONLY for the purpose intended.
4. USE ONLY when pneumatic hoses and fittings are securely tightened.
5. ALWAYS wear ear protectors.
We reserve the right to improve, modify or withdraw specifications or products without notice or obligation.

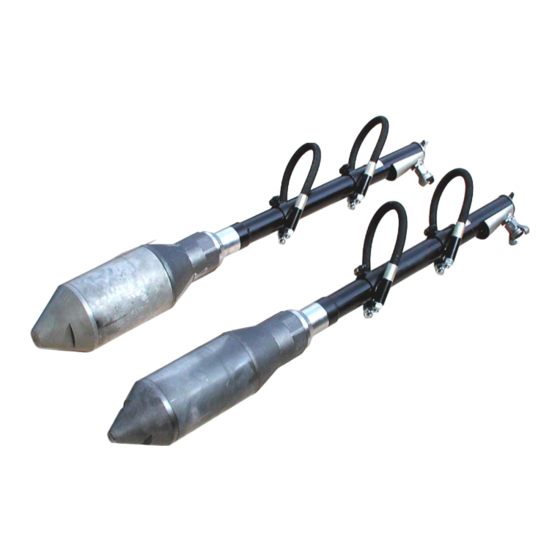

PNEUMATIC INTERNAL VIBRATORS
V628 V635 V645
28 35 45
234 278 285
18000 18000 17000
1440 1924 3500
500 608 736
4.4 6 8
16 20 25
104.5 107.2 113
3.2 3 2.74
Sound and Vibration readings taken 1 metre from the poker head
Air Consumption established with supplied pressure of 6 bar

IMPORTANT NOTICE

V600
OPERATING MANUAL
V655 V665 V675
55 65 75
316 327 366
17000 18000 18000
6050 9301 14851
820 1018 1218
9 10 15
38 44 50
109 113 112.1
4.5 4.4 2.24
87
V685 V6105 V6140 V6160
85 105 140
395 395 508
17000 13500 10000
22184 22304 32460
1600 2100 2880
19 23 35
55 65 95
109 112.2 115
3.1 4.4 4.8
160
508
10000
49347
3750
41.5
105
115
4.8
