Summary of Contents for MOTO FACTORY MOTOXBIKE

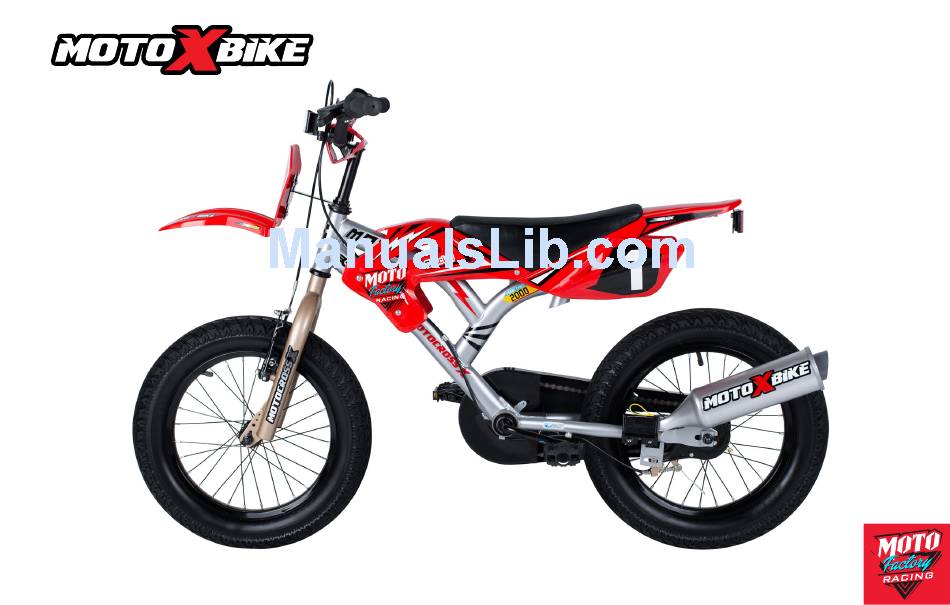

- Page 1 Quick Assembly Guide...
- Page 2 Quick Assembly Guide QUICK ASSEMBLY GUIDE The assembly of the bike should not take you too long but that will depend on your expertise. There are several stages to assembly and we recommended that they are done in this order. Removing Packaging Remove all outer packaging including (1) Cardboard (2) Staples (3) Tape (4) and dispose of in a responsible manner.
- Page 3 Quick Assembly Guide Adjust Front Brake Attach cable pipe to cable bracket Start of by squeezing the two brake arms together and locate and attach the inner steel cable pipe to the cable bracket. Inner cable adjustment Loosen the cable fixing bolt and squeeze the two brake arms together until the cable feeds through the bolt (Pull through if necessary) Ensure that the clearances between the left and right shoes and the rim is 2mm.
- Page 4 Quick Assembly Guide Attach Handlebars Stem cap and front mudguard Remove the black plastic stem bolt protector from the bottom of the handlebars. For the front mudguard attach the metal bracket with the loop (You will notice a “V” section at the back of the loop) and Insert this into handlebar stem and tighten.
- Page 5 Quick Assembly Guide Attach Pedals The pedals are attached to the bike by screwing them into the pedal arms. Each pedal is marked clearly R for right and L for Left. Use the multitool and tighten to 40 nm. Check for the letters “L” or “R” either as stickers or on the ends of the pedals to show which side the pedal needs to be fitted to.
- Page 6 Quick Assembly Guide Attach Stabilisers Remove the outer axle nut and washer from the rear wheel axle. Place the brace stabiliser clamp onto the axle and align the clamp so that the notch on the clamp fits into the rear frame drop out. Next, place the stabiliser arm onto the axle locat- ing it over the clamp and replace the washer and axle nut.
- Page 7 Quick Assembly Guide Turbospoke® The Turbospoke® fits to the rear chain stay on the opposite side to the chain. It is fitted exactly as per the fitting instructions included in the Turbospoke® box, however when putting the bolt through the black clamp (Right side), it should also pass through the hole on the specially designed frame bracket as shown.
- Page 8 Unique Bike Co Ltd 25 Rochdale Lane Heywood Manchester United Kingdom OL10 1PG Info@motoxbike.com...
