Quick User Manual

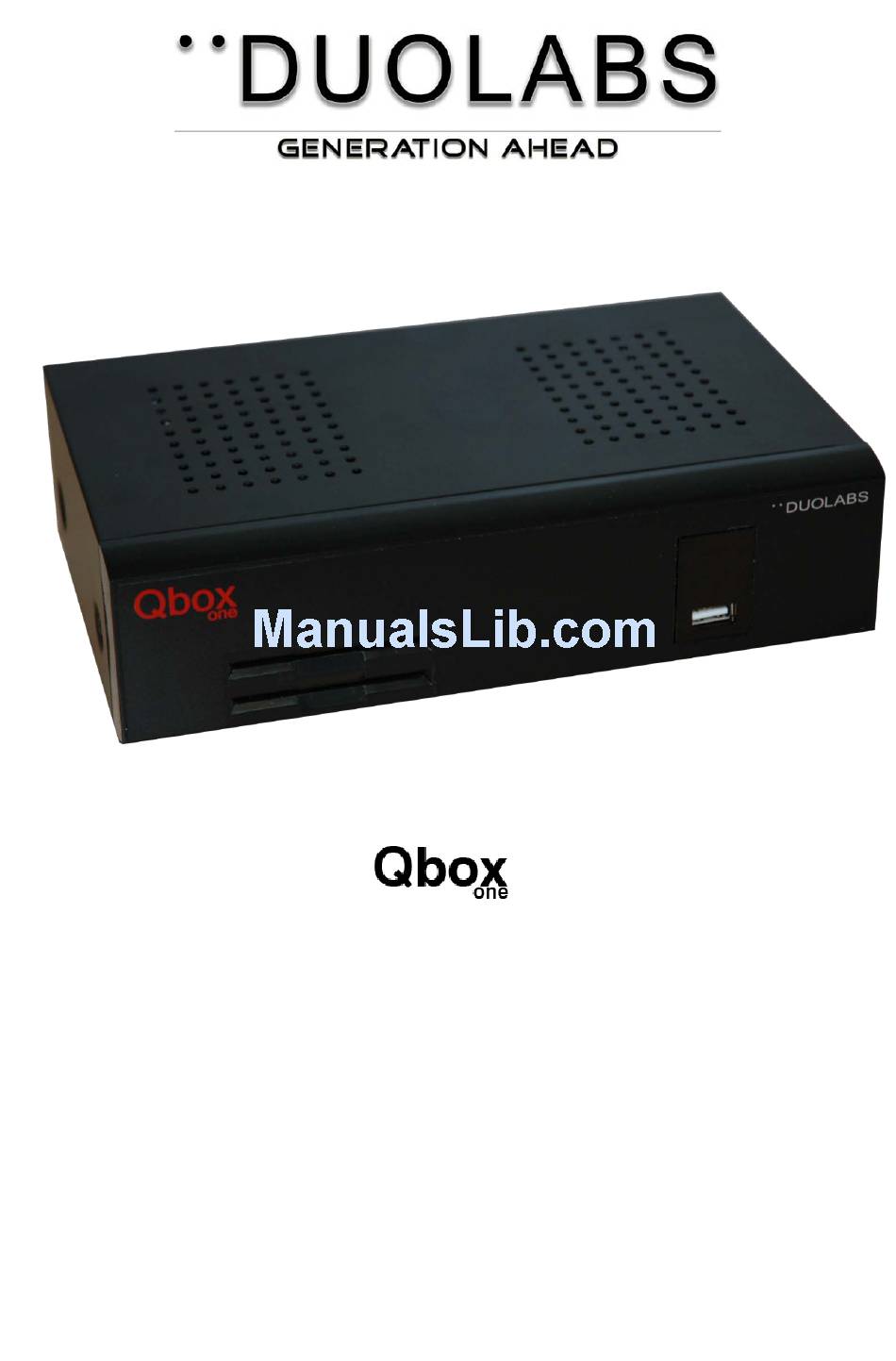

Digital satellite receiver for free and encrypted Digital Video Broadcasting
(DVB).
Communication-Port
Internal hard disk support.
Two Smartcard Readers
Linux OS
For Full User Manual please refer to www.q-box.tv
The QBox one carries the CE-Sign and fulfills all requirements from the EU.
Software: Release 1.5.2 on 15-09-2008. Subject to change without prior notification.
Advertisement
Summary of Contents for Duolabs Qbox One
- Page 1 Internal hard disk support. Two Smartcard Readers Linux OS For Full User Manual please refer to www.q-box.tv The QBox one carries the CE-Sign and fulfills all requirements from the EU. Software: Release 1.5.2 on 15-09-2008. Subject to change without prior notification.
- Page 2 Before initial operation on the receiver Safety instructions Please read the safety instructions completely and carefully, before using the Q-Box. The Manufacturer takes no responsibility for damages as a result of incorrect handling of the QBox. - The safety marking is located on the exterior of the bottom of the apparatus. - The mains plug shall be installed near the equipment and shall remain readily operable.
-
Page 3: Disposal Instructions
Duolabs S.p.A. Declares that this equipment complies to essential requisites and other relevant provisions of Directive 1999/5/CE (“ Radio and Telecommunications Terminal Equipments”). The declaration of conformity may be required to Duolabs S.p.A., via Baggi 28, 36061 Bassano del Grappa (VI). - Page 4 Packaging contents Please check the completeness of the box’s contents. Included in box: Qbox One Batteries (1,5V Mignon / AA / LR6) Remote Control Power Cord Power Supply 12Volts 1 IDE-Cable (already installed inside the device) 1 User manual...
-
Page 5: Smartcard Readers
Front View Smartcard Readers USB Port Satellite Antenna Terrestrial Antenna Scart Input & VCR Input/Output Input/Output Output Video /Audio Power Supply USB Port Output Rear View Serial Communication Reset Button Power Supply Digital Audio Output Input Ethernet Communication... - Page 6 Explanation Front Panel Double Smartcard Reader Insert your Smartcard with the golden chip facing down and forward into the Smartcard reader. Standby LED The Standby LED lights up red if the QBox is in standby mode. It lights up green if the QBox is powered on. Remote Control (RC) Led The remote control LED lights up every time the QBox receives a signal from the remote control.
- Page 7 Important notes about operation All functions of the QBox can be controlled via OSD-Menu (On-Screen-Display). This makes the handling of the QBox very easy for you. All options are indicated by four colored dots or beams (red, green, yellow, blue) in the OSD-Menu and can be started with the Option-Buttons on the Remote Control.
- Page 8 Menu Button If you are in TV- or RADIO-Mode, pressing this button will bring up the OSD main menu. The OSD main menu has the following options: -(1) TV Mode -(2) Radio Mode -(3) File Mode -(4) Information -(5) Shutdown -(6) Setup -(7) Games -(8) Timer...
- Page 9 Installation Turning the device on - Turning the device on - Insert 2 AA (1,5V) batteries, taking care to observe the + and - markings indicated inside, into the remote control. - Before using the QBox, please read the safety instructions. - Connect the LNB or antenna with a coaxial cable to LNB or Antenna In at your QBox.
-
Page 10: Appendix 1 - Dedicated Functions For Qbox
Appendix 1 - Dedicated Functions for QBox To get access to some special functions of your QBox you need to enter the Plug-In menu by pressing the blue button on your Remote Control Plug-In button Choose QBox manager and press OK QBox Manager Functions –... - Page 11 Terrestrial Scan Setup Find Terrestrial Channels – If your QBox is provided with DVB-T tuner (please check out your system configuration) it will start scanning the pre-installed frequencies of Terrestrial Transponders. If some services are not found you can either do a Manual Frequency Scan.
-
Page 12: Wi-Fi Connection Setup
Wi-Fi connection Setup Configure WiFi – If your QBox is provided with Wi-Fi module (please check out your system configuration) you need to enable the Wi-Fi interface simply pressing on Enable Wifi Interface area. And the new menu will appear. Configure WiFi –... - Page 13 Please make sure you enter the correct encryption keyset matching with the same keyset in your Router or Access Point.
- Page 14 Blind Scan Function What’s Blind Scan? – Blind Scan is a special function which allows the user to scan in a blind way for hidden temporary satellite feeds. This function is in QBox hardware performed. How to get started – Choose Blind Scan from the QBox manager and then set the following parameters: •...
- Page 15 Quick user guide www.q-box.tv All rights reserved...
