Summary of Contents for Questtel 1B-HDMI-PTG-ALZ

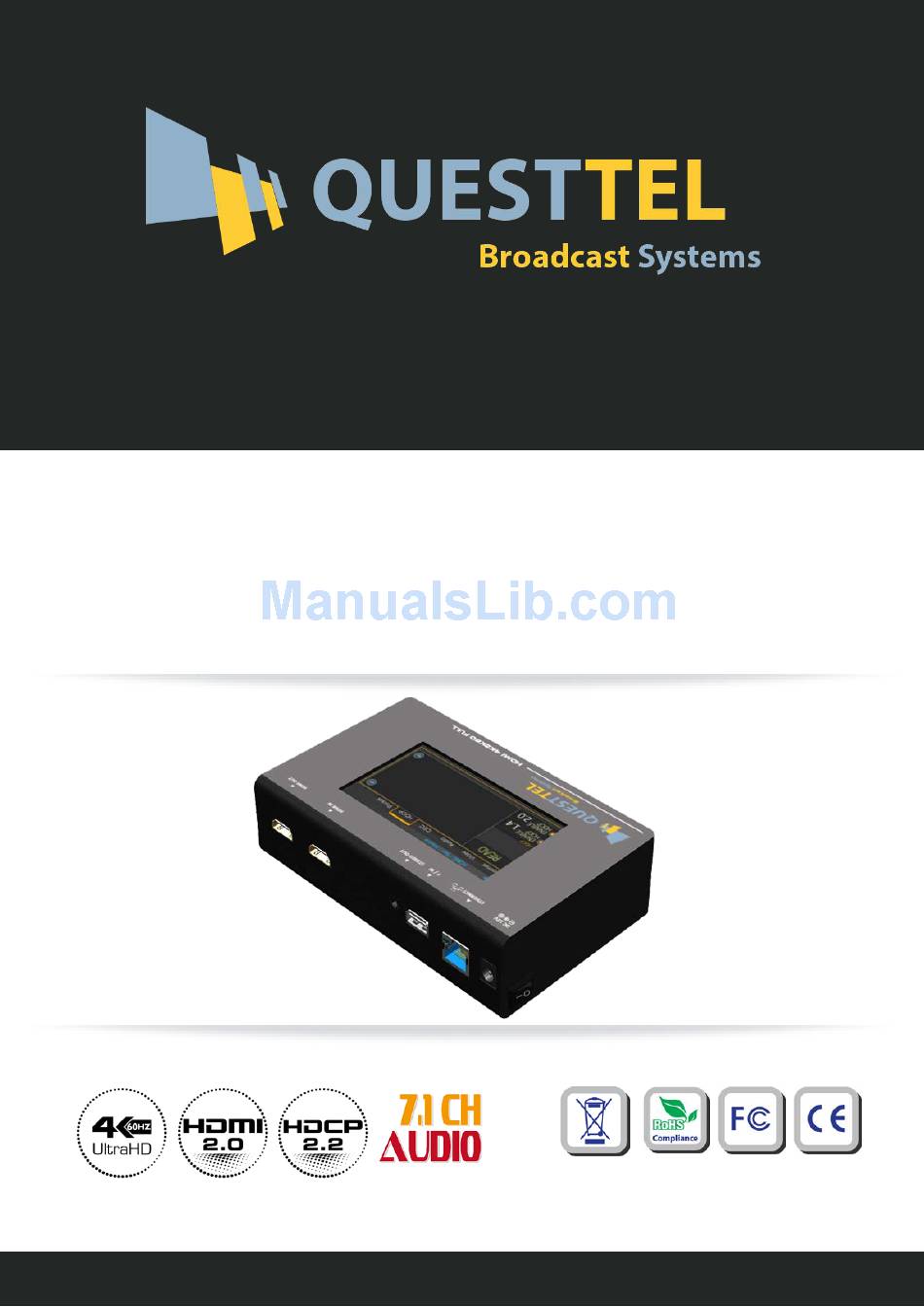

- Page 1 HDMI 2.0 Pattern Generator/ Analyzer USER MANUAL www.questtel.com sales@questtel.com...
-
Page 2: Table Of Contents
However, like all electronic equipments, the 1B-HDMI-PTG-ALZ should be used with care. Please read and follow the safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit. -
Page 3: Introduction
HDCP analyzer or loop test in one unit. QuestTel's 1B-HDMI-PTG-ALZ supports 8 channels of LPCM audio with selectable sample rate. One more... -
Page 4: Specifications
1B-HDMI-PTG-ALZ SDI Pattern Generator User Manual SPECIFICATIONS 1B-HDMI-PTG-ALZ Model Name Technical Role of usage Generator / Analyzer Video bandwidth Single link 600MHz [18Gbps] HDMI compliance HDMI 2.0 and below HDCP compliance HDCP 2.2 and below Video Support Up to 4K2K60 4:4:4 8bit, 4K2K60 4:2:0 16bit (HDR) -
Page 5: Panel Descriptions
1B-HDMI-PTG-ALZ SDI Pattern Generator User Manual PANEL DESCRIPTIONS 1B-HDMI-PTG-ALZ OUTPUT: HDMI output INPUT: HDMI input Stereo Out: Analog audio output USB: Connect to USB device for control or firmware update Ethernet: Ethernet control +12V DC: 12V 5A DC power jack... -
Page 6: Application Diagram
1B-HDMI-PTG-ALZ SDI Pattern Generator User Manual APPLICATION DIAGRAM www.questtel.com sales@questtel.com... -
Page 7: Menu Operation
1B-HDMI-PTG-ALZ SDI Pattern Generator User Manual MENU OPERATION The major functions of the device are listed below HDMI Generator HDMI Receiver HDCP Test EDID Test Loop Test Please refer the table below and the following section to know how to operate these functions. -
Page 8: Generator
The HDTV resolution is up to 4K2K 60Hz and PC resolution is up to 1920x1200 60Hz. 2. Rendering Test Patterns on an HDTV 1B-HDMI-PTG-ALZ provides multiple test patterns for user select to test HDTV. User can select the desired test pattern from the video pattern menu. -
Page 9: Receiver
HDMI source device. 2. Testing the Video from the HDMI source 1B-HDMI-PTG-ALZ supports the incoming video from HDMI source/device to ensure user is receiving a valid video signal by displaying the information of incoming signal. The video information also will inform user whether the HDCP is encrypted or not. -
Page 10: Hdcp Test
HDCP TEST 1B-HDMI-PTG-ALZ as HDCP Receiver When 1B-HDMI-PTG-ALZ set as receiver, it can verify HDCP of video player or other DUT (Device Under Test). 1B-HDMI-PTG-ALZ provides three options (HDCP 1.4 / HDCP 2.2 / no HDCP) for users to select and confirm the HDCP authentication of DUT. -
Page 11: Edid Analysis
1B-HDMI-PTG-ALZ SDI Pattern Generator User Manual EDID ANALYSIS 1B-HDMI-PTG-ALZ offers the most convenient way for user to analyze the EDID. You can verify, view and learn the EDID of an HDMI HDTV or other devices. Procedure of EDID Analyze: Make sure the connections between the 1B-HDMI-PTG-ALZ HDMI output port and the device. -
Page 12: Loop Test
1B-HDMI-PTG-ALZ offers the unique estimator for evaluating the quality of cables or DUT. Users can simply connect the cable or DUT to 1B-HDMI-PTG-ALZ to form a loop, the monitor will examine the HDMI bitstream pixel by pixel. The measurement statistics will be displayed on screen and offer useful information for building up robust A/V system. -
Page 13: Ethernet Control (Tcp/Ip)
1B-HDMI-PTG-ALZ SDI Pattern Generator User Manual ETHERNET CONTROL (TCP/IP) 1B-HDMI-PTG-ALZ also provides user control through Ethernet. The Ethernet control includes many major functions, it can offer user develop software to do advance setting. (TCP Port: 6133) Reply Format: Received = ACK + Feedback Date ACK: 0xaa 0xbb 0xcc Feedback Date: Data0 Data1 Data2…. - Page 14 1B-HDMI-PTG-ALZ SDI Pattern Generator User Manual Resolution: Index Resolution Index Resolution Index Resolution 720x480i@60 0x13 1920x1080p@24 0x26 1920x1200pRB 720x576i@50 0x14 1920x1080p@23.976 0x27 3840x2160p@60 720x480p@60 0x15 640x480p@60 0x28 3840x2160p@59.94 720x576p@50 0x16 640x480p@75 0x29 3840x2160p@50 1280x720p@60 0x17 800x600p@60 0x2a 3840x2160p@30 1280x720p@59.94 0x18...
- Page 15 1B-HDMI-PTG-ALZ SDI Pattern Generator User Manual Default Pattern: Index Default Pattern Index Default Pattern Index Default Pattern Ramp Green H 1 0x17 Stair Blue 2 0x27 V Stripe Blue Ramp Blue H 1 0x18 Stair White 1 0x28 H Stripe Red...
- Page 16 1B-HDMI-PTG-ALZ SDI Pattern Generator User Manual Rate Index 48 KHz 96 KHz 192 KHz 32 KHz 44.1 KHz Rate Number Index 2 Ch 2.1 Ch 5.1 Ch 6.1 Ch 7.1 Ch Number TX HDCP Index HDCP 1.4 HDCP 2.2 Type0 HDCP 2.2 Type 1...
-
Page 17: Upgrade 1B-Hdmi-Ptg-Alz
1B-HDMI-PTG-ALZ. Procedure of Firmware Upgrade: * Before updating the firmware of 1B-HDMI-PTG-ALZ, please ensure the file of new firmware files are in the root directory of USB Flash Drive. The file suffix is .dat. - Page 18 SDI Pattern Generator User Manual 3~5 seconds. While updating, please do not remove the USB Flash Drive. After completing the firmware update, please reboot the 1B-HDMI-PTG-ALZ. Make sure the arm.dat file is in the root directory of USB.
- Page 19 Create a folder (folder name is usr_pic) on USB Flash Drive. Ensure the file of pattern which user desire to update on the 1B-HDMI-PTG-ALZ is in the usr_pic directory of USB Flash Drive. The file suffix is .jpg.
-
Page 20: Eye Pattern
The test result of this device (with Simplo battery) is shown as below: This result is representative of the 1B-HDMI-PTG-ALZ. Each 1B-HDMI-PTG-ALZ’s performance is closed to these results but not exactly the same. Summary of Results www.questtel.com... - Page 21 1B-HDMI-PTG-ALZ SDI Pattern Generator User Manual Clock Jitter and eye pattern www.questtel.com sales@questtel.com...
