PROFESSIONAL KARAOKE MIXER
MODEL:MX-30 DSP
VOL
MIC 1
PEAK
0
10
VOL
MIC 2
PEAK
0
10
VOL
MIC 3
PEAK
0
10
EFFECT VOL
ECHO VOL
SELECTOR
EFFECT
ST
MO
0
10
0
10
VOL
DISCO
MUSIC
OFF
ON
0
10
ECHO
LOW
MID
HI
0
10
-15
15+
-12
12+
-15
15+
ECHO
MID
HI
LOW
0
10
-15
15+
-12
12+
-15
15+
ECHO
LOW
MID
HI
0
10
-15
15+
-12
12+
-15
15+
ECHO RPT
ECHO DLY
REVERB VOL
REVERB TIME
0
10
0
10
0
10
0
10
BAL
LOW
MID
HI
L5
5R
-15
15+
-12
12+
-15
15+
MX-30 DSP
PROFESSIONAL KARAOKE MIXER
b4
b3
b2
b1
#1
VOICE
3D SOUND
AV 4
AV 3
AV 2
MIC MASTER VOL
MUSIC MASTER VOL
18
18
20
20
16
16
22
22
14
14
24
24
12
26
26
10
10
28
28
8
8
6
30
6
30
32
32
4
4
34
34
2
2
36
36
0
0
#2
#3
#4
AV 1
POWER
Advertisement
Table of Contents
Summary of Contents for KOK MX-30 DSP
- Page 1 PROFESSIONAL KARAOKE MIXER MODEL:MX-30 DSP MX-30 DSP PROFESSIONAL KARAOKE MIXER ECHO MIC 1 PEAK ECHO MIC 2 PEAK ECHO MIC 3 VOICE 3D SOUND AV 4 AV 3 AV 2 AV 1 PEAK EFFECT VOL ECHO VOL ECHO RPT ECHO DLY...
- Page 3 CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN...
-
Page 4: Safety Instructions
Safety Instructions CAUTION :READ THIS BEFORE OPERATING YOUR UNIT 1 . To e n s u r e t h e f i n e s t p e r f o r m a n c e , p l e a s e r e a d t h i s m a n u a l c a r e f u l l y , k e e p i t i n a s a f e p l a c e f o r f u t u r e r e f e r e n c e . - Page 5 Specifications and Features Specifications Amplifier Section Power Consumption Audio Output Input Impedance 47KΩ Input Sensitivity 200mV Bass Control +/-15dB(100Hz) Mid Control +/-15dB(1KHz) Treble Control +/-15dB(10KHz) T.H.D <0.1% Frequency Response 20Hz-20KHz -1dB Noise Ratio >90dB Power Source 230/115V 50/60Hz Dimension 430(W)X160(H)X350(D)MM Weight: Microphone Section Connector...
-
Page 6: Front Panel Features

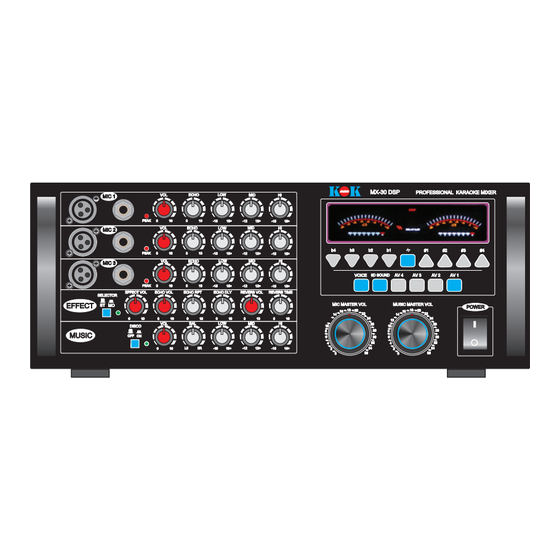

Front Panel Features MX-30 DSP PROFESSIONAL KARAOKE MIXER ECHO MIC 1 PEAK ECHO MIC 2 PEAK ECHO MIC 3 VOICE 3D SOUND AV 4 AV 3 AV 2 AV 1 PEAK EFFECT VOL ECHO VOL ECHO RPT ECHO DLY REVERB VOL... -
Page 7: Rear Panel Features
AV 2 BAL SUB OUT BAL LINE OUT BAL AUDIO INPUT MIC INPUT VOLTAGE SELECT 115V PROFESSIONAL MIXER CAUTION MODEL:MX-30 DSP VIDEO INPUT RISK OF ELECTRIC INPUT:AC115V/230V SHOCK DO NOT OPEN 50WATTS PEAK AV 1 AV 2 AV 3 AV 4... -
Page 8: Advance Operation
Switching A/V Channels Sine the MX-30 DSP has 4 A/V inputs ,you can switch between them via the INPUT button . Let's say you are performing live ,and want to do 4 songs back to back ,but they are on different discs! Instead of stopping to switch CD'... -
Page 9: Getting Connected
Av1 AV2 ,and Av3, Each A/V channel has a set of L/R AUDIO IN jacks and a VIDEO IN jack .For each external A/V device ,connect a stereo RCA cable from the L/R AUDIO OUT jacks to a L/R AUDIO input jacks on the MX-30 DSP, Then connect cable from a VIDEO OUT jack on the A/V device to the VIDE IN jack in the MX-30 DSP. -
Page 10: Troubleshooting
The input selector (Av1 Av2 Av3 Av4) is set to the wrong position . Make sure the cables to the correct source channel. The output jacks of the MX-30 DSP may not have proper cable connected. Make sure the cables from the No output is being... -
Page 11: Purchase Record
Purchase Record FOR YOUR RECORDS Please record the model number and serial number below for easy reference in case of loss or theft these number are located on the rear panel of the unit space is also provided for other relevant information Model Number: Serial Number: Date Purchase:...
