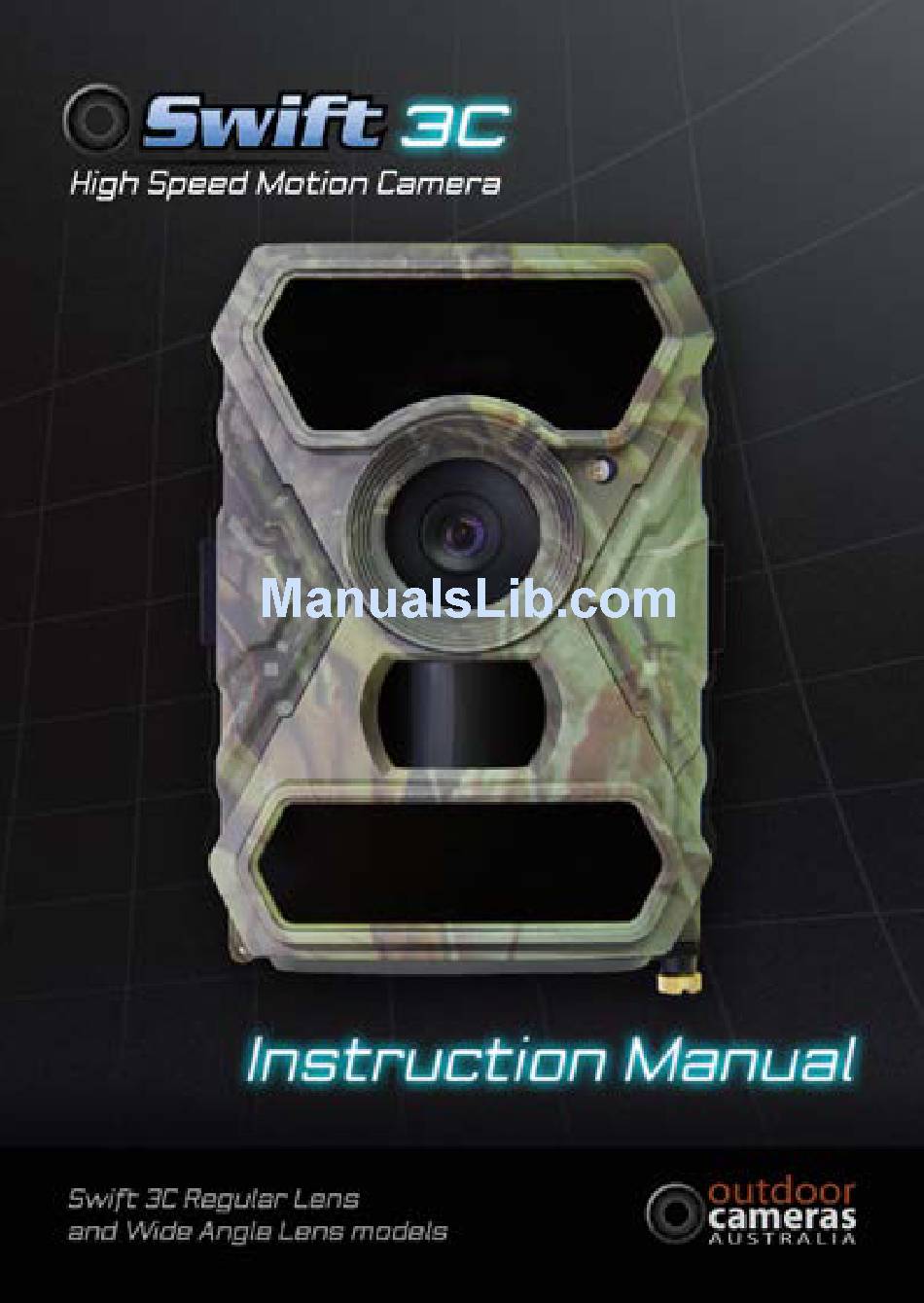

Summary of Contents for Outdoor Cameras Australia Swift 3C Series
-
Page 2: Table Of Contents
Introduction The OCA Swift digital motion camera is an extremely versatile unit which you may find more uses for than your original Contents intent. It is perfect for surveillance on farms, large commercial premises, illegal roadside dumping, and residential areas. Due to their exceptional speed they are also great for wildlife monitoring both recreationally and for scientific 1.0 Introduction ......................- 3 - studies. -
Page 3: Power Supply
Please manually turn ON as if you want to do further configuration. charge the batteries in the camera. 5. Don’t interrupt the power supply during system upgrade, please return it back to Outdoor Cameras Australia if the c. Power Adaptor—Security Surveillance Purpose device doesn’t work after upgrading. -
Page 4: Whole View And Details Of Camera
Whole View and Details of Camera 2.1 Figure 1: Front View of Camera; 2.2 Figure 2: Bottom View of Camera; DC in Push slightly to open this cover 25 IR LEDs Light Sensor TV out Lens SD card slot 56 IR LEDS PIR Sensor in Total USB port... -
Page 5: Function Keys & Other Details
2.3 Figure 3: Internal, Side and Back View of Camera 2.4 Function Keys & Other Details a. Switch Buttons Display LCD 2” Camera/Video switch GPRS switch Navigation/Modes Camera/Video Power switch IR LEDs Group switch Battery Slot ON/OFF 1. Switch ON to enable camera to work; Note: indicator light flashes 5 times before camera starts to work on PIR (PIR Auto Mode) IR LEDs... -
Page 6: Quick Start
Operation List 4.1 How to View Your Images or Video Quick Start Switch ON “Power Switch”, Press “OK” once to enter Test mode, press arrow button “” to enter Playback; press 3.1 How to Start the Camera? “” and “” for selection, “OK” to play photo/video. Switch ON “Power Switch”... - Page 7 Settings Programmable Options Settings Programmable Options Select “ON”, press “OK”, to set 4 digits/ letters for each camera. The name is then printed High, Middle, Low Cam ID across the bottom of the image. Used for identifying which camera images are from. Higher sensitivity is 1) more sensitive to movements by smaller subjects;...
-
Page 8: Specification
Specifications Image Sensor 5 Mega Pixels Colour CMOS Effective Pixels 2560x1920 Other Day/Night Mode IR range Settings Programmable Options IR Setting Top: 25 LEDs, Foot: 31LEDs Memory SD Card (8MB – 32 GB) Language English… Operating keys Month : date : year; hour : minute : second Lens (Wide lens model) F=3.0;... -
Page 9: Trouble Shooting
6.2 Camera Stops Taking Images or Won’t Take Images Mounting Strap; Tripod 1. Please make sure that the SD card is not full. If the card is full, the camera will stop taking images. You can turn on Operating Temperature -30°C to 60°C the Cycle Recording to avoid such problems. -
Page 10: Warranty
Warranty Based on a strict Quality Control system, we are happy to offer our customers a two year warranty. Our products are warranted against defects in materials and workmanship for a period of two years from the date of original purchase. If a defect exists, we will, either repair the product at no charge using new or refurbished parts; or exchange the product with a functionally equivalent product that is new or refurbished.
