Summary of Contents for TEATRO TS-1

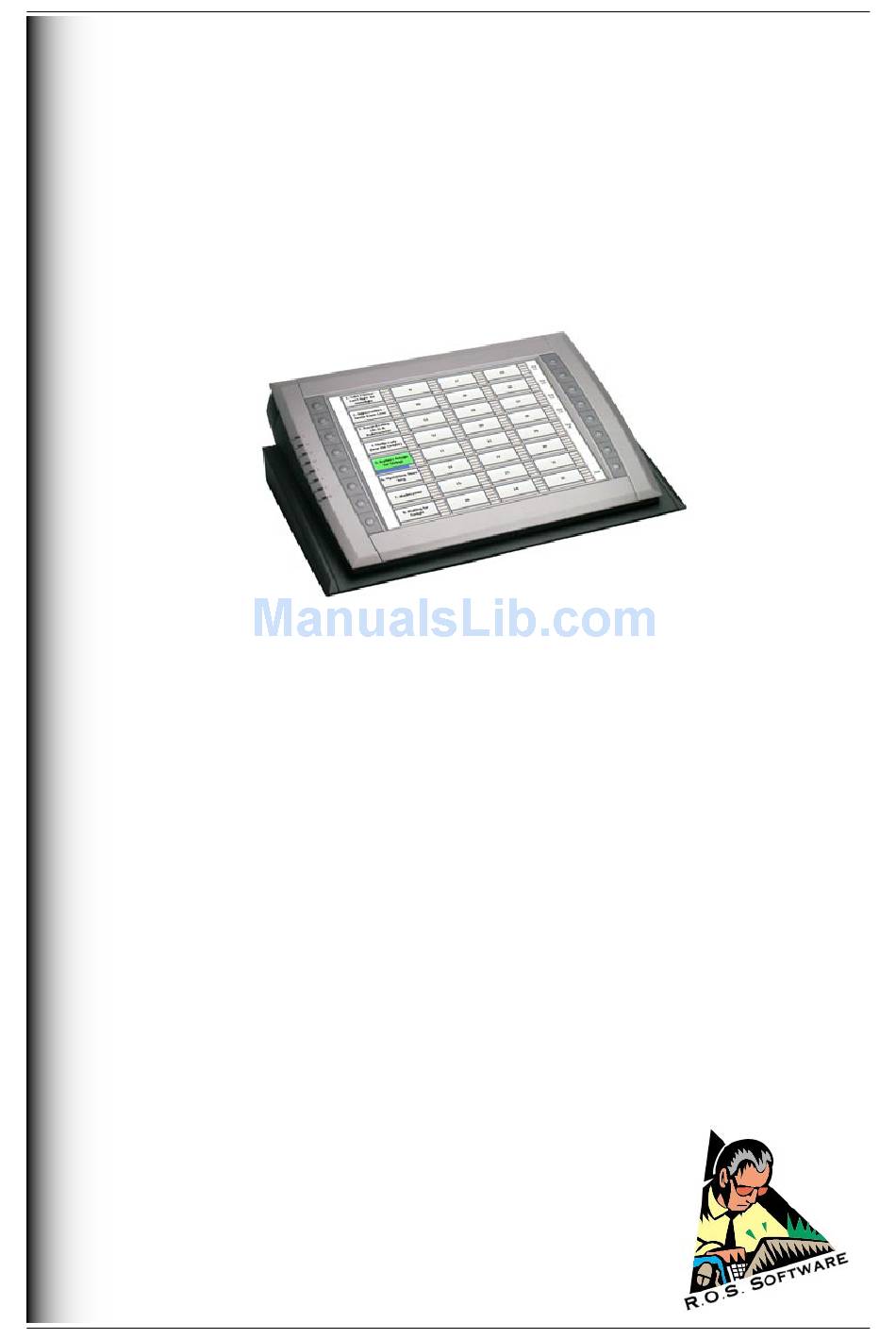

- Page 1 Teatro Teatro Teatro TS-1 Touchscreen Installation and Operation 10/2006 designed by © 2006 R.O.S. Software / Germany...
- Page 2 TS-1 Touchscreen Manual SOFTWARE LIMITED WARRANTY To the original customer purchasing this product in the first instance only, R.O.S. provides the following warranties: 30 Day Satisfaction Guarantee. If you are dissatisfied with the Software for any reason we will refund your money for a period of 30 days from the date of original purchase.
-
Page 3: Table Of Contents
Configuration with two monitors (USB version) ...............9 Graphics card setup ......................10 Installalling the touchscreen driver .................12 Additional touchscreen driver settings ................14 Touchscreen display settings (12.1“ Touchscreen) ............16 Touchscreen display settings (15“ Touchscreen) ...............17 Touchscreen options within Teatro ...................18 Additional information ....................20... - Page 4 TS-1 Touchscreen Manual Touchscreen TS-1 with Teatro‘s main screen Touchscreen TS-1 with special „buttons only“ screen...
-
Page 5: Introduction
Introduction The TS-1 Touchscreen can be used to control the Teatro software in places where the usual PC, monitor, mouse and keyboard setup is not possible or not desired. The touchscreen offers control about the audio playback process similar to a remote control for tapemachines or CD/Cart Players. -
Page 6: Installing The Touchscreen (Rs232 Version)
Configuration with a single monitor only Teatro uses only the touchscreen as the main monitor. In this setup it is only possible to display the normal Teatro main screen OR the special touchscreen operation display. It is possible to switch between these two displays with the R8 hardware button located on the touchscreen or the „Touchscreen“... -
Page 7: Configuration With A Single Monitor Only (Rs232 Version)
5. Configuration with two monitors (RS232 version) When using Teatro with the usual PC monitor plus the touchscreens TFT display, the following connections have to be made. Connector 1 of the double- head graphics card must be... -
Page 8: Installing The Touchscreen (Usb Version)
Configuration with a single monitor only Teatro uses only the touchscreen as the main monitor. In this setup it is only possible to display the normal Teatro main screen OR the special touchscreen operation display. It is possible to switch between these two displays with the „Close“ button located on the touchscreen or the „Touchscreen“... -
Page 9: Configuration With A Single Monitor Only (Usb Version)
Configuration with two monitors (USB version) When using Teatro with the usual PC monitor plus the touchscreens TFT display, the following connections have to be made. Connector 1 of the double- head graphics card must be PC mouse The PC‘s keyboard... -
Page 10: Graphics Card Setup
TS-1 Touchscreen Manual Graphics card setup When using a double-head graphics card, some additional settings must be made within WindowsXP, to make sure both moni- tors will receive the proper information. If a Matrox G450/G550 was installed in the PC, WindowsXP will automatically detect this type of card and will install its own set if graphic drivers. - Page 11 TS-1 Touchscreen Manual • Now select monitor 2 • Select the option „Extend my Windows desktop onto this monitor“ and confirm with „Apply“. • Set the maximum resolution for your type of touchscreen. The 12“ touchscreen can be set to 800x600 and the 15“...
-
Page 12: Installalling The Touchscreen Driver
Installalling the touchscreen driver For additional functions of the touchscreen it is necessary to install the touchscreen driver software. The driver software can be found on the Teatro CD in the folder D:\Elotouch Drivers • Start the setup by double-clicking the file „EloSetup.exe“... - Page 13 TS-1 Touchscreen Manual • The driver software will now install and you have the option to launch the calibration dialog: CAUTION! VERY IMPORTANT WHEN USING 2 MONITORS! If the setup screen shown below will NOT be displayed on the touchscreen but on the normal PC monitor, you have to push the „ESC“...
-
Page 14: Additional Touchscreen Driver Settings
TS-1 Touchscreen Manual Additional touchscreen driver settings The touchscreen properties dialog can be accessed through the WindowsXP „System“ dialog or you can select the system tray icon: • Move the mousecursor to the upper or lower screen (depending on where your taskbar is located) of your main monitor. - Page 15 TS-1 Touchscreen Manual • Select „Sound“ and switch off the option „Beep on touch“, otherwise the PC will always generate a beep sound whenever you touch the screen. Deactivate The touchscreen setup is now finished. On the next page we will describe how to set the brightness, contrast and color etc. of the...
-
Page 16: Touchscreen Display Settings (12.1" Touchscreen)
TS-1 Touchscreen Manual Touchscreen display settings (12.1“ Touchscreen) Like other monitors, the touchscreen has options to change the brightness, contrast, color etc. The buttons for these settings are located on the bottom side of the touchscreen: Description of the buttons: 1. -
Page 17: Touchscreen Display Settings (15" Touchscreen)
TS-1 Touchscreen Manual Touchscreen display settings (15“ Touchscreen) Like other monitors, the touchscreen has options to change the brightness, contrast, color etc. The buttons for these settings are located on the bottom side of the touchscreen: Description of the buttons: •... -
Page 18: Touchscreen Options Within Teatro
Teatro can be used with a single monitor/touch screen or it can be used with a monitor and a touch screen together. When using a touch screen only and the touch screen display is visible, the Teatro main screen is hidden under the touch screen display. - Page 19 Touch Screen Position The touch screen will be visible on the second display simply because Teatro puts the left edge of the touch screen dialog next to the right edge of Teatro‘s main page. For a proper placement of the touch screen dialog the following settings can be made: - Main: The touch screen will be placed on the same display as the Teatro main page.
-
Page 20: Additional Information
Additional information Hardware The Teatro touchscreen TS-1 comes with a pressure sensitive TFT display of the newest generation. The TFT display itself was built and supplied by the renowned company „Elo TouchSystems“ (www.elotouch.com). You may know that older touchscreens in earlier years could only detect the touch of a finger while measuring the resistance of the skin, which in some cases could lead to a situation where it was not possible to detect the touch properly and generate errors while using the touchscreen.
