SOLOIST-2S
INTRODUCTION
ADTEC's SOLOIST-2S MPEG 2 Playback System with built-in switcher is the ideal local origination
playback solution. The SOLOIST-2S incorporates a built-in video and balanced audio switcher that
automatically switches "On Air" when the MPEG 2 decoder is running, when playback is finished, the switch
is automatically routed back to the "Network Input". An Auxiliary input is provided too; this enables the
switching of an alternate audio and video source for live events. ADTEC is pleased to offer the SOLOIST-2S
to the video professional and is confident that it will provide years of maintenance free broadcast quality
MPEG 2 playback.

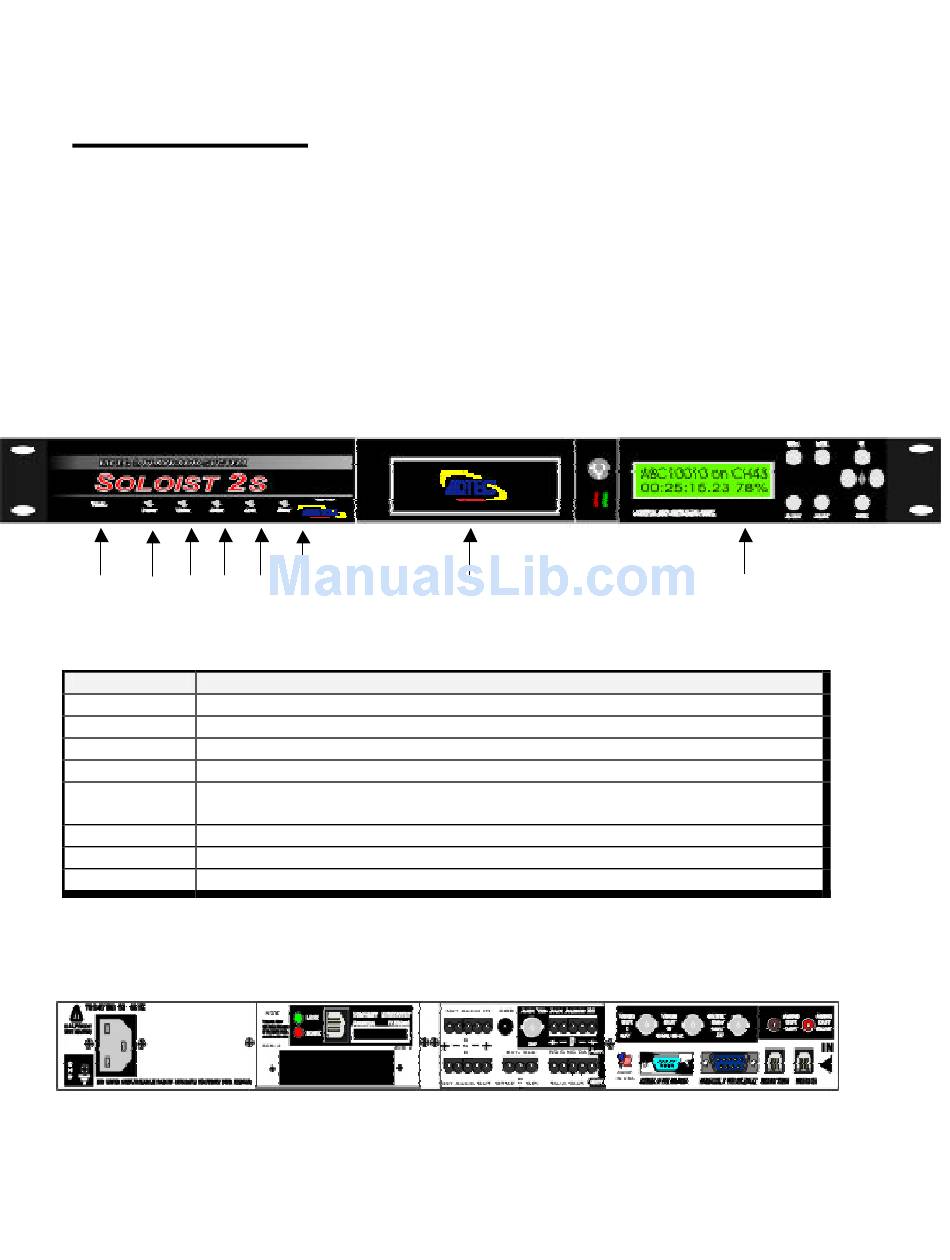

SOLOIST-2S
(Front View)
A
B
C
D
Identifier
Description
A
Recessed Reset switch. Must be held for one second to initiate reset.
B
Power LED, illuminates when AC power is applied to unit.
C
Video LED illuminates during video playback.
D
Drive LED, illuminates during either SCSI or IDE host controller activity.
E
Link LED, illuminates when the electrical 10 Base T Ethernet connections are
made correctly to a hub or server.
F
Busy LED illuminates when Ethernet activity occurs.
G
IDE Drive bay
H
SOLOIST-2S Control and Switching Module
SOLOIST-2S
(Rear View)
4/18/01
ADTEC, Inc.
VERSION 1.0
E
F
V1.0-1
MPEG 2 PLAYBACK SYSTEM
G
KEYPAD
H
USA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Soloist 2S and is the answer not in the manual?

Questions and answers

Related Manuals for Adtec Soloist 2S

Summary of Contents for Adtec Soloist 2S

  • Page 1 “Network Input”. An Auxiliary input is provided too; this enables the switching of an alternate audio and video source for live events. ADTEC is pleased to offer the SOLOIST-2S to the video professional and is confident that it will provide years of maintenance free broadcast quality MPEG 2 playback.
  • Page 2 KEY PAD The SOLOIST-2S provides for simple, intuitive configuration and status through the front panel Key Pad and LCD display. A PC running ADTEC’s Symphony-Pro in Windows NT4.0 or 2000 is required for detailed configuration and scheduling. SOLOIST-2S KEY PAD and LCD 4/18/01 V1.0-2...

  • Page 3: How To Use The Keypad

    5) Press the ESC key to return to the main menu. MENUS Main, Source, Audio Level, Date & The SOLOIST-2S menus are as follows: Time, Serial Port, UNIT Name, Network Name, Network Channel, Host Mode, EMT Setting, DUP Drive. 4/18/01 V1.0-3 ADTEC, Inc.
  • Page 4 (Three Digit numeric Cable System or T&B Channel Number) Host Mode (Ethernet host mode) IP Address (Unit IP Address) IP Mask (Unit IP Mask) Gateway IP Address (Unit Gateway IP Address(s)) EMT Setting (Ethernet Multicast Transfer) Duplicate Drive (Automatic copy source drive ID) 4/18/01 V1.0-4 ADTEC, Inc.

  • Page 5: Menu Functions

    Hold RIGHT, ESCAPE and MODE keys This key function provides a soft reset of the Soloist 2 and simultaneously to reset the unit. SOLOIST-2S. (Pressing the reset button on the front panel also !!!!!!!!!!!! RESET SEQUENCE !!!!!!!!! resets the Soloist 2) 4/18/01 V1.0-5 ADTEC, Inc.
  • Page 6 SOLOIST-2S input will provide proper termination in both power on and off states. It is recommended to integrate the audio using A or C. If the audio still sounds distorted in either of these scenarios, the input level to the SOLOIST-2S must be lowered to 1 V P-P. 4/18/01 V1.0-6 ADTEC, Inc.

  • Page 7: Date And Time

    This is the Date and Time format where, MM= Month, DD= Date, YY= Year, WD= Weekday, HH= Hours MM= Minutes, SS= Seconds (24 hour clock), DS= Daylight Savings= Y, N. The Soloist 2S can synchronize to Network Time protocol (NTP) servers. For more information, refer to the networking section of the API manual.
  • Page 8 C-Net (Rockwell) 5614XE (57.6 Kbs) ATE0V0&K4&D0&S0%C1S0=1 Hi-Val V1456VQE (57.6 Kbs) ATE0V0&K4&D0&S0%C3S0=1 Practical PM144T (14.4 Kbs) ATE0V0&K4S0=1 Peripherals Practical PM336T (36.6 Kbs) ATE0V0&K4S0=1 Peripherals USR Sportster 56K Sportster (57.6 Kbs) ATE0V0&H2&D0&R1&S0&K2&M4SO=1 User Defined None User entered string. 4/18/01 V1.0-8 ADTEC, Inc.
  • Page 9 This being the case, providence dictates using a modem for which the initialization string is already known. The easiest way to do this is to purchase a modem from Adtec. To enter the initialization string, press the mode key until the Serial Port screen appears then press UP.

  • Page 10: Network Name

    MODE defines whether the SOLOIST-2S will function as a server or client in the networked environment. Typically all SOLOIST-2S’s are configured as Server’s since ADTEC’s Server Host Mode can also be a client. The SOLOIST-2S also supports Mirroring via Server or Client for automatic FTP retrievals of data.
  • Page 11 In order to distribute files in the least amount of time EMT has been highly optimized and will use in excess of 90% of the available bandwidth on a 10baseT network. If your ADTEC equipment is connected to the rest of your LAN or a WAN it is highly recommended that a router/bridge be used to either block all broadcast or EMT transmissions only.
  • Page 12 Duplicate Drive Number SCSI ID Duplicate Drive Number SCSI Host ID number (reserved) IDE ID Dup Drive Table Duplicate Drive Number Duplicate Drive Number All IDE CD or DVD Rom drives are placed on the IDE Bus number 4/18/01 V1.0-12 ADTEC, Inc.
  • Page 13 **********Warning, DO NOT connect this output to the modulator************ Network Video In (From IRD/IRT) Unbalanced LEFT and RIGHT MPEG 2 audio output, 56K Ohm output impedance. (Preview audio typically used in conjunction with video output 2 (M)). 4/18/01 V1.0-13 ADTEC, Inc.
  • Page 14 Network output. IE. If the left side is used for in use the left side for out. Non- terminating input. Connect an external resistor or select –6 dB in the NetSet to terminate. See page 8 for more details. 4/18/01 V1.0-14 ADTEC, Inc.
  • Page 15 PC Communications Port Interface Adapter DB9F to RJ-11 DB9 Female DB25 Function RJ-11 RJ-11 Function Notes Short to 7 inside 9 pin housing Transmit Receive No Connect Ground No Connect Short to 1 inside 9 pin housing No Connect 4/18/01 V1.0-15 ADTEC, Inc.
  • Page 16 25 pin housing Short to 4 and 5 inside 25 pin housing No Connect Ground 9-19 No Connect Short to 4 and 20 inside 25 pin housing No Connect No Connect 23-25 No Connect Communications Cable 4/18/01 V1.0-16 ADTEC, Inc.
