Summary of Contents for ApeLight Mini

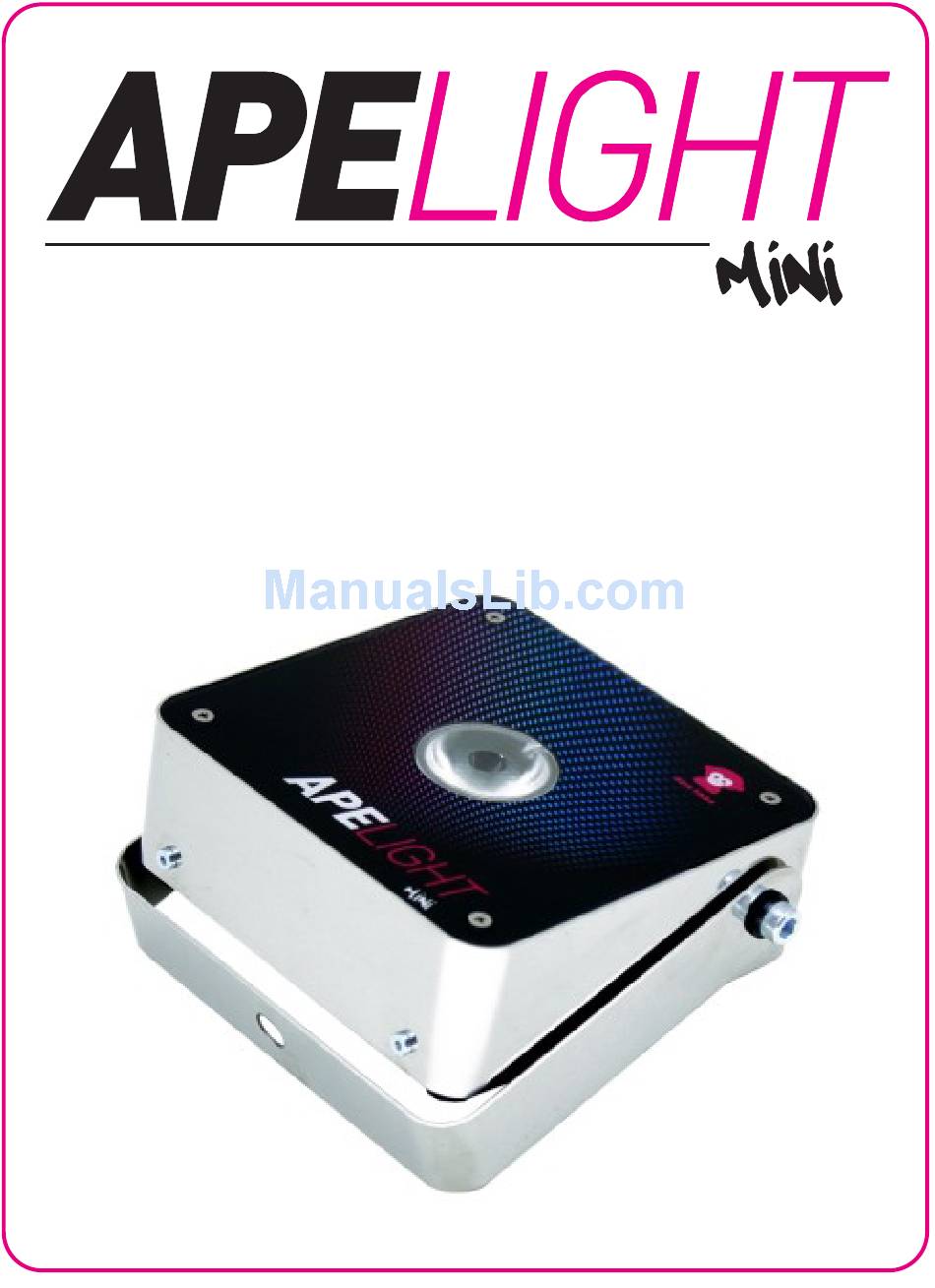

- Page 1 BEDIENUNGSANLEITUNG INSTRUCTION MANUAL...
-
Page 2: Safety Instructions
ApeLight mini in the Tourcase (optional), the ApeLight mini Tourcase must remain open. › Do not use the ApeLight mini in areas where the use of radio equipment is prohibited. › Do not look directly into the LED. This can cause damage to the eyes. -
Page 3: Operation
Operation Turn on and off › Press the button on the back of the ApeLight mini for about 1 second. The unit turns on and remembers the previously selected program/brightness. - Page 4 › Within this period (group LED flashing), you can assign another group by pressing the "Group" button on the remote control one more times. The ApeLight mini will flash blue for a short time to acknowledge that. Note: The remote control switches to a power-save mode after some minutes and will not detect the power-on event of a ApeLight mini.
- Page 5 English current Group brighter previous next program program dimmer blackout sound to speed up light slow down/ select stop group flashlight Hint: To control all groups at the same time, press and hold the "Group" button for about 2 seconds.
-
Page 6: List Of Programs
English List of Programs Program White Orange Yellow Lime Green Cyan Cyan-Blue Blue Blue-Magenta Magenta Red Pastel Green Pastel Blue Pastel Blue > Red Magenta > White White > Blue Red Pastel > Green Pastel > Blue Pastel Yellow > Magenta > Blue Rainbow Hint: A long press on ‹... -
Page 7: Battery State/Charging
English Battery State/Charging › If the brightness of the ApeLight mini is reduced to zero (by "Blackout" or "Dimmer" button of the remote control), the device will show the battery state at low brightness: o LED glows green: battery level above 50%... - Page 8 Transceiver. As soon as this mode is active, all ApeLight minis within the same group will use the DMX data. › If a ApeLight mini does not receive any DMX data for more than 10 seconds, it will automatically switch back to the remote control mode.
- Page 9 English › The group, the DMX address and the DMX mode of each ApeLight mini can be changed at a W-APE- Transceiver (or MobiLight4). Directly after turning on a ApeLight mini, all W-APE Transceiver will change the display menu and show the values of the ApeLight mini: The menu items are: "Remote...
-
Page 10: More Functions And Updates
Instructions can be found at www.apelabs.com. Reset respectively update of firmware Press and hold the power button of the ApeLight mini for about 10 seconds. The device will restart and stay for about 15 seconds in update mode (flashes red). -
Page 11: Troubleshooting
English Troubleshooting Possible Problem Reason Solution ApeLight mini Sound to Press the microphone is dimmed light mode button on the remote and flashes is active. control, to deactivate sometimes. the sound to light mode. ApeLight mini regular Long press (2s) on... - Page 12 Battery is Connect the 18V power deeply supply or charge the discharged. ApeLight mini in the Tourcase. It may take some minutes until the charge will start. ApeLight mini regular The battery status will glows...
- Page 13 English Disposal If the ApeLight mini is to be put out of operation definitively, take it to a local recycling plant for a disposal which is not harmful to the environment. Never throw exhausted batteries or defective rechargeable batteries into the household rubbish: Always take them to a special waste disposal (e.
-
Page 14: Dmx Modes/Dmx Sheets
DMX Sheets DMX Modes/DMX Sheets 3 Channel Mode: Dimmer, Program, Speed This mode can be used with many Ape Labs products, e.g. LightCan, MobiLight4, ApeStick4, ApeLight, ApeLight mini and ApeLight maxi. Function 0 .. 255 Dimmer 0 .. 100% 0 .. 5... - Page 15 (Default Mode) This is the default DMX mode. This mode can be used with many Ape Labs products, e.g. LightCan, ApeStick4, ApeLight mini and ApeLight maxi. If your lighting desk has no matching profile, use a "Generic/RGBW LED 8 Bit".
- Page 16 DMX Sheets 8 Channel Mode: Red, Green, Blue, White / 16Bit This mode can be used with many Ape Labs products, e.g. LightCan, ApeStick4, ApeLight mini and ApeLight maxi. If your lighting desk has no matching profile, use a "Generic/RGBW LED 16 Bit".
- Page 17 LSA Projects Ltd The Barn White Horse Lane Witham Essex CM8 2BU +44 (0)1376 501199 sales@LSAprojects.co.uk www.LSAprojects.co.uk f35fd8b813...
