ESS SYNTECH B-615 User Manual

Bravo series
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

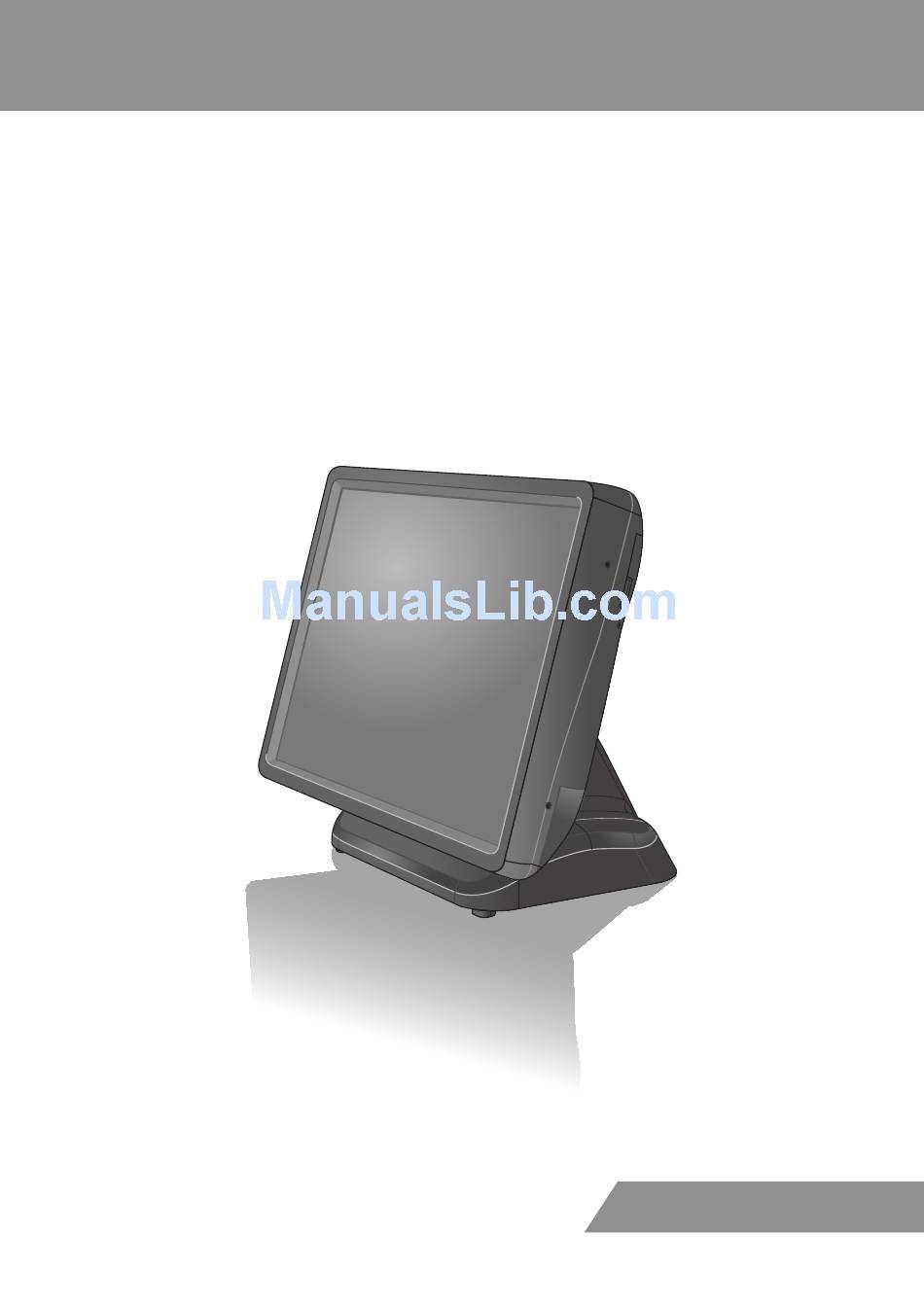

Bravo Series
B-615 / B-615S / B-815
User Manual
Version 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the B-615 and is the answer not in the manual?

Questions and answers

Summary of Contents for ESS SYNTECH B-615

  • Page 1 Bravo Series B-615 / B-615S / B-815 User Manual Version 1.0...

  • Page 2: About This Manual

    About this Manual Thank you for purchasing Bravo Series Touch Terminal. This terminal offers highly enhanced features, with easy connection to various optional devices for optimal performance. This user manual describes how to setup and connect your terminal. Copyright © Copyright 2015 All rights reserved.
  • Page 3 • If there is any of the following situation arise, notify a qualified service technician immediately: ◊ The power cord or plug is damaged. ◊ Liquid has been spilt on to the equipment. ◊ The equipment has been dropped and damaged. ◊ The equipment does not function normally. • Do not block any ventilation openings to prevent the equipment from overheat. • Do not leave the equipment in a non air-conditioned environment where the storage temperature may go above 70°C (158°F), as this can cause damage to the equipment.
  • Page 4 Federal Communications (FCC Statement) This device complies with FCC Rules Part 15. Operation is subject to the following two conditions: • This device may not cause harmful interference. • This device must accept any interference received including interference that may cause undesirable operation. This equipment has been tested and found to comply within the limit of a Class A digital device, pursuant to Part 15 of the FCC Rules.
  • Page 5 CB/LVD Statement • A Class III equipment with an enclosure made of HB material and using a non-special connector for the a.c./d.c. input has to have a marking stating the following: “Use only power supplies listed in the user instructions” or “For applicable power supplies see user instructions”.

  • Page 6: Table Of Contents

    Power Switch Board Connector ............29 Voltage Output Definition ..............30 Cash Drawer Controller Register ............32 RS232 Control (B-615 / B-615S) ...............32 GPIO Control (B-615S / B-815) ..............32 Calibrating the Touch Screen in Windows .......... 33 Setting the LCD Brightness Control ............ 35 Chapter 3: Hardware Installation ..........
  • Page 7 Installing the Laser Scanner (Optional) ..........55 Connecting to POS Peripherals ............56 Chapter 4: Maintenance Procedures ........58 Replacing the System Core Engine ............. 58 Replacing the Hard Disk Drive .............. 60 Chapter 5: Frequently Asked Questions (FAQ) ....61...

  • Page 8: Chapter 1: Introduction

    INTRODUCTION Chapter 1 Introduction Congratulations on your purchase of this Touch Terminal. Your easy-to-use POS terminal is designed to help you enhance your business flexibility by offering superior customer experience. Package Contents Before setting up your Touch Terminal, check that the package contains the following items. If any of the items is missing or damaged, contact your vendor immediately. 2nd LCD Customer Display Touch Terminal Customer Display (optional)

  • Page 9: Overview Of Bravo Series

    INTRODUCTION Overview of Bravo Series The figures in this section illustrate the components (including input and output ports) located at the front and rear of your Touch Terminal. Front View COM5 COM4 COM3 COM1 B-615 COM4 COM2 COM1 COM6 B-615S/B-815...

  • Page 10: Rear View

    INTRODUCTION Rear View Without Stand With Stand Description VESA holes MSR module compartment Speakers VESA routing plate Control panel a. 2*USB ports b. Power button c. Brightness control buttons (for specific models)

  • Page 11: Physical Dimensions

    INTRODUCTION Physical Dimensions 379.19 347.97 198.77...

  • Page 12: Specifications

    INTRODUCTION Specifications Touch Terminal Specifications Bravo Series Model number B-615 B-615S B-815 LCD/LED & Touch Panel LCD Panel 15” LED/CCFL MAX. Resolution 1024 x 768 (Default) Brightness 250 cd/m Touch Screen 5-wire Resistive (Default RS232) PCAP (Default USB) System Configuration Intel Atom™...
  • Page 13 INTRODUCTION Bravo Series Model number B-615 B-615S B-815 Speaker Output 2 x 1W speaker DC Output 1 x DC 12V output Powering System Power Supply External DC power supply (placed inside the system base) AC 90V to 264V full range...

  • Page 14: Peripherals Specifications

    INTRODUCTION Peripherals Specifications Liquid Crystal Module (LCM) Model no. CM-3000 Polarizer color White Backlight color Blue Display capacity 20 characters x 2 lines Character format 5 x 8 dots • Default: English-Europe • Optional(factory pre-configured): English- Character type Russia/ English-Japanese/ Traditional Chinese/Simplified Chinese Dot Size 0.93 (W) x 1.11 (H) mm Input power type 5 VDC...
  • Page 15 INTRODUCTION Liquid Crystal Display (LCD) Model no. MN-0810 MN-1010 MN-1510 LCD Panel 8” TFT LED backlight 10.4” TFT LED backlight 15” TFT LED backlight Resolution 800 x 600 1024 x 768 Color 262,144 Viewing Angle 140° (H) / 125° (V) 110°...
  • Page 16 INTRODUCTION Integrated Scanner (for VESA model only) Model no. CC-9000 Light Source 650 nm visible laser diode (VLD) Depth of Field 0 – 200 mm (UPC/EAN 100%, PCS=90%) Number of Scan Lines Scan Pattern 5 directions of scan field Scan Rate 1,200 scans per second Indicators (LED) Two-color LED (blue &...

  • Page 17: Chapter 2: Preparing For The Installation

    “\drivers” in the OS recovered HDD. Then follow the instructions from your system integrator for software recovery. System Default Settings The following is the information on default settings for Touch Terminal serial ports. B-615 COM 1 COM 2 COM 3...

  • Page 18: Main Board Jumpers And Connectors

    PREPARING FOR THE INSTALLATION Main Board Jumpers and Connectors B-615 Connector/Jumper Description 24V DC power input 12V DC power output Cashdraw1 Cash Drawer output USB1 USB*2 connector PS/2 keyboard connector OUT4P1/2 DC Power output for S-ATA HDD/SSD M/B signal convergence connector...
  • Page 19 PREPARING FOR THE INSTALLATION JP1 S-ATA PORT POWER 1 2 3 1-2 DC5V for CN9 Default = 0V 2-3 0V JP4 CMOS CLEAR JUMPER 1 2 3 1-2 = Normal Default = Normal 2-3 CMOS clear JP5 COM 4 D-SUB PIN9 VOLTAGE SELECT 1 3 5 1-2 = 0V 3-4 +5V...
  • Page 20 PREPARING FOR THE INSTALLATION J2 CASH DRAWER VOLTAGE SETTING 1 2 3 1-2 24V Default = 24V 2-3 12V NOTE: • Do not plug in or unplug any connector except USB devices when the power is on. • The current loading for all COM ports should not exceed DC 5V/3A and DC 12V/2A. B-615S Connector/Jumper Description J4 SATA Pin7 Setting (SATA Dom Only)
  • Page 21 PREPARING FOR THE INSTALLATION Connector/Jumper Description JP13 COM4 CN6 RS232 RI/+5V/+12V Power Setting JP14 CN1 PS/2 KeyBoard Power Selection JP2: J4 SATA Pin7 Setting (SATA Dom Only) Setting Function Pin 1-2 Short/Closed Pin 2-3 Short/Closed GND* JP3: LCD Panel Power Selection Setting Function Pin 1-2 Short/Closed...
  • Page 22 PREPARING FOR THE INSTALLATION JP7: CN4 USB Power Selection Setting Function Pin 1-2 Short/Closed +5VSB* Pin 2-3 Short/Closed JP8: CN5 USB Power Selection Setting Function Pin 1-2 Short/Closed +5VSB* Pin 2-3 Short/Closed JP9: CN7 Cash Drawer Power Selection Setting Function Pin 1-2 Short/Closed +24V* Pin 2-3 Short/Closed...
  • Page 23 PREPARING FOR THE INSTALLATION JP12: COM1 CN3-up RS232 RI/+5V/+12V Power Setting JP12 Setting Function Pin 1-2 Short/Closed Pin 3-4 Short/Closed Pin 5-6 Short/Closed +12V JP13: COM4 CN6 RS232 RI/+5V/+12V Power Setting JP13 Setting Function Pin 1-2 Short/Closed Pin 3-4 Short/Closed Pin 5-6 Short/Closed +12V JP14: CN1 PS/2 KeyBoard Power Selectionn...
  • Page 24 PREPARING FOR THE INSTALLATION B-815 Connector/Jumper Description CPU_FAN1 CPU Fan Power Connector J4, J8 HDD Power Connector J5, J6 SATA3 Connector (J6 Pin7 Setting by JP4 for SATA DOM) SPI Flash Tool Connector (Factory use only) SATA DOM Power Connector Flash Descriptor Security Override (Factory use only) J11, J12 DDR3 SO-DIMM...
  • Page 25 PREPARING FOR THE INSTALLATION Connector/Jumper Description PS/2 Keyboard Connector (Power Setting by JP13) VGA + COM6 Serial Ports (Pin9 Setting by JP10) COM1,COM2 Serial Ports (Pin9 Setting by JP12,JP11) Realtek Gigabit LAN + Dual USB Dual USB COM4 Serial Ports (Pin1 Setting by JP9) Cash Drawer (Pin4 Setting by JP6) HD Audio Connector (Line out only) DC Power Jack +12V/2A Output...
  • Page 26 PREPARING FOR THE INSTALLATION JP6: CN7 Cash Drawer Power Selection Setting Function Pin 1-2 Short/Closed +24V Pin 2-3 Short/Closed +12V JP7: CN1 USB Power Selection Setting Function Pin 1-2 Short/Closed +5VSB Pin 2-3 Short/Closed JP8: CN4 USB Power Selection Setting Function Pin 1-2 Short/Closed +5VSB...
  • Page 27 PREPARING FOR THE INSTALLATION JP11: COM2 CN5-down RS232 RI/+5V/+12V Power Setting JP11 Setting Function Pin 1-2 Short/Closed Pin 3-4 Short/Closed Pin 5-6 Short/Closed +12V JP12: COM1 CN5-up RS232 RI/+5V/+12V Power Setting JP12 Setting Function Pin 1-2 Short/Closed Pin 3-4 Short/Closed Pin 5-6 Short/Closed +12V JP13: CN8 PS/2 KeyBoard Power Selection...

  • Page 28: Signal Convergence Board Connector

    PREPARING FOR THE INSTALLATION Signal Convergence Board Connector Connector/Jumper Description JUSB1 USB port for POS input device JUSB2 USB port for USB Touch COM3 connector for LCM/VFD display LCD backlight inverter connector 2x10 LVDS connector COM2 connector for RS-232 Touch connector to Power switch board JSPK_L1 Speaker connector...

  • Page 29: Power Switch Board Connector

    PREPARING FOR THE INSTALLATION Power Switch Board Connector NOTE: The Power Switch Board varies and depends on specific model. Type A: LCD brightness is controlled by physical button Connector/Jumper Description Power On switch LCD Brightness (+) DOWN1 LCD Brightness (-) 2*USB connector Signal connector Type B: LCD brightness is controlled by BIOS Boot Menu...

  • Page 30: Voltage Output Definition

    PREPARING FOR THE INSTALLATION Voltage Output Definition B-615 Connector with Voltage Output Location Power Support COM 1 for extension interface DC5V/DC12V Main Board (9th PIN of DB-9) select by jumper COM 2 for Touch Signal Convergence Board DC5V only COM 3 for extension interface...
  • Page 31 PREPARING FOR THE INSTALLATION B-815 Connector with Voltage Output Location Power Support DC5V/DC12V COM 1 for extension interface Main Board select by jumper (9th PIN of DB-9) DC5V/DC12V COM 2 for extension interface Main Board select by jumper (9th PIN of DB-9) COM 3 for LCM/VFD Signal Convergence Board DC5V only DC5V/DC12V...

  • Page 32: Cash Drawer Controller Register

    PREPARING FOR THE INSTALLATION Cash Drawer Controller Register RS232 Control (B-615 / B-615S) Model B-615 B-615S COM port: COM6 COM5 IO address: Baud rate: 1200 9600 Open command: Respond command: GPIO Control (B-615S / B-815) The Cash Drawer Controller use one I/O address to control the Cash Drawer.

  • Page 33: Calibrating The Touch Screen In Windows

    PREPARING FOR THE INSTALLATION Calibrating the Touch Screen in Windows Setting 1. Beep ◊ Configure the Touch sound ◊ Frequency: Set the sound type ◊ Duration: Audio sound length 2. Linearization style Set 9-point or 25-point calibration...
  • Page 34 PREPARING FOR THE INSTALLATION Tools 1. 4 points calibration The device needs to be calibrated for the touch screen to work accurately. Whenever the touch screen seems inaccurate, recalibrate the screen again. Press this button to display a new window to guide you to do the 4 points calibration. On the calibration window, follow the guide and touch and hold the blinking symbol as it moves around the screen.

  • Page 35: Setting The Lcd Brightness Control

    PREPARING FOR THE INSTALLATION Setting the LCD Brightness Control NOTE: The way to adjust the LCD brightness varies and depends on specific model. Follow the instructions respectively to set the LCD brightness level. Type A: Setting by physical button Item Function Press the “Brightness –”...
  • Page 36 PREPARING FOR THE INSTALLATION Type B: Setting by BIOS Boot Menu B-615 To adjust the LCD brightness, do the following: 1. Press F2 when the system boot. Then select the Intel tab. 2. In the Intel menu, select LPC Control Sub-Menu item. 3. Select Hardware Monitor item.
  • Page 37 PREPARING FOR THE INSTALLATION 4. On the Brightness Control Level option, set the desired brightness level setting.
  • Page 38 PREPARING FOR THE INSTALLATION B-615S To adjust the LCD brightness, do the following: 1. Press F2 when the system boot. Then select the Advanced tab. 2. In the Advanced menu, select LVDS Configuration. 3. On the Panel Brightness option, set the desired brightness level setting.
  • Page 39 PREPARING FOR THE INSTALLATION B-815 To adjust the LCD brightness, do the following: 1. Press F2 when the system boot. Then select the Advanced tab. 2. In the Advanced menu, select F81866 Super IO Configuration. 3. On the Panel Brightness option, set the desired brightness level setting.

  • Page 40: Chapter 3: Hardware Installation

    HARDWARE INSTALLATION Chapter 3 Hardware Installation Installing/Removing the Power Adapter • To install the power adapter, do the following: 1. Place the Touch Terminal on a soft and flat surface, with the LCD panel facing the down. Detach the connectors cover. 2. Align and install the power adapter between the guide holes for the adapter bracket screws. 3.
  • Page 41 HARDWARE INSTALLATION 5. Route the power cable through the cable compartment. 6. Align and install the connectors cover. • To remove the power adapter, do the following: WARNING: Be sure to turn off the power of the Touch Terminal before making any connection or disconnection.
  • Page 42 HARDWARE INSTALLATION 2. Disconnect and release the power cable. 3. Remove the four screws (I⊕M3*5) from the power adapter bracket. 4. Remove the power adapter bracket. 5. Remove the power adapter. Power adapter Power adapter bracket...

  • Page 43: Installing The Network Cable

    HARDWARE INSTALLATION Installing the Network Cable WARNING: Be sure to turn off the power of the Touch Terminal before making any connection or disconnection. To install the network cable, do the following: 1. Place the Touch Terminal on a soft and flat surface, with the LCD panel facing the down. Detach the connectors cover. Connectors cover 2.

  • Page 44: Installing/Removing The System Stand

    HARDWARE INSTALLATION Installing/Removing the System Stand WARNING: Be sure to turn off the power of the Touch Terminal before making any connection or disconnection. 1. Place the Touch Terminal on a soft and flat surface, with the LCD panel facing the down. Detach the connectors cover. 2. Rotate the stand panel to access the screws securing the stand panel to the Touch Terminal display.
  • Page 45 HARDWARE INSTALLATION 3. Remove the following items: a) Connectors cover. b) Four screws (P⊕M4*10) securing the stand panel to the Touch Terminal. c) VESA compartment cover. VESA compartment cover Connectors cover 4. Release the panel stand.

  • Page 46: Installing The Customer Display (Optional)

    HARDWARE INSTALLATION Installing the Customer Display (Optional) WARNING: Be sure to turn off the power of the Touch Terminal before making any connection or disconnection. To configure the COM port voltage setting to +5V, refer to “Main Board Jumpers and Connectors” on page 18. 1.
  • Page 47 HARDWARE INSTALLATION 4. Secure the panel stand assembly to the Touch Terminal with the four screws (P⊕M4*10). Connect the customer display’s interface cable to the RJ-45 COM port on Touch Terminal.
  • Page 48 HARDWARE INSTALLATION 6. Install the connectors cover and customer display compartment. Customer display compartment...

  • Page 49: Installing The Secondary Lcd Display (Optional)

    HARDWARE INSTALLATION Installing the Secondary LCD Display (Optional) WARNING: Be sure to turn off the power of the Touch Terminal before making any connection or disconnection. 1. Align the secondary LCD display with the Touch Terminal, and route the cables through the cable compartment on Touch Terminal.
  • Page 50 HARDWARE INSTALLATION 5. Connect the secondary LCD display’s power cable and VGA cable to the corresponding ports on Touch Terminal. 6. Install the connectors cover and customer display compartment.

  • Page 51: Installing The Msr Module (Optional)

    HARDWARE INSTALLATION Installing the MSR Module (Optional) WARNING: Be sure to turn off the power of the Touch Terminal before making any connection or disconnection. To install the MSR onto the Touch Terminal, do the following: 1. Open the MSR module compartment and remove the small chip off the compartment cover. 2.
  • Page 52 HARDWARE INSTALLATION 3. Secure the MSR module to the Touch Terminal, using the three screws (F⊕M3*16).

  • Page 53: Installing The Vesa Mount (Optional)

    HARDWARE INSTALLATION Installing the VESA Mount (Optional) NOTE: Use only wall mount kits approved by the manufacturer. Wall mount kits are sold separately. Mount on Touch Terminal Mount on the wall 1. Drill four small holes on the mounting location and insert the plastic washers into the holes. 2.
  • Page 54 HARDWARE INSTALLATION 3. Attach the bracket onto the Touch Panel using four screws (P⊕M4*10). 4. Align and hook the Touch Terminal to the wall bracket, and then push down to secure it into place.

  • Page 55: Installing The Laser Scanner (Optional)

    HARDWARE INSTALLATION Installing the Laser Scanner (Optional) WARNING: Be sure to turn off the power of the Touch Terminal before making any connection or disconnection. 1. Attach the scanner module to the scanner bracket using three screws (P⊕M3*6). 2. Attach the scanner bracket and the VESA mount bracket onto the Touch Terminal using four screws (P⊕M4*10).

  • Page 56: Connecting To Pos Peripherals

    HARDWARE INSTALLATION Connecting to POS Peripherals B-615 Description Function COM 1 Connect to DB-9 RS232 POS device. COM 3 Connect to DB-9 RS232 POS device. COM 4 Connect to DB-9 RS232 POS device. Connect to Ethernet. USB Port Connect to USB POS device.
  • Page 57 HARDWARE INSTALLATION B-615S / B-815 Description Function COM 6 Connect to DB-9 RS232 POS device. COM 1 Connect to DB-9 RS232 POS device. COM 2 Connect to DB-9 RS232 POS device. Connect to Ethernet. USB Port Connect to USB POS device. HDD Bay Connect to a SATA HDD.

  • Page 58: Chapter 4: Maintenance Procedures

    MAINTENANCE PROCEDURES Chapter 4 Maintenance Procedures Replacing the System Core Engine WARNING: Be sure to turn off the power of the Touch Terminal before making any connection or disconnection. To replace the system core engine, do the following: 1. Position the LCD panel facing up and remove the connectors cover. 2.
  • Page 59 MAINTENANCE PROCEDURES 3. Loosen the captive screw that secures the system core engine onto the Touch Terminal. 4. Pull the system core engine out from the compartment. 5. Replace the system core engine. Then follow the above-mentioned steps in reverse to finish the replacement.

  • Page 60: Replacing The Hard Disk Drive

    MAINTENANCE PROCEDURES Replacing the Hard Disk Drive WARNING: Be sure to turn off the power of the Touch Terminal before installing or removing any components. To replace the hard disk drive, do the following: 1. Position the LCD panel facing up and remove the connectors cover. Connectors cover 2.

  • Page 61: Chapter 5: Frequently Asked Questions (Faq)

    Steps: On the < Save & Exit> page, select < Restore Defaults >, then select <Yes>. Select < Save Changes and Reset >, and then <Yes> to save the settings. B-615 Steps: On the <Exit> page, select <Load Setup Defaults>, then select <Yes>. Select <Exit Saving Changes>, and then <Yes> to save the settings.
  • Page 62 Save as User Defaults F4: Save Changes and Reset Restore User Defa ults Question 2: How do I clear CMOS? Answer: To clear CMOS, do the following: 1. Turn off power and pull out the power cord. 2. Insert the jumper cap to clear CMOS PIN and remove the jumper cap from clear CMOS PIN. B-615...
  • Page 63 5. Save changes and reboot the system. Question 3: How to use Boot Menu? Answer: To use the Boot Menu, do the following: 1. Press F10 (B-615/B-615S) / F7 (B-815) to enter the Boot Menu. 2. Select the Boot device from the Boot Menu.
