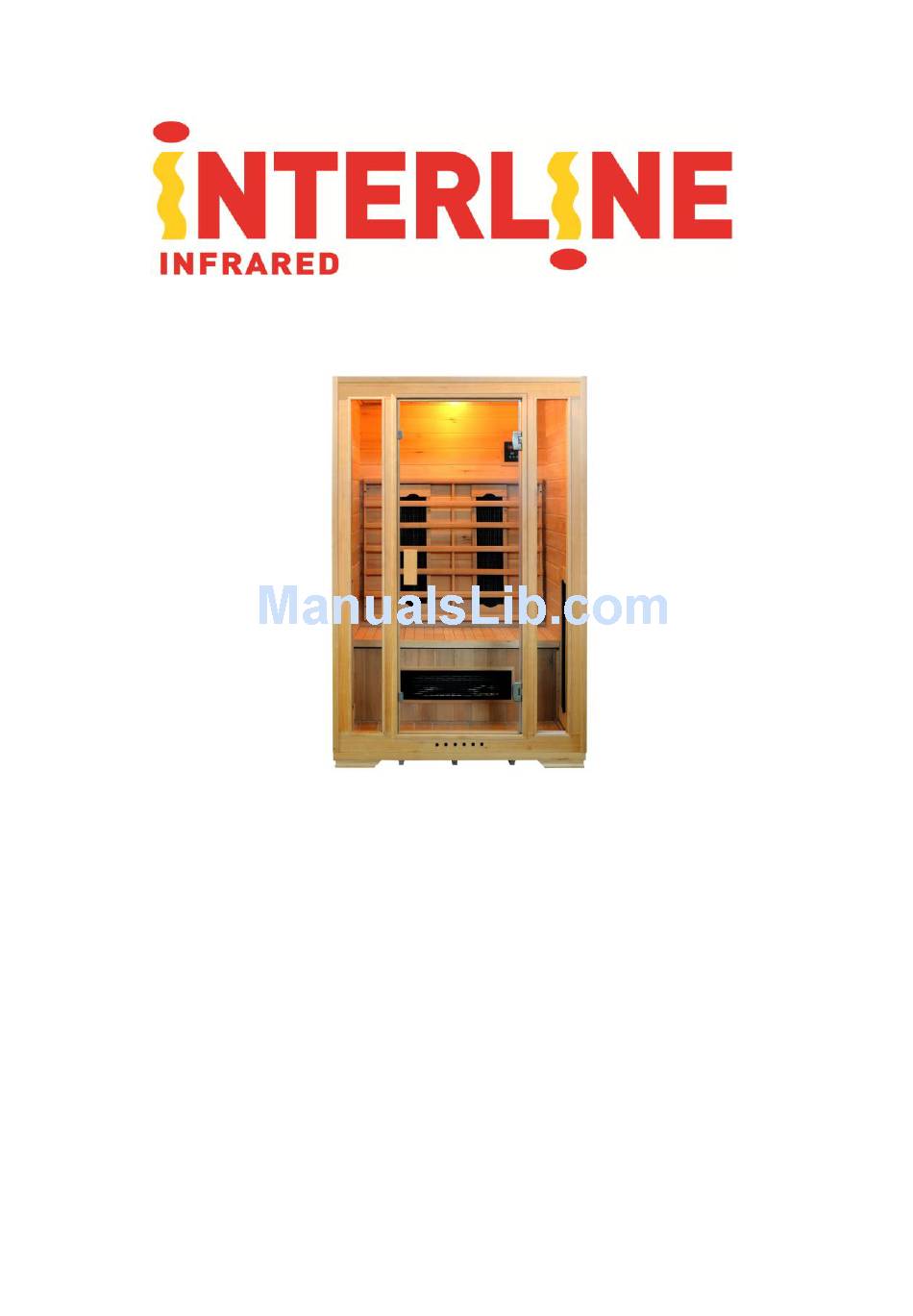

Dear customer , Thank you for purchasing our product, the new generation sauna in the world . Before using, please read this consumer’s manual carefully! This consumer’s manual is suitable for saunas with ceramic heaters. CATALOG Page Preview General safety rule Circuit diagram Installation Operation...
Page 3
A3.4 Adjustable dwell time from 0 to 60 minutes A3.5 Digital temperature sensor A3.6 Soft touch keypad A3.7 Long-life ceramic infrared heater Model Specification L1TP 900 x 900 x 1900 mm L2TP 1200 x 1000 x 1900 mm : A3.8 Specification (ceramic heater)
Page 4
Below are pictures of individual panels for the 2-person models. Other models vary.
Detail Drawing 1. Front panel. 2. Bottom. 3. Heater Bench. 4. Bench. 5. Bench back. 6. Left panel. 7. Right panel. 8. Back panel. 9. Ceiling panel. 10. Roof panel. 11. Circuit box. Instrument required in installation: Screwdriver provided in the screw bag. General safety rule B1.1.
Page 6
Hypothermia Hypothermia occurs when the internal temperature of the body reaches a level several degrees above the normal body temperature of 37°C. The symptoms of hypothermia include an increase in the internal temperature of the body, dizziness, lethargy, drowsiness, and fainting. The effects of hypothermia include: B2.1.
In st al l at i on D1. Pay attention to the following before installation! D1.1. Do not share the same plug with other appliances. D1.2. Position it on a flat level surface. D1.3. Do not splash the exterior with water. If the floor is damp, install a floor separator to keep the sauna dry and high.
Page 10
D2.1. Buckle Fastened Inside Buckle Fastened(Selected Use) D2.2. Plug in the Bench Heater Cable to the outlet located on the Back Panel. Make sure connection is secure. - 10 -...
Page 11
D2.3. The Top Panel must be positioned in the right corner. Connect the plugs for heater through the holes around the Top Panel. Outdoor Sauna Room 6 screws Put the covers on the roof, then fix them by screw, each cover two screws.
Page 12
How to replace the ceramic heater. D4.1. Take off the cover of heater. D4.2 Take off the ceramic covers of tube and remove the connecters from two ends of the tube. D4.3 Take off the clip on the bottom part of heater - 12 -...
Page 13
D4.4 Replace the heater. D4.5 Connect the two connecters to two ends of tube and fasten the ceramic covers of two ends D4.6 Install the clip on the bottom part of heater cover. D4.7 Install the heater cover - 13 -...
Operation In use of sauna room, please point the temperature sensor vertical downward, as shown in the figure below to ensure the accuracy of the temperature display on control panel. 1. Original shape 2. Vertical downward shape Plug the power cord into the wall outlet. - 14 -...
Page 15
Press the key ON/OFF. The POWER indicator turns on. TEMPERATURE DISPLAY indicates the temperature in the room. Press the key ON/OFF again. The POWER indicator turns off. Press the key F/C , the heat indicator turns on. The sauna will automatically start by pressing the key + or - on the left to adjust the temperature.
Tips for use Set the temperature to a comfortable level, normally 40 to 50℃. Allow approximately 8-15 minutes for the sauna to warm up. Perspiration will begin within 6 to 15 minutes after stepping into the unit. We recommend a sauna session does not exceed 30 minutes. When the temperature reaches the level set on the thermostat, the heaters will turn off and on periodically to maintain the desired temperature level inside the sauna.
Frequently Asked Questions MAKE SURE TO SHUT OFF ELECTRICITY BEFORE DOING IT. If the supply cord is damaged, it must be replaced to avoid a hazard. The control panel does not work Solutio Problem Explanation The power indicator The fuse is broken or the Change the fuse or the isn’t on sauna is not plugged in...
Maintenance Clean the sauna room with a soft wet cloth. NEVER use petrol, alcohol, benzene or any other such chemical to clean the unit. In hospital or public use areas the sauna can be detoxified with ultrasonic equipmen Transportation and storage Avoid exposure to rain, snow or strong collisions during transport.
Appendix: CD Player Installation 1. POWER BUTTON: Press it to start the power and hold it to turn it off. 2. BAND BUTTON: Press it for FM band (FM1,FM2,FM3) and AM band (AM1 &AM2). 3. “VOL+AND VOL-” For volume adjustment. 4.
Page 20
16. On radio mode, press it for manual station search, hold it for auto station search on play mode, press it for track selection, hold it for fast-forward and fast-backward. MUTE BUTTON: MUTE ON/OFF. AUX: AUX INPUT. Slide the CD-player into the slot provided on front panel. - 20 -...
Page 21
Oxygen Ionizer Installation installation plug the power K2.1 Press the ion button: it extremely purifies the air and removes toxic substances including the dust and odours mould. K2.2 Press the ozone button: ozone may kill virus, and will be deoxidized into oxygen in the end without secondary pollution, which the chemical agents cannot achieve.
Page 22
Operating instruction Anion and ozone can only work separately; when the ozone starts to work the anion will stop; after about 15 minutes working the ozone will stop and turn the anion function automatically BRIEF INTROUCTION Produce Active Oxygen The negative ion generated by ionization of high voltage in the air is also called Active Oxygen.
Page 23
FAQ for CD player Problems Possible causes Remedies The light doesn’t Change the fuse on back of CD The fuse is broken work Take out the CD and put in CD disc is in the CD Disc can’t be put in Turn over the CD to another CD with print design side face or taken out...
