Summary of Contents for TiOLAT iCare

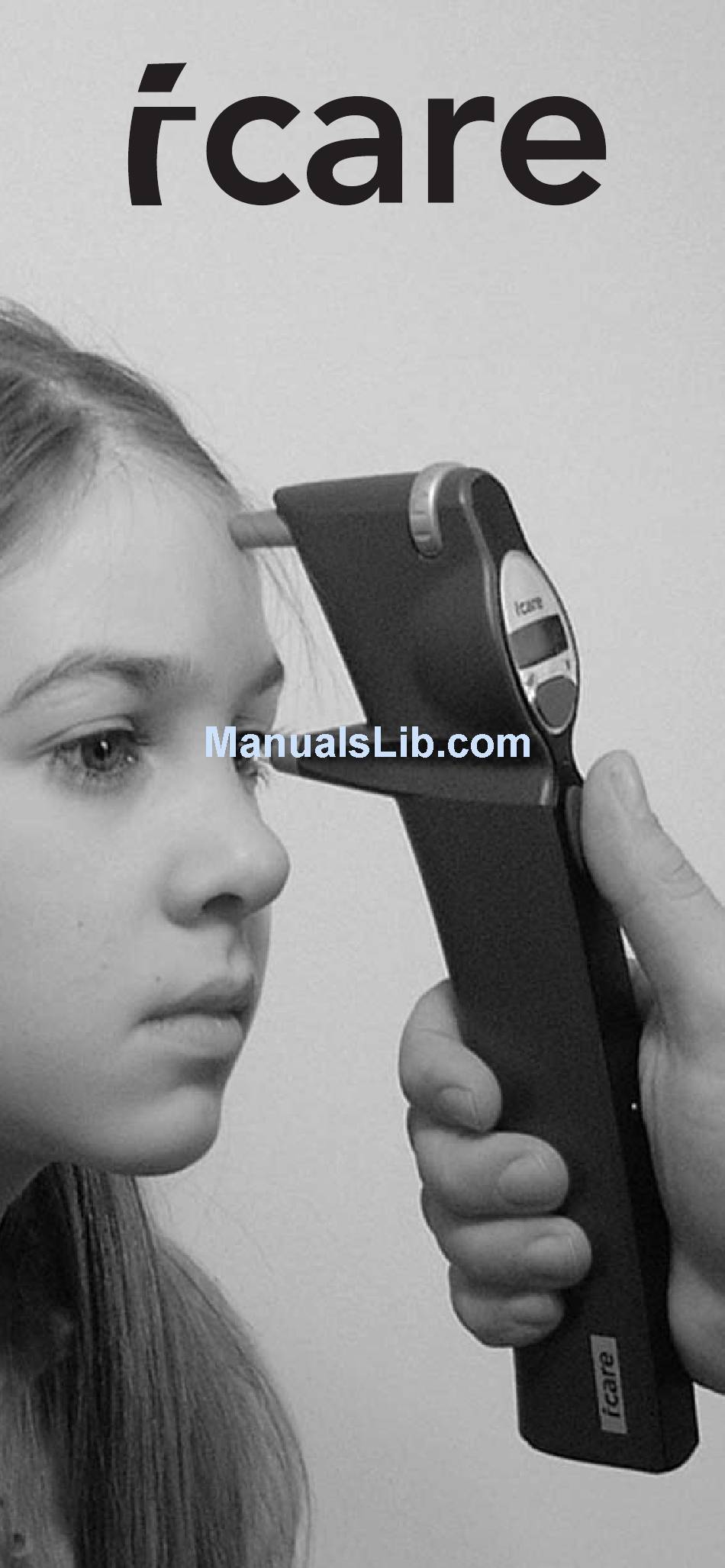

- Page 1 ® TONOMETER User’s and Maintenance Manual V2.1 6/03...
-
Page 2: Table Of Contents
Replacing the batteries Error messages Service Technical information Spare parts and supplies Diagram of tonometer functions Introduction The ICare tonometer is used in the diagnosis, follow ® up, and screening of glaucoma. The ICare is based on the new patented induction ®... -
Page 3: Parts Of The Tonometer
Parts of the tonometer Forehead support adjustment wheel Forehead support Display Selector button Collar left / right Measurement button Central groove Grip Battery compartment... -
Page 4: Loading A New Disposable Probe
Loading a new disposable probe Accurate measurement is guaranteed only when using probes made by Tiolat Oy. Hold the disposable probe in your hand, open the package, and load the probe into the sensor base, according to the illustrations. Open the disposable package. -
Page 5: Turning The Device On And Magnetizing The Probe
Turning the device ON and magnetizing the probe Raise the device to the vertical operating position, ensuring that the probe cannot fall out of the probe base. Press the measurement button. The probe will be magnetized by moving back and forward for a short time, and the mechanism that prevents the probe drop- ping out accidentally will start. -
Page 6: Measurement
Measurement The measurement should be done without anesthetic, because an anesthetic may reduce the tonometer reading*. Ask the subject to relax and look straight ahead to a specific point. Bring the tonometer near to the subject’s eye. The central groove should be in a horizontal position. -
Page 7: Other Functions
Other functions Accessing old measurement values. Starting position Press the right or left selector button until Old appears on the display. Then press the measure- ment button. The old values can now be scanned back and forward by pressing the selector buttons (right= older, left=recent) Press the measurement button to exit the old values search. -
Page 8: Safety Instructions
• Batteries, packaging materials, and probe bases must be disposed of according to local regulations. T O LAT PL 29, 00661 Helsinki, Finland fax +358 9 7286670, e-mail: info@tiolat.fi internet: www.tiolat.fi... -
Page 9: Replacing The Probe Base
Replacing the probe base After several months of use, dust may collect in the probe base, affecting the probe movement. The probe base should be replaced if the probe no longer moves smoothly. Unscrew the probe base collar and put it in a safe place. Remove the probe base by tilting the tonometer downward and pull the probe base out of the tonometer. -
Page 10: Replacing The Batteries
Replacing the batteries Unscrew the battery compartment locking screw with a screwdriver or a small coin. Remove the battery compartment cover. Remove the old batteries. Put new AA batteries into the tonome- ter according to figures inside the battery compartment. +terminals should be down on the display side of the tonometer (behind). -
Page 11: Error Messages
Error messages: Press the central button to clear error messages, after which the measurement can be repeated. The following messages may appear: • bAtt ......the batteries are low. Replace the batteries • E 01 ......The probe did not move at all. If this error message is repeated, turn the tonometer so that the col- lar faces down for a short time. -
Page 12: Technical Information
Technical information Type: TA01. The device conforms to CE regulations. Dimensions: 13 – 32 mm (W) * 45 – 80 mm (H) * 230 mm (L). Weight: 155 g (without batteries) , 250 g (4 x AA batteries). Power supply: 4 x AA batteries. Measurement range: 1-99 mmHg.
