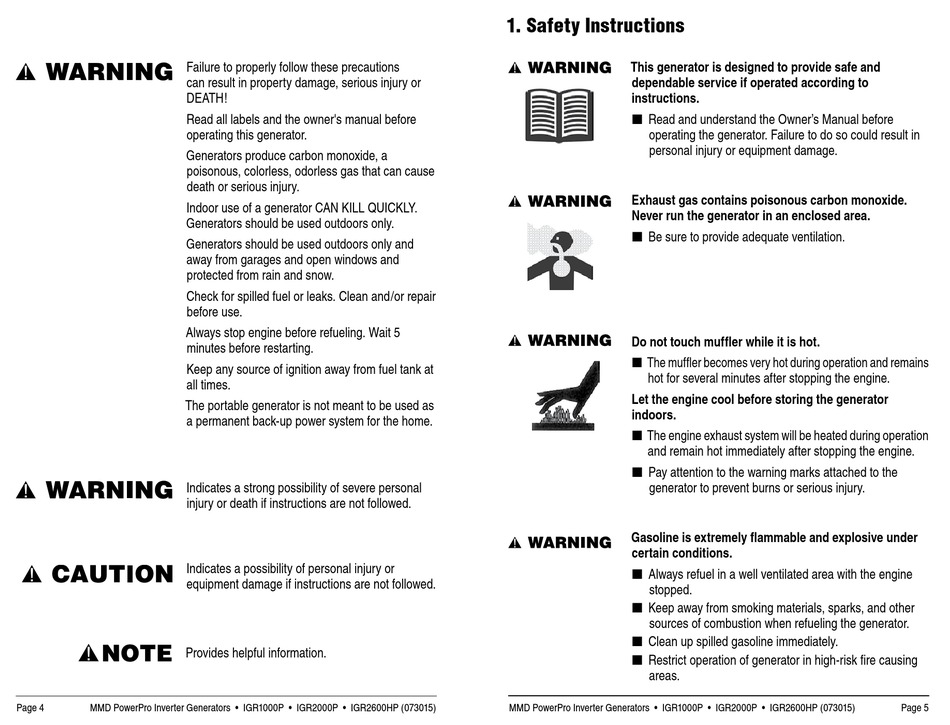

Failure to properly follow these precautions
can result in property damage, serious injury or
DEATH!
Read all labels and the owner's manual before
operating this generator.
Generators produce carbon monoxide, a
poisonous, colorless, odorless gas that can cause
death or serious injury.
Indoor use of a generator CAN KILL QUICKLY.
Generators should be used outdoors only.
Generators should be used outdoors only and
away from garages and open windows and
protected from rain and snow.
Check for spilled fuel or leaks. Clean and/or repair
before use.
Always stop engine before refueling. Wait 5
minutes before restarting.
Keep any source of ignition away from fuel tank at
all times.
The portable generator is not meant to be used as
a permanent back-up power system for the home.
Indicates a strong possibility of severe personal
injury or death if instructions are not followed.
Indicates a possibility of personal injury or
equipment damage if instructions are not followed.
Provides helpful information.
Page 4
MMD PowerPro Inverter Generators • IGR1000P • IGR2000P • IGR2600HP (073015)

1. Safety Instructions

This generator is designed to provide safe and
dependable service if operated according to
instructions.
n Read and understand the Owner's Manual before
operating the generator. Failure to do so could result in
personal injury or equipment damage.
Exhaust gas contains poisonous carbon monoxide.
Never run the generator in an enclosed area.
n Be sure to provide adequate ventilation.
Do not touch muffler while it is hot.
n The muffler becomes very hot during operation and remains
hot for several minutes after stopping the engine.
Let the engine cool before storing the generator
indoors.
n The engine exhaust system will be heated during operation
and remain hot immediately after stopping the engine.
n Pay attention to the warning marks attached to the
generator to prevent burns or serious injury.
Gasoline is extremely flammable and explosive under
certain conditions.
n Always refuel in a well ventilated area with the engine
stopped.
n Keep away from smoking materials, sparks, and other
sources of combustion when refueling the generator.
n Clean up spilled gasoline immediately.
n Restrict operation of generator in high-risk fire causing
areas.
MMD PowerPro Inverter Generators • IGR1000P • IGR2000P • IGR2600HP (073015)
Page 5
