Brauner VM1S Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
VM1S
MANUAL
TH E ART O F M IC RO PH O NES

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VM1S and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Brauner VM1S

Summary of Contents for Brauner VM1S

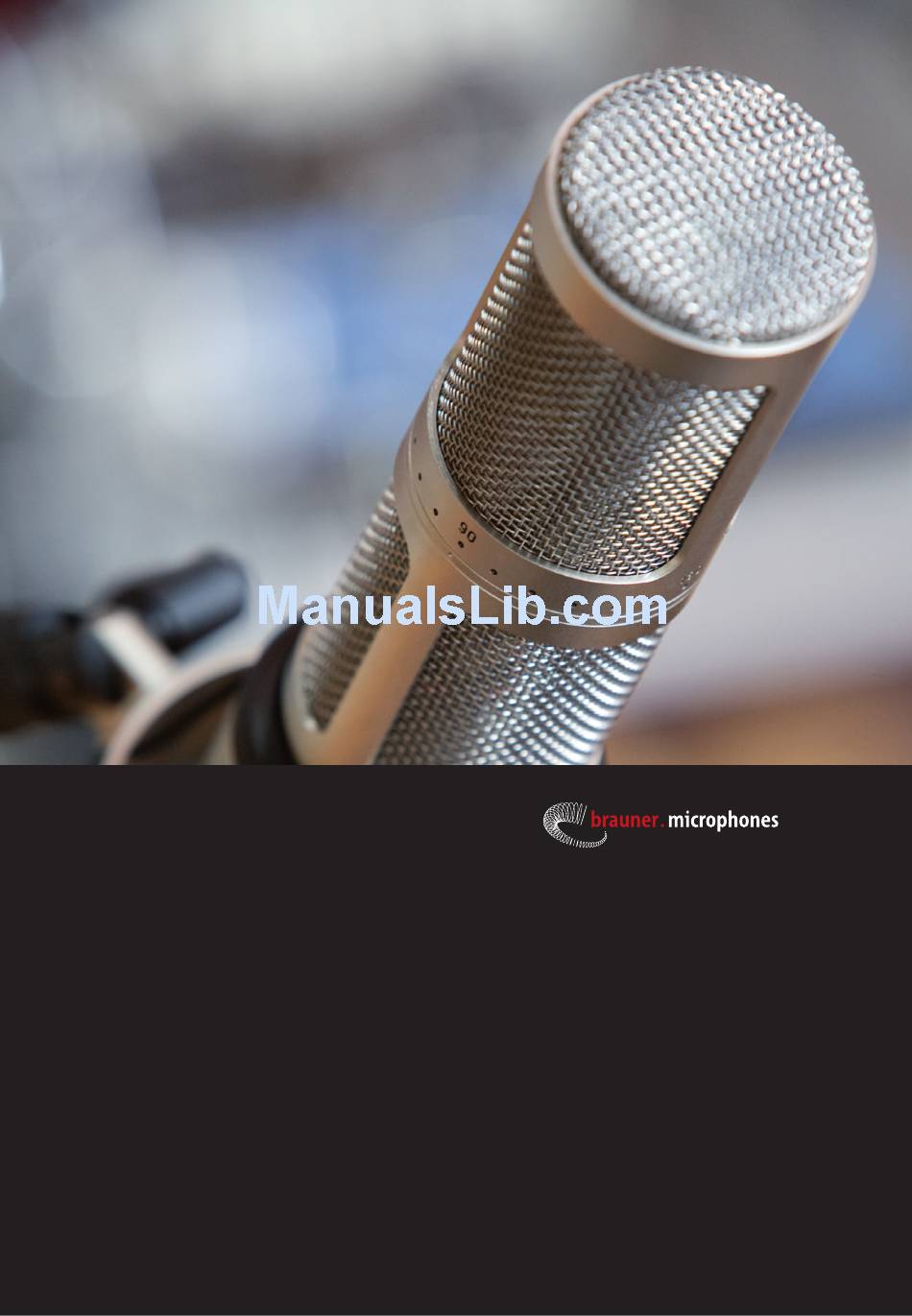

  • Page 1 VM1S MANUAL TH E ART O F M IC RO PH O NES...
  • Page 2 Brauner Microphones Rudolf-Diesel-Str. 11 D-46459 Rees Germany Tel.: +49 (0)2851 588 98 68 Fax: +49 (0)2851 588 98 67 info@brauner-microphones.com www.brauner-microphones.com...

  • Page 3: Table Of Contents

    1.0 Table of Contents Tabe of Contents Introduction Safety Instructions Setting Up Aluminum Case Suspension Inserting the Microphone Connections Power Supply (Remote Control) Pattern Control Power Supply Back Panel Ground Lift Switch Adjusting The Voltage Selector/Changing Fuses Maintenance and Care Technical Specifications Warranty Regulations...

  • Page 4: Introduction

    To reach this high level of perfection only best components are The VM1S is the stereo version of the VM1. It is currently, without carefully selected, assembled and calibrated to become these won- doubt, the most intricate of all Brauner microphones. It unites two derful works of art and sound.

  • Page 5: Safety Instructions

    Tube equipment runs on fairly high voltages that can be lethal in case of direct con- tact. Brauner products comply to all international safety regulations, are tested severe- ly and can therefore be used safely and without any risks if the following regulations are met: 1) Please read this manual carefully.

  • Page 6: Setting Up

    First attach the suspension to a suitable microphone stand, then loosen the lever on the back of the suspension and position it so that the Brauner logo on the front is facing your way. Now tighten the lever again. You can always adjust the lever‘s arm to another position by simply pulling it upwards and positioning it again without loosening its tension as it is a wingnut.

  • Page 7: Inserting The Microphone

    2.4 Inserting The Microphone Before inserting the microphone into the suspension you should have a look at the two black collar rings on each end of the suspension‘s inner cylinder. These rings can be turned 360° and the little white dots should align with the black screws on the cylinder to be in the open position (see picture).

  • Page 8: Power Supply (Remote Control)

    Main application of the figure of eight pattern are stereo recordings such as the MS or XY technique which require an MS matrix decoder to achieve a proper stereo signal. The stereo version of the VM1, the VM1S, is best suited for this kind of recordings.

  • Page 9: Power Supply Back Panel

    3.2 Power Supply Back Panel On the back panel of the power supply there are four connectors: power, microphone (Tuchel connector) and the two signal outs (XLR phase signal on pin 2). Additionally there is a ground lift switch for each XLR out and the voltage setting/fuse holder. 3.3 Ground Lift Switch The ground lift switch detaches the ground pin (pin 1) of the XLR output from ground and can be set to three positions.

  • Page 10: Maintenance And Care

    4.0 Maintenance and Care We take great care and attention when we manufacture our microphones. We only use the highest quality components available, many of which are exclusively manu- factured according to our specifications and individual needs. All components must pass our severe QC and selection processes without which the production of such a delicate microphone would not be possible.

  • Page 11: Technical Specifications

    5.0 Technical Specifications Microphone Category: Tube Microphone Pattern: Any / Continuously Variable Acoustical Principle: Large Diaphragm Condenser Microphone Frequency Range: 20 Hz to 22 kHz Sensitivity: 28 mV/Pa @ 1 kHz @ 1m Impedance: 200 Ohm Self Noise: < 11 dB A (IEC 651) Signal to Noise: >...

  • Page 12: Warranty Regulations

    6.0 Warranty Regulations Limited warranty: Brauner Microphones will provide warranty and service for this unit in accordance to the following warrants: Brauner Microphones warrants to the original purchaser that this product and the components thereof will be free of defects in workmanship and material for a period of 24 months from the date of purchase.
  • Page 14 Brauner Microphones Rudolf-Diesel-Str. 11 D-46459 Rees Germany Tel.: +49 (0)2851 588 98 68 Fax: +49 (0)2851 588 98 67 info@brauner-microphones.com www.brauner-microphones.com...
