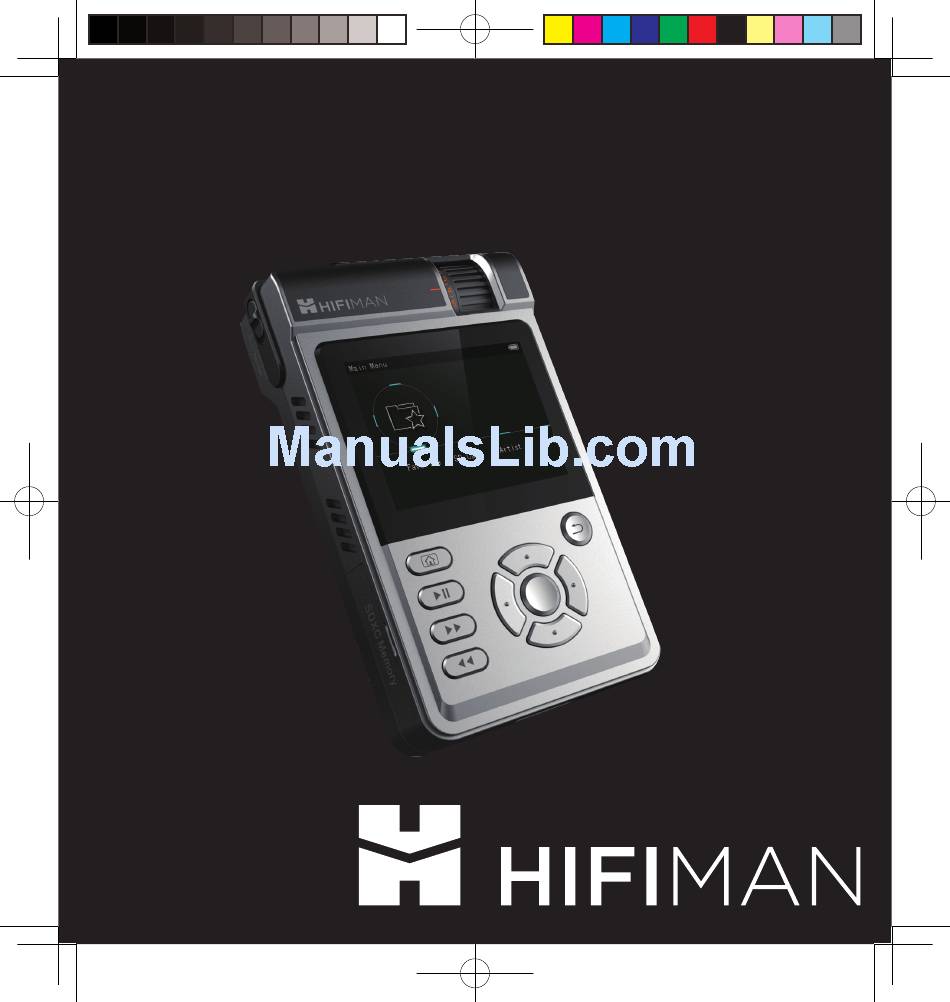

- Page 1 HM-650 High-Resolution Digital Music Player Owner’s Guide...
-
Page 2: Table Of Contents
Card Installation Power ON/OFF Play Menu Reset Setting Charging System Version Replacing the Battery Repeat Replacing the Amp Module Backlight Brightness CUE Support Language Other information Updating Media Database HM-650 Service and Support Recycling Information Reset Settings HM-650 Owner's Guide... -
Page 3: Hm-650 Basics
Battery life: 9 hours D/A Chip: WM8740 Frequency response: 20HZ-20KHz Distortion: 0.008%(Line out) S/N: 106±4dB SD Card Memory: 128G Acceptable music formats: MP3, ACC, WMA, OGG APE(16Bit/44.1KHz,48.0KHz,88.2KHz, 96.0KHz,192.0KHz) 16Bit & 24Bit: WAV, FLAC, AIFF (except 176.4KHz) 24-pin Dock HM-650 Owner's Guide... -
Page 4: Function Buttons
Basics Operation Other information Function Buttons Phone Out Balanced/Normal Volume Screen Hold Home Low/High Gain Play/Pause Classic/HD Next Back Power ON/OFF Reset Central Button Previous Direction Button Base Port Lock HM-650 Owner's Guide... -
Page 5: Power On/Off Key
Operation Other information Power ON/OFF Hold the power key up for 2-3 sec to turn on the player when HM-650 is powered off. Hold the power key up for 2-3 sec to turn off the player when HM-650 is powered on. A dialog box will appear for you to select the mode. -
Page 6: Accessories
(except for the volume button) are disabled.When the player is unlocked, all the buttons are back to work. Accessories 1. Line out cable with 3.5mm plug. 2. Charger, for charging HM-650. 3. Battery: Li-ion +7.4V 1600 mAh, -7.4V 500 mAh 4. Owner’s Guide/Manual. HM-650 Owner's Guide... -
Page 7: Using Hm-650
HIFIMAN logo will appear. With HM-650 on, push the power key on the right side of the player up. A dialog box will appear for you to select the mode: power off or cancel. If you select “power off”, the player will shut down. -
Page 8: Reset
Should the player LCD become “frozen”, insert a proper tool in the reset hole to reboot the player. Charging The average battery time of HM-650 is nine hours. Please charge the player when you see a reminder of low power. We recommend that you use the original HIFIMAN charger. -
Page 9: Replacing The Amp Module
Basics Operation Other information Replacing the Amp Module your HM-650 to Amp module bay Clamp Take out the amp module Press the clamp down Please install the amp module in the opposite way of removing it. HM-650 Owner's Guide... -
Page 10: Operation
SD card menu update database. After the update, the wheel highlights a single track, the HM-650 will go to main menu. press the central button to play the will not be visible. HM-650 Owner's Guide... -
Page 11: Artist, Album And Genre
All Songs being solid. By entering Favorite from the main menu, you will see all After the player is started, you can the added songs. go to “browse all songs” from the main menu and play music. HM-650 Owner's Guide... -
Page 12: Play Menu
Playing, you will enter the interface show up. Press Yes to delete the file below. You can press Central Button you select. Note: Songs in play list to pause/play music. cannot be deleted. Setting HM-650 Owner's Guide... -
Page 13: System Version
Basics Operation Other information Repeat System Version On Main Menu, select “Setting”then Click to see the information on your go to “Repeat” to make your selection. HM-650’s current software version. HM-650 Owner's Guide... -
Page 14: Backlight
Basics Operation Other information Backlight On Main Menu, select “Setting” You have the option to set the time for the player on as “always on, selection. 10s, 30s, 1min and 2 mins”. HM-650 Owner's Guide... -
Page 15: Brightness
Basics Operation Other information Brightness CUE Support You can select to turn on/off Set the display brightness from 1 to CUE Support function. 5.Note: The brighter your display the more battery life will be affected. HM-650 Owner's Guide... -
Page 16: Language
Basics Operation Other information Updating Media Language Database On Main Menu, select “Setting” then go to “Language” to make your update the index information for all selection. HM-650 Owner's Guide... -
Page 17: Reset Settings
Basics Operation Other information Reset Settings Perform Factory Data Reset. Warning: Performing a Factory Data Reset will clear the player's memory and put it back to the original factory default state. HM-650 Owner's Guide... -
Page 18: Other Information
3 Other information Product Safety Note: Make sure not to place heavy items on HM-650 to avoid possible damage to the player. Be careful not to drop or hit your player. Keep the player away from rain, water, drinks, chemicals and cosmetics, etc. -
Page 19: Hm-650 Service And Support
It is recommended not to use headphones while riding, driving or operating motor vehicles. If you experience ringing in your ears, please reduce the volume or turn off your player. HM-650 Service and Support for warranty service and support. HM-650 Owner's Guide... -
Page 20: Recycling Information
The disposal of your HM-650 should be separated from household waste because the player contains electronic parts and battery. When your HM-650 reaches its end of life, please contact your local environmental department for disposal and recycling information or you could simply send it back to us. - Page 22 Customer Service: 201-HIFIMAN (443-4626) customerservice@hi man.com www.hi man.com facebook.com/hifimanelectronics twitter.com/hifimanofficial HM-901 Owner's Guide...
