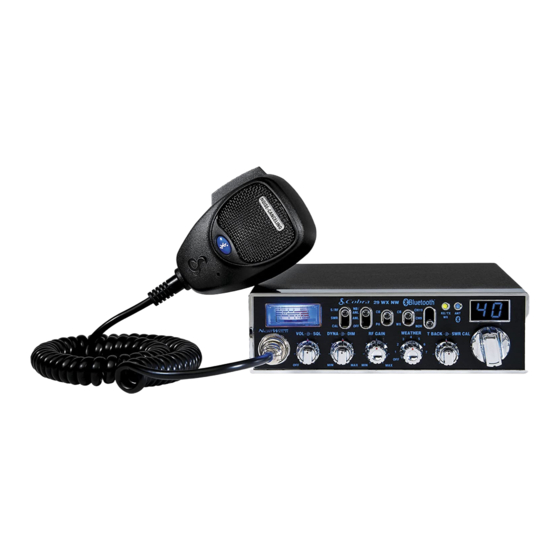

How to Use Your
Cobra 29 WX NW BT
Contents
Features ..................................................................................................1
The CB Story .........................................................................................A1
FCC Regulations
FCC Warnings
Included Accessories
Controls & Indicators ........................................................................A2
Our Thanks to You ..............................................................................A3
SoundTracker
™
Customer Support
Installation
Location .............................................................................................2
Mounting and Connection .........................................................2
Antennas
CB Antenna.......................................................................................6
Marine Installation .........................................................................6
Ignition Noise Interference ............................................................7
Operating Your 29 WX NW BT
Turning On Your CB........................................................................8
Setting Channel Selector .............................................................9
Calibrate For SWR (Standing Wave Ratio)..............................10
To Receive..........................................................................................12
Selecting a Channel.......................................................................13
S-Meter ...............................................................................................13
NB-ANL/ANL/Off (Noise Blanker/Automatic.........................16
CB/WX Switch...................................................................................17
RF Gain Control................................................................................17
Dimmer Switch ................................................................................18
Setting Squelch ...............................................................................18
To Transmit........................................................................................20
..........................................................................20
®
Transmit..............................................................................................21
RF Meter .............................................................................................22
External Speaker .............................................................................23
PA (Public Address) ........................................................................24
Weather Channels ..........................................................................26
Home And Office Set-Up .............................................................28
Temporary Mobile Set-Up ...........................................................29
How Your CB Can Serve You ...........................................................30
A Few Rules You Should Know ..................................................30
Channel 9 Emergency Messages..............................................30
Weather Channel Messages .......................................................31
CB 10 Codes......................................................................................32
Frequency Ranges..............................................................................34
29 WX NW BT Specifications..........................................................35
Warranty Information.......................................................................36
Optional Accessories ..................................................................37-38
Order Form ............................................................................................39
If You Need Service/Trademark Info.........................Back Cover
Features of This Product
• 7 Weather Channels
• Emergency Weather Alert
• Bluetooth® Connectivity
• 40 CB Radio Channels
®
• SoundTracker
System
• Heavy-Duty Dynamic
Microphone
• Full 4 Watts AM RF Power Output
• SWR Calibration Meter
• Instant Channel 19 and 9
• Front Panel 6-Pin Microphone
Connector
• Switchable Automatic Noise
Limiter & Noise Blanker
• Adjustable Dynamike Boost
• Tactile Controls
• 9 Ft Mic Cord
• Illuminated Front Panel
• Dimmer Control
• RF Gain
CAUTION
Risk of electRic shock
do not open
caution: to Reduce the Risk of electRic
shock do not Remove coveR (oR back)
no useR seRviceable paRts inside
RefeR seRvicing to qualified seRvice
peRsonnel
1
