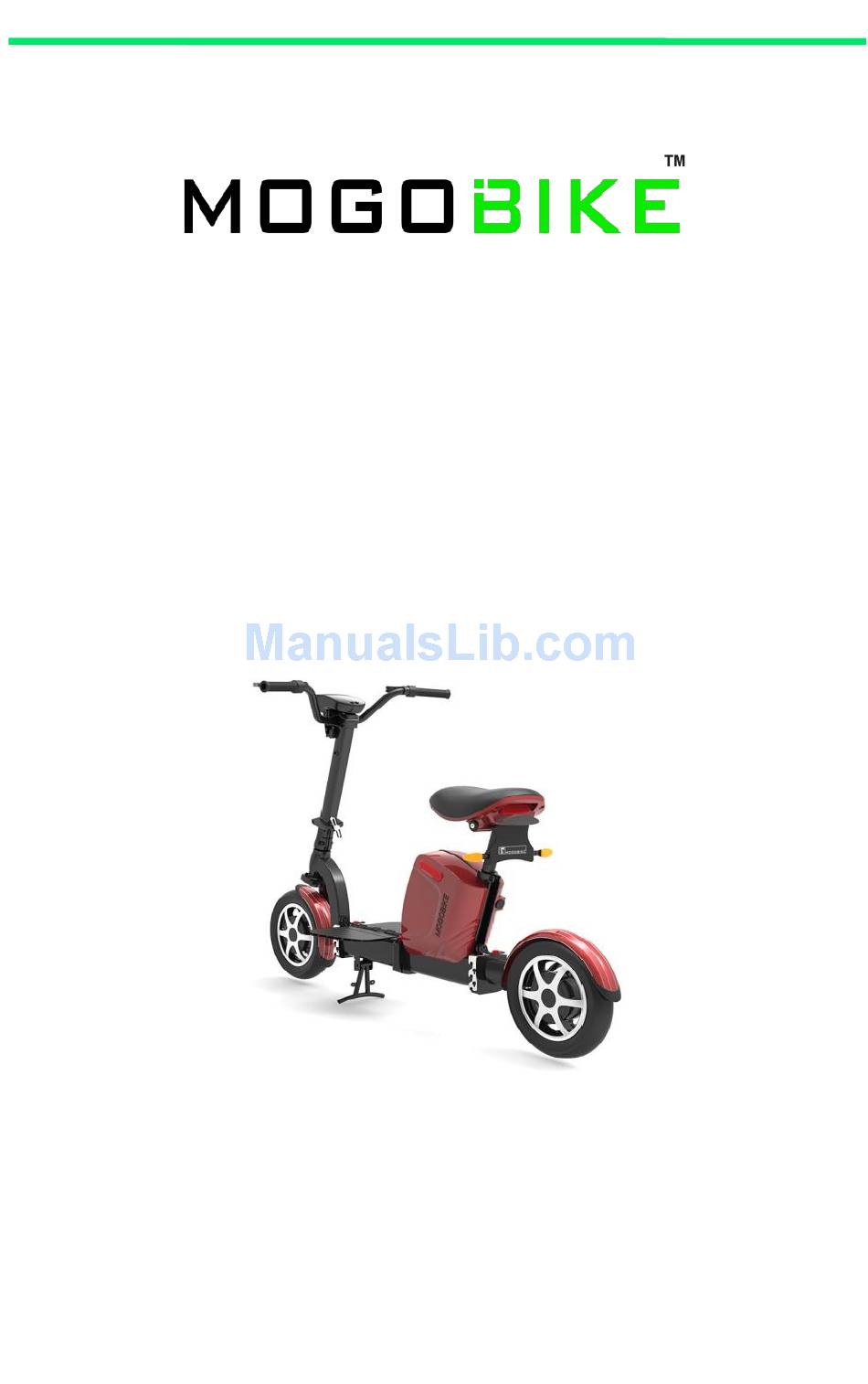

Page 1: User Manual
User Manual MB-6000-UD Rev. 1.03...
Page 2: Table Of Contents
Table of Contents The Controls Unit Operations Folding the Unit Folding the Handlebars Unlocking and Unfolding Precautions and Starting Power Assist Mode Maintenance and Care III. Specifications Pg. 2...
Page 3 The Mogobike was built for durability while also providing flexibility on the go. Whether on a bus, train, boat or RV, the Mogobike folds into a compact size for easy storage. This user manual contains all essential information for the user to make full use of the Mogobike.
Page 4: The Controls
The distance counter located at the top right of the monitor acts as a mileage/kilometer countdown, estimating how much distance is available based on remaining battery life. After a rider's first run, the Mogobike creates a baseline for the rider, as remaining distance depends on the weight and riding style of the rider.
Page 5 The Mogobike provides some error readings back to the rider in case the bike encounters a problem. If the Mogobike emits an error, the "Vehicle Alert" icon will display on the monitor. In the case of an error, contact the Mogobike support department.
Page 6: Unit Operations
PERATION Folding the Mogobike Folding the Mogobike is a quick and easy operation, but one that takes a little practice in the beginning. To shorten the learning curve, this section will walk users through folding their Mogobike. Take notice of the position of the locking hinges.
Page 7 PERATION To begin folding the unit, from the left side of the unit, position your hand on the rear of the seat. Pull the seat towards you and the two rear hinges will pivot until they come together as shown. Rotate the opposite foot pad until it rests in place in a vertical position.
Page 8: Folding The Handlebars
PERATION Folding the Handlebars Rotate the mirrors 180 degrees until the narrow end of the mirror is pointing towards the unit. Push the mirror downwards and fold it against the grip. Release the handlebar pressure lock to expose the handlebar push pins.
Page 9 Position your thumb on the clip to release tab. Push the clip release tab away from the latch. Mogobike, completely folded and ready for storage. This will release the latch in the process. Pg. 9...
Page 10: Unlocking And Unfolding
PERATION Unlocking and Unfolding The Mogobike uses a unique hinge locking system to hold the unit together when folded. To unlock and unfold the unit, begin at the rear of the unit. With the toe of your shoe, depress the front of the lock. This will release the locking pin.
Page 11 Engaging the Motors — The Green Multi-Function Button The Mogobike includes a safety feature. One of the problems with electric vehicles is the lack of an audible cue that the vehicle is on.
Page 12 Power assist offers three speeds to adjust to a user’s pace or on uneven terrain or inclines.  The walking pace of the Mogobike in power assist can be cycled through by using the multi-function control button.  The user controls the amount of acceleration through use of the throttle.
Page 13: Power Assist Mode
Hold down the green multi-function button and turn the unit on. The Mogobike will display the prompt “Fold” along with a number on the monitor. The unit is now in power assist mode as indicated by the monitor. The number indicates what speed level the unit is at when initiated.
Page 14: Maintenance And Care
AINTENANCE AND Maintenance and Care It is important to properly maintain your Mogobike to insure consistent, long-lasting performance. Keep the unit clean of dirt and debris that collects on the unit over time. Use a soft cloth to wipe down the frame and plastics.
Page 15 Check the hinges and plastic locking clips. Evaluate the locking strength of the latch in the clip and tighten if necessary. Offseason Maintenance Store the Mogobike in a dry place that is not subject to large amounts of moisture or humidity. Do not store the Mogobike outside during incidental weather.
Page 16: Specifications
PECIFICATIONS Expanded size 57″ L x 24″ W x 38″ H Folded size 18″ L x 14″ W x 25″ H Axial distance 44″ Wheel size 12″ Maximum speed 20 mph on flat surfaces at a 200 lb load weight Range 20 miles at a 200 lb load weight Battery...
Page 17 OTES Pg. 17...
Page 18 OTES Pg. 18...
Page 19 OTES Pg. 19...
Page 20 Customer Support Contact Information Office: (702) 982-6598 Email: support@mogobike.com Web: www.mogobike.com Address: 6402 Montessouri Street Las Vegas, NV 89113 Pg. 20...
