・Body

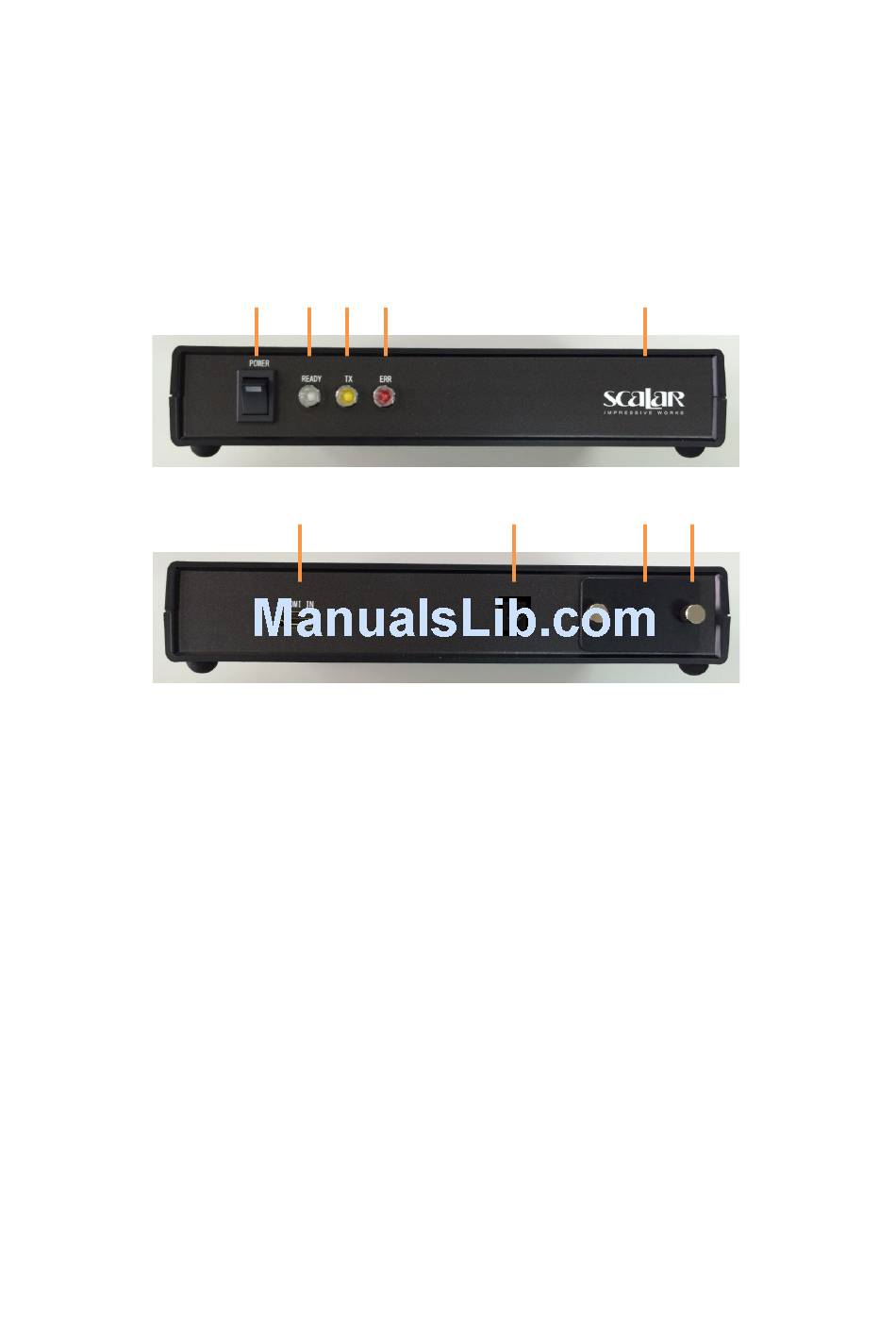

① Power Switch
Switch ON, then Green LED lights up
③ TX LED
Flashing after having started up to match
the transmission image .
⑤ Logo mark
⑦ DC IN 5V 2A Jack
supplied AC adapter.
⑨ LAN connecter cover
①
② ③ ④
⑥
Be sure to use the
Fron
⑦
t
DC
IN
5V
2A
Center
+
Bac
k
② READY LED
Flashing at approx. one second
intervals after having powered up
④ ERR LED
After start-up, flashing is due to input
error etc.
⑥ HDMI IN connecter
Connects the HD output to video
equipment
⑧ LAN connecter lid locking screw
⑤
⑧
⑨
Advertisement
Summary of Contents for Scalar VT-200
- Page 1 ■ ・Body ① ② ③ ④ ⑤ Fron ⑥ ⑦ ⑧ ⑨ DC IN 5V 2A Center + ① Power Switch ② READY LED Switch ON, then Green LED lights up Flashing at approx. one second intervals after having powered up ③...
- Page 2 To install the "ScalarView" on an iPhone or an iPad from the AppStore (Current version 2.2), perform the following: １．Tap the AppStore icon. ２．Tap the search icon and input “Scalar,” then tap “Scalar Corporation” in the list. ３．Scroll through the list and select “ScalarView” .
- Page 3 VT-200 designated by the Server IP address . ・Server IP Address: You can connect to the VT-200 of the Server IP Address from the same network. You can confirm the Server IP Address of the VT-200 with the Setup screen.
- Page 4 If the purchaser is not satisfied in this 10 day period, the unit may be returned with all of the packaging and documentation for a full refund. 4. Please turn ON the power switch on the front of the VT-200 and the green LED power switch lights up.
- Page 5 Pad. １．Tap the “ScalarView” icon on the iPhone or iPad. ２．If “Num Channels” is set as other than 1, the names of the VT-200 which are already connected will be displayed. Please tap the name of the VT-200 which you want to connect.
- Page 6 If “Num Channels” is set as 1, “Please Wait” will be displayed and then the image will be displayed soon thereafter. You can use the following features: Pinch- In, Pinch-Out, Double-Tap and Slide. You can capture the screen by tapping the camera icon. ３．Each icon will be displayed according to the initial setting of the ScalarView.
- Page 7 ３．Explanation of functions IP Address of the VT-200 connecting via wireless LAN ・server=192.168.10.100: Put the name of the identity of the connected device ・Label: when the Channel number is higher than 2. Output resolution. Not to input, but to select from ・Resolution:...
- Page 8 SSID will become the new default each time you turn on the unit. ・Please tap the (i) icon of the right side of SSID (VT-200-5G when delivered from the factory) on the setting screen and the details will appear . Please tap “Delete this setting of the network,”...
- Page 9 WiFi as it did previously. ・In the iPhone or the iPad settings screen, was the Wi-Fi connection set to “VT-200-5G (the factory default setting)? If it is not showing this “VT-200-5G , the reason may be that the VT-200 may need to be turned off and then back on.
