Summary of Contents for Gima DIATERMO 106
-
Page 1: Interruttore Di Alimentazione
MANUALE D’ISTRUZIONI / INSTRUCTION’S MANUAL / MANUAL DE INSTRUCCIONES DIATERMO 106 MA126IGBEa... -
Page 2: Connettori
Ed.01-2006 MA126IGBEa... -
Page 3: Importante / Important / Importante
DIATERMO 106 GIMA SpA IMPORTANTE / IMPORTANT / IMPORTANTE Queste istruzioni operative costituiscono una parte fondamentale dell’apparecchiatura per chirurgia ad alta frequenza, in quanto ne descrivono il funzionamento e l’uso, pertanto devono essere lette attentamente prima di iniziare l’installazione e l’uso dell’apparecchiatura. -
Page 4: Table Of Contents
GIMA SpA DIATERMO 106 INDICE / INDEX IMPORTANTE / IMPORTANT / IMPORTANTE ............3 INDICE / INDEX......................4 1. INTRODUZIONE ...................... 6 1.1 C ........................6 ONTROLLO LISTA PARTI 1.2 D ........................6 ESCRIZIONE ENERALE 1.3 T ........................6 AGLIO ONOPOLARE 1.4 C... - Page 5 DIATERMO 106 GIMA SpA 4.3.3 Warning Signals ........................24 5. TECHNICAL SPECIFICATIONS ................. 25 5.1 GENERAL ............................25 6. PREVENTIVE MAINTENANCE ................26 6.1 GENERAL ............................26 6.2 CLEANING OF THE CABINET ..................... 26 6.3 CLEANING AND STERILIZATIONOF THE ACCESSORY ITEMS ..........26 6.4 CHECKING OF THE EQUIPMENT BEFORE EACH USE ............
-
Page 6: Introduction
The type of surgical operation which can be carried out are those where monopolar minor electrosurgical cutting or coagulation is requested. Use of DIATERMO 106 is restricted to trained medical personnel, and it is to be used only for the purposes set down by the manufacturer. -
Page 7: Monopolar Coagulation
DIATERMO 106 allows coagulation with deep modulation producing blend wave form with high crest- factor so more thermal effect and consequently hemostatic effect than with pure sine current has achieved. -
Page 8: Safety
DIATERMO 106 GIMA SpA 2. SAFETY WARNING These operating instructions form an integral part of the equipment and must be available to the operating personnel at all times. All the safety instructions and advice notes are to be observed. Be sure that these operating instructions is furnished together the equipment when this is transferred to other operating people. -
Page 9: Installation
2.2 INSTALLATION The electric safety of DIATERMO 106 is insured only when the same is correctly connected to an efficient net linked to the earth in conformity with the actual safety requirements. It is neccessary to verify this fundamental safety requisite and, in case of doubt, to require an accurate control of the plant from part of qualified personnel. -
Page 10: Installation
DIATERMO 106 GIMA SpA 3. INSTALLATION Inspect the equipment for damage during transit. Any damage should be reported to the carrier immediately. Unpack the equipment and carefully study the documentation and operating instruction supplied. The mains input voltage, indicated up the equipment mains input, must agree with the local mains voltage (mains frequency: 50-60 Hz). -

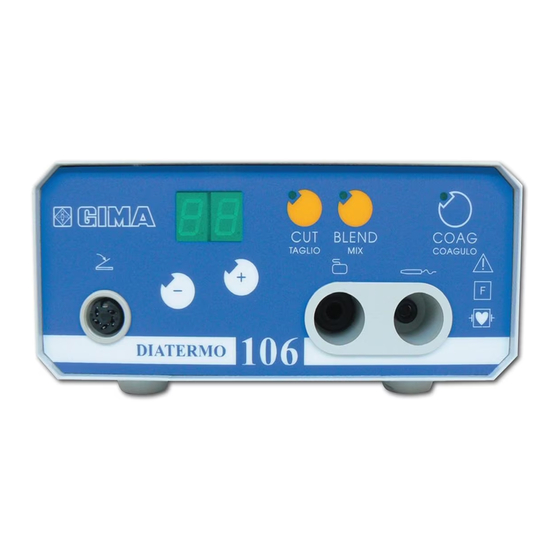

Page 11: Connectors And Controls
YMBOLS EANING The meaning of the graphic symbols printed on the DIATERMO 106 's cabinet is the following: 1. Floating Patient's plate: not connected to the earth neither at low-frequency nor at high frequency. 2. The equipment is protected against H.V. discharge due to the use of a Cardiac Defibrilator. -
Page 12: Equipment Mains Input Module And Voltage Selector
DIATERMO 106 GIMA SpA 4.2.1 E QUIPMENT AINS NPUT ODULE AND OLTAGE ELECTOR The equipment mains input module provides the connection point for the power of the equipment's internal electronics. The mains input module incorporates the mains input socket, the main input voltage selector and in-line mains fuses. -
Page 13: Connector
GIMA SpA DIATERMO 106 Pressing this key Blend current, i.e. modulated current is preset, to be delivered when the foot-switch output control is activated. Crest factor of the Blend current is 1.8. Blend current preset condition is indicated by green LED which will illuminate. -
Page 14: Technical Specifications
DIATERMO 106 GIMA SpA 5. TECHNICAL SPECIFICATIONS 5.1 GENERAL Equipment Description: H.F. Electrosurgery Equipment for monopolar minor surgery. The unit provides the facilities to fine preset the output power level and choose the coagulating effect through the appropriate Crest Factor. -
Page 15: Ma126Igbea Manuale D'istruzioni / Instruction's Manual / Manual De Instrucciones
GIMA SpA DIATERMO 106 6. PREVENTIVE MAINTENANCE 6.1 GENERAL No user adjustable parts are within the equipment, either for calibration or service purposes. The equipment housing must not be opened: the warranty is invalidated by any unauthorized entry into the unit. -
Page 16: Introducción
DIATERMO 106 GIMA SpA OUTPUT POWER DIAGRAMS Diagramma valori a metà potenza / Half power diagram CUT0 CUT1 COAG Diagramma valori alla potenza massima / Max power diagram CUT0 CUT1 COAG Diagramma linearità CUT / CUT linearity diagram Potenza indicata / Diplay Pow er (W) Manuale d’istruzioni / Instruction’s Manual / Manual de Instrucciones... -
Page 17: Coagulación Monopolar
GIMA SpA DIATERMO 106 Diagramma linearità BLEND / BLEND linearity diagram Potenza indicata / Display power (W) Diagramma linearità COAG / COAG linearity diagram Potenza indicata / Display power (W) Informazioni in base all’Art. 13 del D.Lgs. 151/05 del 25/07/2005 “Attuazione delle Direttive 2002/95/CE e 2003/108/CE, relative alla riduzione di sostanze pericolose nelle apparecchiature elettriche ed elettroniche, nonché...
