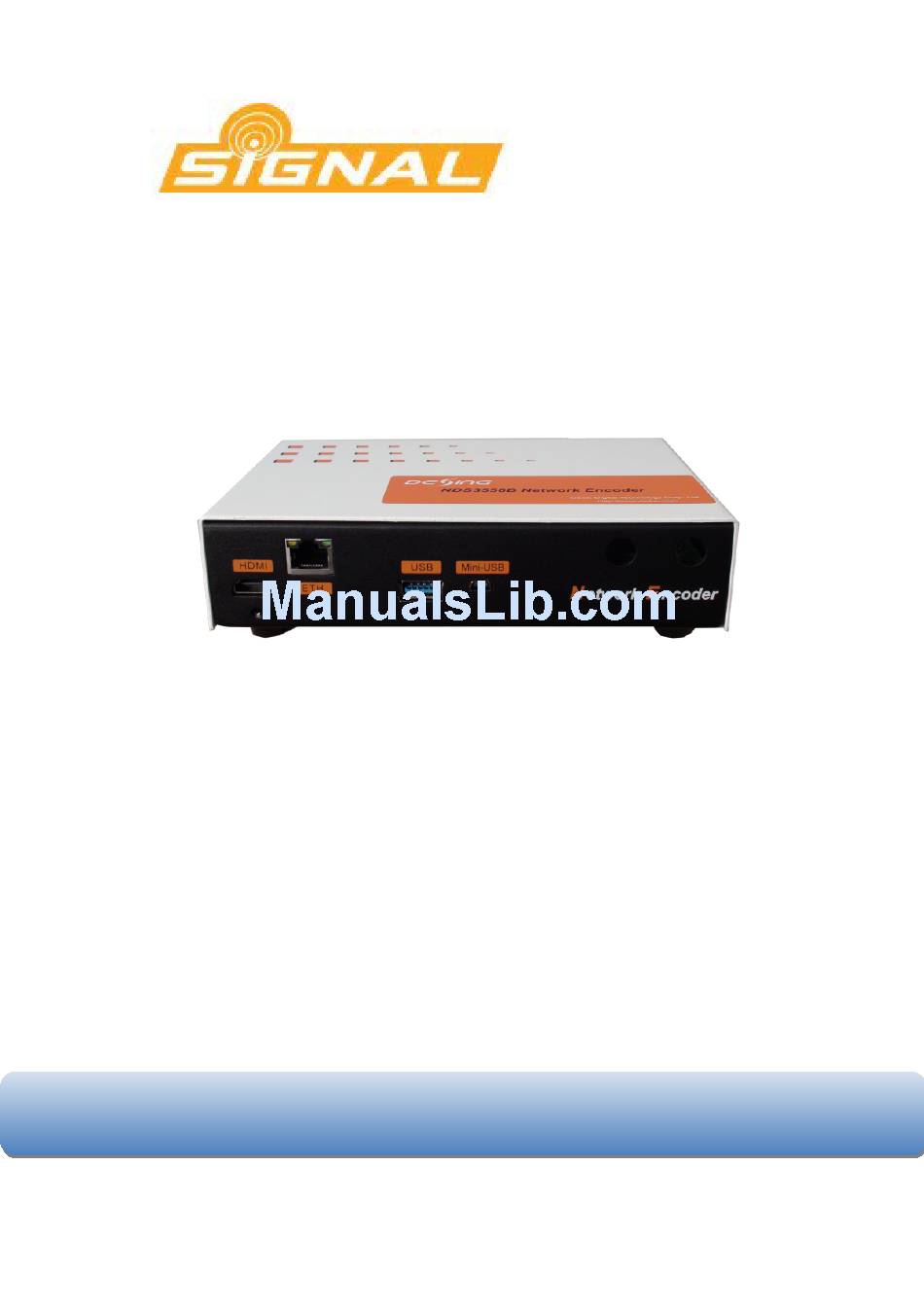

Page 1: User Manual
Signal-433 Network Encoder User Manual SW Version: 1.0 HW version: 1.0 Web NMS version: 1.0... -
Page 2: About This Manual
About This Manual Intended Audience This user manual has been written to help people who have to use, to integrate and to install the product. Some chapters require some prerequisite knowledge in electronics and especially in broadcast technologies and standards. Disclaimer No part of this document may be reproduced in any form without the written permission of the copyright owner. -
Page 3: Table Of Contents
Signal-433 Network Encoder User Manual Directory CHAPTER 1 INTRODUCTION....................... 1 1.1 P ...........................1 RODUCT VERVIEW 1.2 K ............................1 EATURES MULTIPLE STREAMS OUT WITH DIFFERENT PROTOCOL/RESOLUTION/BITRATE….........1 RESOLUTION DOWNSCALE CONVERSION................... 1 1.3 P ............................1 RINCIPLE HART 1.4 SPECIFICATIONS........................... 2 1.5 S ........................3... -
Page 4: Chapter 1 Introduction
PC, phone and other mobile terminals. Company Signal-433 lets you access your IP STB, PC or TV anywhere to watch your programs. Whether you are in your house or across the globe, you'll never miss a game or your favorite show. -
Page 5: Specifications
Signal-433 Network Encoder User Manual 1.4 Specifications 1920x1080_60p, 1920x1080_60i 1920x1080_50p,1920x1080_50i Resolution 1280x720_60p ,1280x720_50p Video 720x576_60i ,720x576_50i Encoding MPEG-4 AVC/H.264 Bit rate 1Mbps~15Mbps Encoder HDMI input MPEG1 Layer II, MPEG2-AAC, Encoding MPEG4-AAC Audio Sample 48KHz, 44.1KHz(RTMP) rate Bitrate 48,64, 96, 128kbps... -
Page 6: System Connection Samples
Signal-433 Network Encoder User Manual 1.5 System Connection Samples 1.6 Appearance and Description Page 3 / 23... -
Page 7: Chapter 2 Installation Guide
Signal-433 Network Encoder User Manual Chapter 2 Installation Guide Safety Instructions WARNING: Hot plug is not allowed since it may cause system halted. To prevent fire or electrical shock, do not expose the device to rain or moisture. The network encoder is powered with a voltage of 12V DC. The power supply voltage must not exceed the recommended voltage, which otherwise may cause irreparable damage to the device and the invalidation of the warranty. - Page 8 Connect the unit as below instructed. NO HOT PLUG! Connect the signal input in the respective connectors. The signal source can be from a surveillance monitor, DVD, set-top box, CCTV and etc. In case of connecting to a wired network, connect the encoder Ethernet port and terminal's Ethernet port wiht ethernet cable.
-
Page 9: Chapter 3 Web Nms Operation
Signal-433 Network Encoder User Manual Chapter 3 WEB NMS Operation Without front buttons to control the network encoder and USB device, users can just perform the operation with the web Brower in the PC (Personal Computer). Login The default IP address of this device is 192.168.200.64. (We can modify the IP through the front panel.) - Page 10 From the menu on up side of the webpage, clicking “CH1”or “CH2” or”CH3”, it displays the interface where users can configure the encoding parameters for the output channel. Signal-433 supports up to 3 streams out with different protocol, resolution, bitrate, etc. (Figure-3) Signal-433 supports IP output over UDP (Unicast/multicast), RTMP and HLS.
- Page 11 Signal-433 Network Encoder User Manual Figure-4 Backup/Load: From the menu on up side of the webpage, clicking “Backup”, it will display the screen as Figure-5 where to backup or load your configurations. Browse… Figure-5 System → Update (Web)/(App)/(CPU): From the menu on up side of the webpage, clicking “Update”, it will display the screen as Figure-6 where to update the corresponding part for the device.
- Page 12 Signal-433 Network Encoder User Manual Tools→NFS: Before upgrading by NFS, users should connect the NFS server IP by entering the NFS server IP address and server path.( Figure-7) Figure-7 System → Password: From the menu on up side of the webpage, clicking “Password”, it will display the screen as Figure-8 where to set the login account and password for the web NMS.
- Page 13 Signal-433 Network Encoder User Manual From the menu on up side of the webpage, clicking “Security”, it will display the screen as Figure-10 where to disable or enable telent function for the device. Figure-10 Tools→RTMP: From the menu on up side of the webpage, clicking “RTMP”, it will display the screen as Figure-11 where to set the RTMP flash player for the device.
- Page 14 Before setting USB, users should click “ ” to stop all output. NOTE: It is necessary to connect USB device and signal source and activate encoding to operate TS recording. NOTE: It is necessary to connect USB device when operate TS playing.
-
Page 15: Chapter 4 Network Connection And Setup
USB Pen Server) Steps: 1. Connect to STB/DVD etc with signal cable or insert USB memory with xx.ts files to provide signal source. 2. Connect to Wi-Fi router (Keep the encoder IP and router IP in the same network segment.) 3. -
Page 16: Situation 2: Wan Network
Signal-433 Network Encoder User Manual HLS Protocol: Http://IP address: IP port/program name. m3u8 (e.g. http://192.168.200.66:8080/output0.m3u8 RTMP Protocol: Rtmp: //IP address: IP port/program name (e.g. rtmp://192.168.200.55/live/output0) UDP Protocol: Udp: //@IP address: IP port (e.g. udp://@192.168.0.137:12002) 3) Play the video/audio with media player (VLC is recommended) on computer. - Page 17 Signal-433 Network Encoder User Manual Steps: 1. Connect to STB/DVD etc with signal cable or insert USB memory with xx.ts files to provide signal source. 2. Connect to router (Keep the encoder IP and router IP in the same network segment.) 3.
