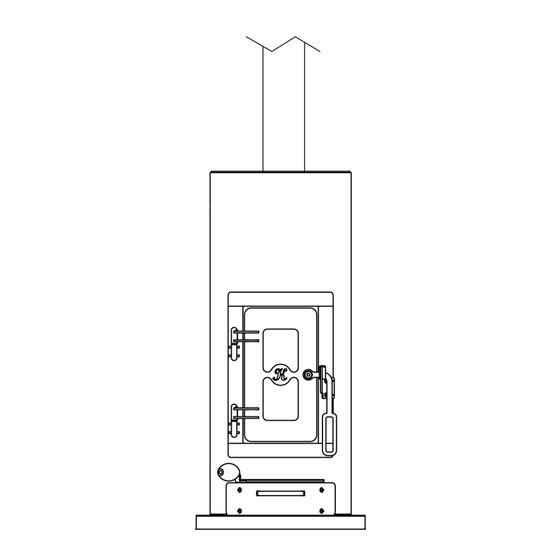

K i mb e r l y ™ Wo o d S t o v e
U n f o r g e t t a b l e F i r e ™

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Kimberly and is the answer not in the manual?

Questions and answers

Related Manuals for Unforgettable Fire Kimberly

Summary of Contents for Unforgettable Fire Kimberly

  • Page 1 ™ K i mb e r l y ™ Wo o d S t o v e U n f o r g e t t a b l e F i r e ™...
  • Page 2 Save These Instructions Please read this entire manual before you install your Kimberly™ wood stove heater. Failure to follow these instructions may result in property damage, bodily injury, or even death. Manufacturer’s Contact Information: Unforgettable Fire™ 10215 SW 116th Street Vashon, Washington 98070 U.S.A.

  • Page 3: Table Of Contents

    T A B L E O F C O N T E N T S T e s t i n g I n f o r ma t i o n ............................1 U n p a c k i n g K i mb e r l y ™.
  • Page 4 T A B L E O F C O N T E N T S D o ’ s ................................1 5 D o n ’...

  • Page 5: Testing Information

    5. The outside surface of the Kimberly™ wood stove heater is very hot when in use, and could be a source of ignition. Be sure to keep all furnishings such as drapes and other flammable items away from the stove.

  • Page 6: Negative Pressure Warning

    9. Do not operate the Kimberly™ wood stove heater with the door open. Not only will the Kimberly™ fail to achieve secondary combustion and not operate properly with the door open, but the potential for stray embers to leave the combustion chamber is a safety hazard.

  • Page 7: Creosote & Chimney Fires

    To become sufficiently dry to burn, wood can not be left in wet or damp conditions. The Kimberly™ stove will not operate at the efficiency level for which it was designed unless you burn properly seasoned wood at 20% moisture content or less. We recommend that you purchase and use a moisture meter to be sure your wood is adequately seasoned.

  • Page 8: Clearance To Combustibles

    FLOOR PROTECTION The floor underneath, to the sides, and to the rear of the Kimberly™ wood stove heater must be protected by a minimum of 3/8-inch (1 cm) thick UL-1618 Type-1 floor pad, which is made from non-combustible material. The floor pad must extend 18 inches (45.72 cm) in front of the loading door, 8 inches (20.32 cm) to the sides, and 12...
  • Page 9 Kimberly™ itself, and the required safety clearance from combustibles, but also the flow of traffic in the room. In most cases, the obvious location for the Kimberly™ wood stove heater would be in the central part of the house, to provide for more even heat distribution.

  • Page 10: Additional Requirements For Mobile Home Installations In The U.s.a

    The Kimberly™ wood stove heater has a 2-inch (5.1 cm) air inlet under the base of the stove to accommodate such a kit. The Kimberly™ wood stove heater may include an additional air inlet at the back of the stove. Use one outside combustion air inlet or the other, but not both.

  • Page 11: Connecting To A Pre-Existing Masonry Fireplace Chimney

    7. From inside the house, adjust the 3-inch diameter pellet pipe to a 90-degree curve and pull it to the correct length for attachment to the Kimberly™ wood stove heater. Remove any protective tape from the end of the 3-inch pellet pipe and fasten the pellet pipe to the Kimberly™ wood stove heater, using a minimum of three self-tapping screws.

  • Page 12: Relining A Pre-Existing Masonry Chimney

    1. See Diagram #9. 2. The Kimberly™ wood stove heater is approved to use any UL-Listed legally rated 3-inch (7.62 cm) double wall (18-gauge stainless steel lined) multi-fuel pellet pipe as a connector from the flue outlet on the stove to the opening of the masonry chimney.

  • Page 13: Connecting To A Pre-Existing Manufactured Chimney

    1. See Diagram #10. 2. The Kimberly™ wood stove heater is approved to use any UL-Listed legally rated 3-inch (7.62 cm) double wall (18-gauge stainless steel lined) multi-fuel pellet pipe as a connector form the flue outlet on the stove. We recommend BioVent®...

  • Page 14: A D D I T I O N A L R E Q U I R E Me N T S F O R Mo B I L E H O Me S I N S T A L L A T I O N S I N T H E U . S

    STARTING & MAINTAINING A FIRE 1. When the installation is complete and it is time to lay a fire in the Kimberly™ wood stove heater, we urge you to “think small”. It is important to start with a small fire to warm the chimney and establish a good draft in the chimney before building a bigger fire inside the combustion chamber.

  • Page 15: R E P L A C I N G T H E G R A T E / A S H D U Mp C O V E

    (to the right). Make it a habit during the first few days of burning the Kimberly™ wood stove heater to monitor the smoke output at the chimney top, so as to fully understand the operation of the damper/draft control. There should be little to no smoke exiting from the chimney, except for the initial start-up period (15-20 minutes) and at fuel reloading.

  • Page 16: T R O U B L E S H O O T I N

    PROTECTING THE GLASS WINDOW 1. Care should be taken to not damage the glass window in the door of the Kimberly™ wood stove heater, such as striking the glass, or closing the door against a protruding fuel load. Caution should be taken to keep the fire burning towards the back of the Kimberly™...

  • Page 17: C L E A N I N G T H E G L A S S Wi N D O

    3. To replace the Neoceram™ glass-ceramic window in the Kimberly™ wood stove heater, first allow the Kimberly™ to cool to a safe handling temperature, so that you will not get burned. Lift the glass door from its hinges and apply a liberal amount of a penetrating catalyst lubricant, such as PB Blaster® to the nuts holding the glass clips in place.

  • Page 18: R E P L A C I N G T H E C O Mb U S T O

    4. If the hex-head bolts are difficult to loosen, then warm the metal top of the Kimberly™ wood stove heater and try again, using caution so as not to strip the heads or threads of the bolts. If this is not successful in releasing the bolts, then apply a liberal amount of a penetrating catalyst lubricant, such as PB Blaster®.
  • Page 19 10. After a fire has been well established in the Kimberly™ wood stove heater, it should be operated with the damper/draft control in the mostly to fully closed position (to the right). There should be little to no smoke exiting the chimney except during start-up (15-20 minutes) and when reloading fuel.

  • Page 20: Don't !

    4. Do not store flammables anywhere near the Kimberly™ wood stove heater. 5. Do not use the Kimberly ™ wood stove heater if there are combustible gases in the house, such as propane leaks, or volatile fumes from adhesives, paints, or cleaning fluids.

  • Page 21: Replacement Parts

    This may cause over-firing. Over-firing the stove may cause a house fire. If the stove glows red, you are over-firing. 13. Do not modify the Kimberly™ wood stove heater in any way that is not consistent with the manufacturer’s specifications.
  • Page 22 Your warranty registration is complete when you have submitted photos of your completed installation to support@unforgettablefirellc.com. If you do not have internet access and are unable to activate your warranty online, call Unforgettable Fire™ at 1-855-872-7868 so that we can register your warranty on your behalf.
