Summary of Contents for REA Clematis

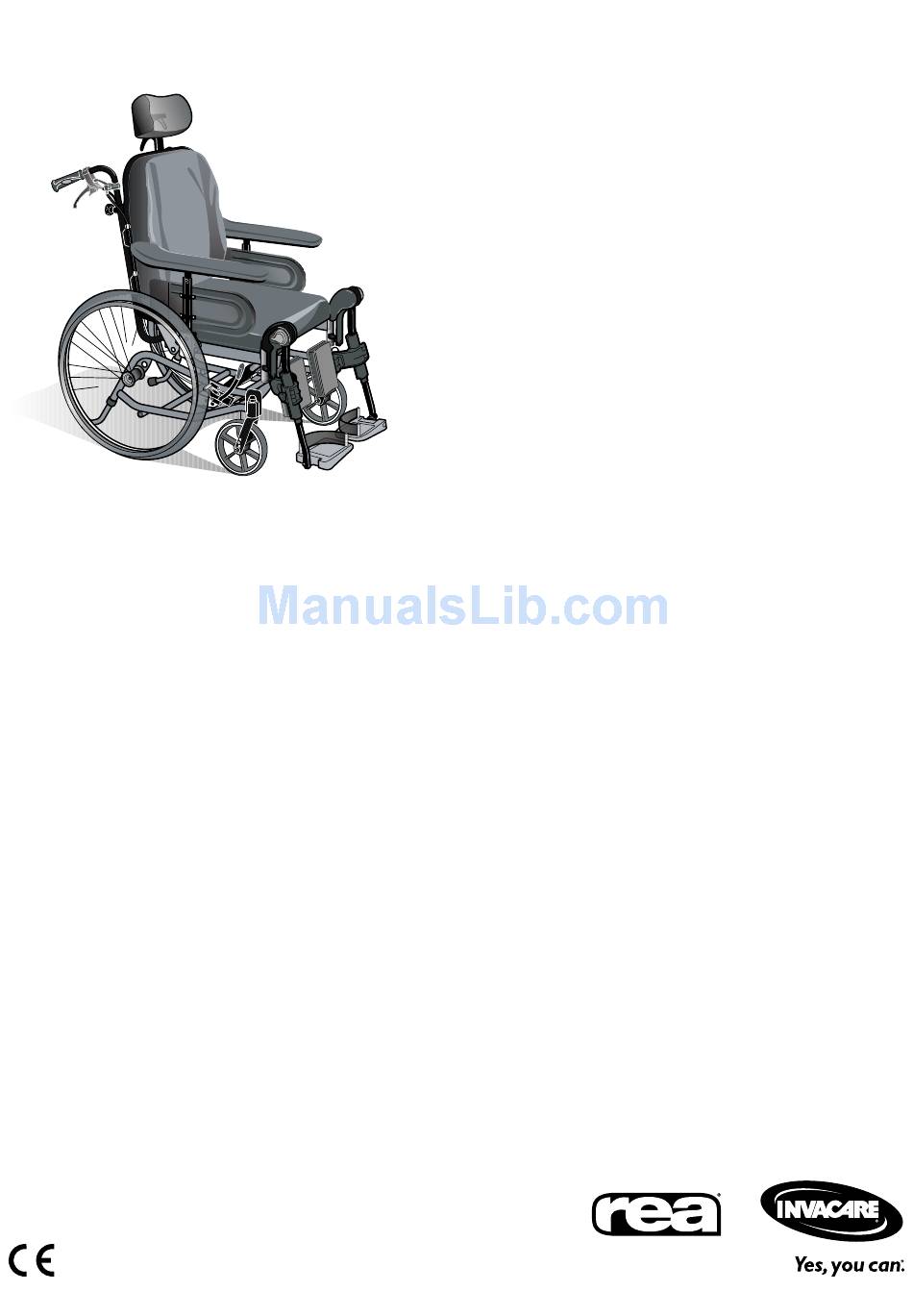

- Page 1 Rea® Clematis® en Manual wheelchair passive Service Manual DEALER: Keep this manual. The procedures in this manual MUST be performed by a qualified technician.
- Page 2 ©2017 Invacare®Corporation All rights reserved. Republication, duplication or modification in whole or in part is prohibited without prior written permission from Invacare. Trademarks are identified by ™and ®. All trademarks are owned by or licensed to Invacare Corporation or its subsidiaries unless otherwise noted.
-
Page 3: Table Of Contents
Contents 1 General ......... 4 1.1 Introduction . -
Page 4: General
For contact details please refer to the last page of this seat and backrest angle adjustment are included on the push publication where you will find the address to your local handles. The Rea Clematis® is available in three seat widths. European sales company. 1580314-C... -
Page 5: Assembly
Assembly 2.2 Mounting the attachment for table tray 2 Assembly 2.1 Mounting the trunk support Mount the table attachment A with the attachment part facing outwards. The plain surface B of the attachment should be placed upwards when using the table on the thin armrests. -
Page 6: Rear Wheels
Rea® Clematis® 2.5 Rear wheels Mounting 1. Press and hold in the quick-release button A. 2. Place the rear wheel axle B in the rear wheel attachment C. Mount the handle for the assistant maneuvered drum 3. Pull the wheels outwards to check that the wheel is brake A on the push handle and attach the screws B. -
Page 7: Mounting The Chassis Extender
Assembly 2.7 Mounting the chassis extender 2.8 Mounting the pommel Loosen the screws A and the nuts B. Loosen the screws A and remove the seat plate B. 5 mm allen key Remove the castor attachments C. Turn the seat plate B upside down and mount the tee nuts C. -
Page 8: Mounting The Drip Stand
Rea® Clematis® 90° 90° Re-mount the seat plate B on the seat frame and tighten the screws A. 5 mm allen key Mount the holder for the drip stand A on the neckrest holder and tighten the screw B. allen key 5 mm Place the pommel F in the attachment and tighten the handwheel G. -
Page 9: Settings And Adjustments
Settings and Adjustments 3.2 Width adjustment 3 Settings and Adjustments 3.1 Positioning the headrest/neckrest to the front This additional depth adjustment will move the headrest another 7 cm forward. Loosen the 4 screws A. Adjust the attachment bars B in order to fit the table to the desired width. -
Page 10: Adjusting The Brake Effect
Rea® Clematis® 3.4 Adjusting the brake effect CAUTION! Risk of trapping fingers – Be careful not to trap your fingers between the brake pin B and rear wheel C. 3.4.2 Drum brake — adjustments The distance A between the pin B and the tire C should be max. -
Page 11: Maintenance
Maintenance 3. Spray the wheelchair chassis with detergent, for example 4 Maintenance a car-cleaning agent with wax, and leave on to work. 4. Rinse the wheelchair chassis with a high-pressure cleaning or ordinary jet of water depending on how dirty 4.1 Safety information the wheelchair is. - Page 12 Rea® Clematis® Components Carer-operated brakes Check that the brake function is good, if not: 1. Check that the wire is intact, if not, it must be replaced. 2. Check that the wire cover is intact, if not, the wire must be replaced.
- Page 13 Maintenance Accessories Neckrest • Check that the angle adjustment works and that there is a memory function. Trunk support “Multi • Check that the angle adjustment works properly and that there is a memory function. functional” Abduction cushion • Check that the depth adjustment works. Table tray •...
-
Page 14: Checklist For Reconditioning
Rea® Clematis® 4.5.1 Checklist for reconditioning NOTE SIGN WASHING RECONDITIONING: Chassis Backrest angle Push handles / Push bar Backrest cover Seat cover Seat angle Carer-operated brake Armrests / Side rests Legrests Footrests Anti-tip device Rear wheels Rear wheel attachment Brakes... -
Page 15: After Use
We only use REACH compliant materials and components. Packing The wheelchair can be divided into the following main • All Invacare Rea AB packing material is developed to fit components: the products in an optimal way to reduce unnecessary Chassis material waste. -
Page 16: Technical Data
Rea® Clematis® 6 Technical data 6.1 Dimensions and weights WARNING! Limited access to emergency escape routes – In some combinations, the total width and length of the wheelchair exceeds the recommended measurements for emergency escape routes. – The recommended values concerning access to emergency escape routes are: Length max. 1200 mm and width max. - Page 17 Technical data 16” 20” 22” 24” Width of the wheels 1 3/4” 1 3/8” 1 - 1 3/8” 1 - 1 3/8” Wheel inclination 0° (Wheelchair without load) 1580314-C...
-
Page 18: Material
Rea® Clematis® 6.2 Material Chassis, backrest tubes Steel, powder coated Plastic parts like push handles, brake handles, foot plates Thermoplastic (e.g. PA, PE, PP, ABS and TPE) according to and parts of most accessories marking on the parts Upholstery (seat and backrest) Foam PUR and Polyether, fabric Dartex®... - Page 19 Notes...
- Page 20 Tel: (44) (0) 1656 776 222 Tel : (353) 1 810 7084 Fax: (44) (0) 1656 776 220 Fax: (353) 1 810 7085 uk@invacare.com ireland@invacare.com www.invacare.co.uk www.invacare.ie Manufacturer: Invacare Rea AB Växjövägen 303 SE-343 71 Diö Sweden 1580314-C 2017-01-01 Making Life’s Experiences Possible® *1580314C*...
