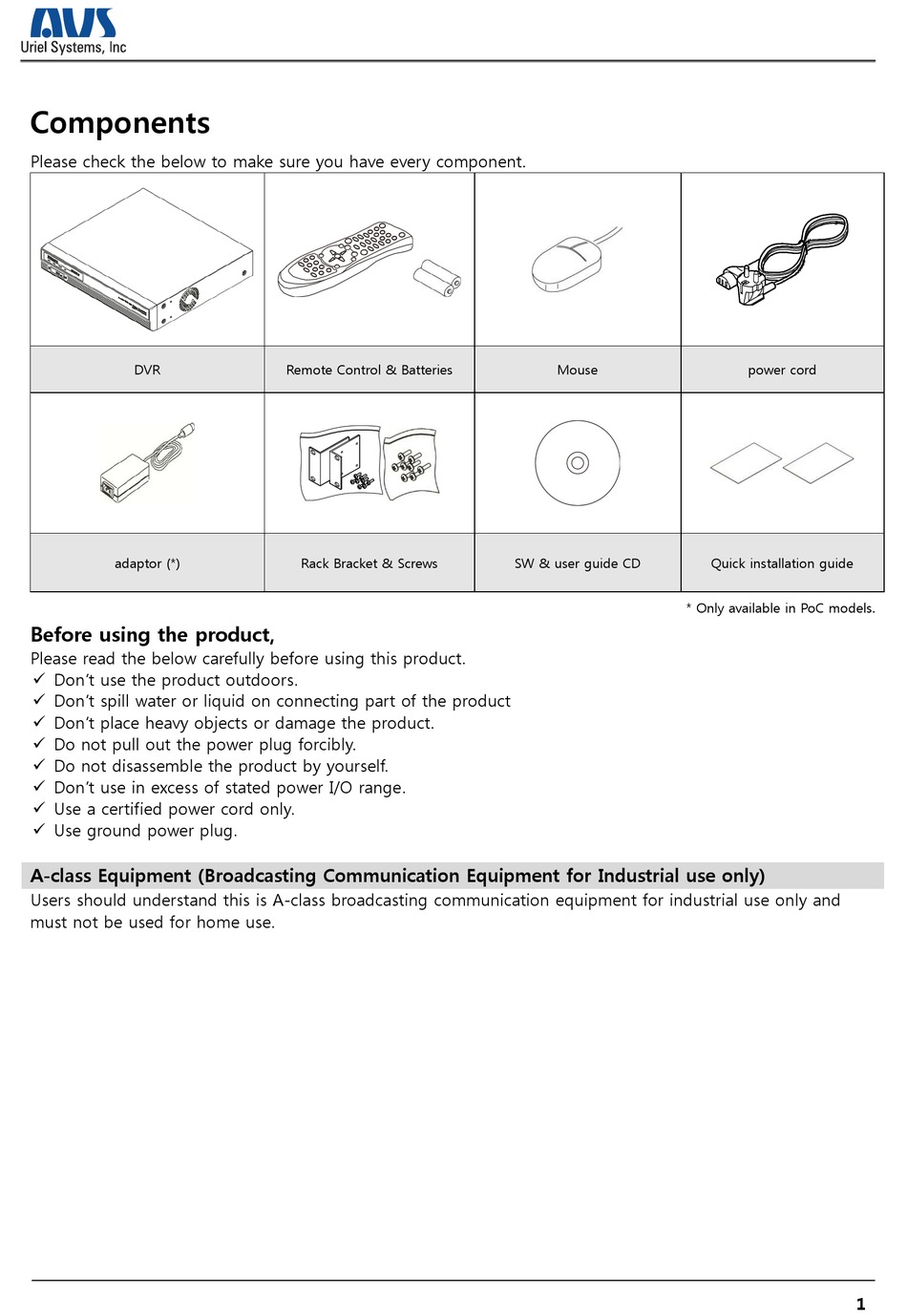

Components

Please check the below to make sure you have every component.
DVR
adaptor (*)

Before using the product,

Please read the below carefully before using this product.
 Don't use the product outdoors.
 Don't spill water or liquid on connecting part of the product
 Don't place heavy objects or damage the product.
 Do not pull out the power plug forcibly.
 Do not disassemble the product by yourself.
 Don't use in excess of stated power I/O range.
 Use a certified power cord only.
 Use ground power plug.
A-class Equipment (Broadcasting Communication Equipment for Industrial use only)
Users should understand this is A-class broadcasting communication equipment for industrial use only and
must not be used for home use.
Remote Control & Batteries
Rack Bracket & Screws
Mouse
SW & user guide CD
* Only available in PoC models.
power cord
Quick installation guide
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HD1600F-PDR and is the answer not in the manual?

Questions and answers

Summary of Contents for AVS Uriel Systems HD1600F-PDR

  • Page 1: Before Using The Product

    Components Please check the below to make sure you have every component. Remote Control & Batteries Mouse power cord adaptor (*) Rack Bracket & Screws SW & user guide CD Quick installation guide * Only available in PoC models. Before using the product, Please read the below carefully before using this product.
  • Page 2 Connecting different components Connecting to a monitor Please check the monitor resolution before connecting to a monitor.  Using HDMI&VGA Port : 1920 x 1080p <Warning> Use of HDMI certified cable is recommended when connecting to a HDMI Monitor. Connecting to a camera Please connect 1080p, 720p, 960H or NTSC/PAL camera using the recommended cable PoC Camera If PoC cameras and PoC adaptor are connected to a DVR, DVR supplies necessary power to cameras through...

  • Page 3: Record Settings

    Record Settings Menu  Record  Record [Continuous Recording] [Manual Recording] [Scheduled Recording] Continuous Recording Continuous Recording will automatically start once DVR booting is complete and will continue to record/event record according to selected recording program. Manual Recording You can start/stop Manual recording at FUNC – TOOLS – MANUAL RECORDING, and DVR performs manual and event recording according to the selected program.

  • Page 4: Connecting To Network

    Connecting to Network Network Settings Menu  Network  Network Ethernet Choose network type to Ethernet, and enter IP address, Netmask, Gateway, DNS which were received from network administrator. xDSL(PPPoE) Choose network type to xDSL and move to xDSL menu. Enter ID and Password which were given by internet provider.
  • Page 5 P2P Cloud Users can easily connect DVRs through Mobile application, WebEye, and can perform monitoring. (1) Execute WebEye, click Add(+) button and select P2P tab. (2) Enter a Unit name and the UID. User can directly enter the UID from the UID sticker sticking on DVR cover.
  • Page 6 (7) WebViewer Installer will run once you successfully connect to a DVR. And you can view WebViewer login page once WebViewer Installation is complete. (8) Enter USER ID & PASSWORD to access to the live monitoring page. AVS Uriel systems Inc. VA office 13882 Park Center Rd Herndon, VA 20171...
