Summary of Contents for ATTIAS USA-60

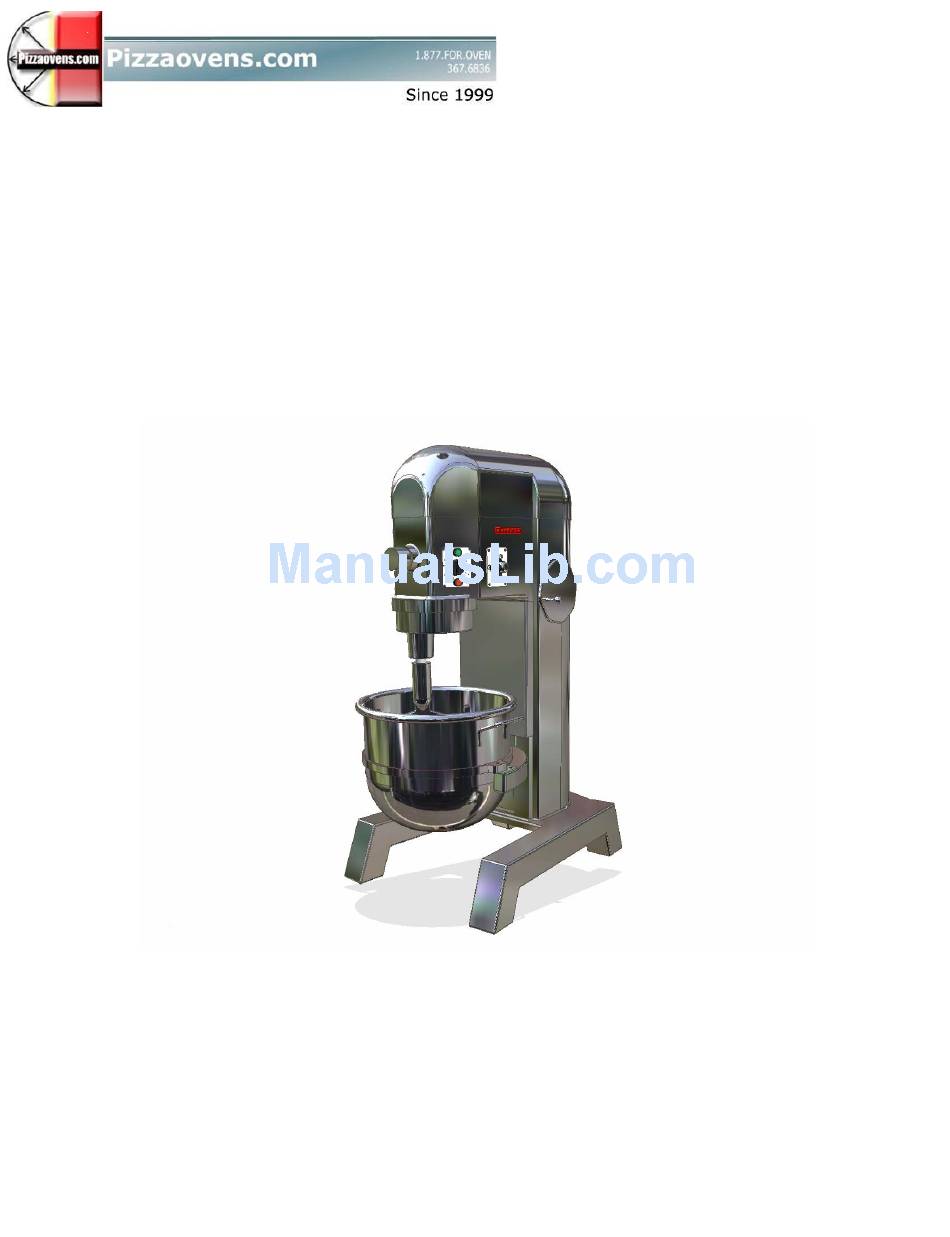

- Page 1 ATTIAS MANUFACTURERS OF ATTIAS DOUGH MIXERS COMMERCIAL DOUGH MIXERS INSTALLATION AND OPERATING INSTRUCTION MANUAL MODEL# USA-60 MODEL# USA-80...
-
Page 2: General Specifications

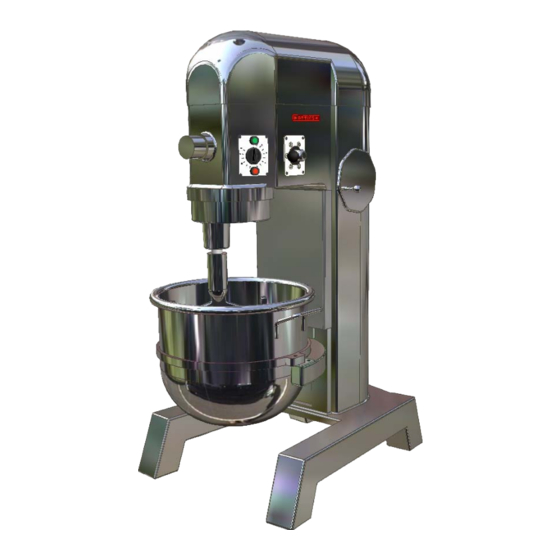

ATTIAS COMMERCIAL DOUGH MIXERS SAVE THESE INSTRUCTIONS GENERAL SPECIFICATIONS ATTIAS USA-60 model mixer is a heavy duty 60 quart mixer which features a 5 horsepower motor, a timer and a # 12 attachment hub, with the use of bowl adapters and special agitators. -
Page 3: Installation
15 days of delivery. Prior to installation, test your local electrical service to assure that it agrees with the specifications on the machine plate. Call Attias with any questions. LOCATION Place the mixer in its operating location. There should be adequate space around the mixer for the user to operate the controls and install and remove bowls. -
Page 4: Changing Speeds
CHANGING SPEEDS The GEAR SHIFT LEVER is used to change speed. Always stop mixer before changing speeds. To change speed, push the STOP button, move the gear shift lever to the desired speed, and restart the mixer by pushing START button. NOTE: If you do not stop the mixer to change speeds, it will automatically shut itself off and you will have to restart it after changing speeds. - Page 5 cleaning procedure should also be followed for bowls and agitators before whipping egg whites or whole eggs. Note: The bowl must be installed before the agitator. To install the bowl, fully lower the bowl support. Position the bowl so the alignment bracket on the back of the bowl is under the retainer on the bowl support and the alignment pins on the front of the bowl support fit in the holes in the bowl.
-
Page 6: Maintenance
Speed 1 (Low) – This speed is for heavy mixtures such as pizza dough, heavy batters, and potatoes. Speed 2 (Medium-Low) – This speed is for mixing cake batters, mashing potatoes, and developing bread dough. Speed 3 (Medium-High) – This speed is for incorporating air into light batches, as well ass finishing whipped items. -
Page 7: Agitator Clearance
Transmission Fill Plug and add a small amount of the recommended transmission oil until it returns to the proper level. DO NOT overfill the transmission as leakage may result. Contact you ATTIAS OVEN CORP. for the recommended transmission oil. Bowl Lift The slideways and lift screw should be lubricated approximately twice a year. - Page 8 The height of the bowl clamp is controlled by a spring washer and lock nut, which are located on the bottom of the bowl support. Turning the lock nut clockwise will loosen the clamp, counterclockwise will tighten it. If repeated adjustments are necessary, or additional service is indicated. Contact ATTIAS OVEN CORP. for more information.
-
Page 9: Troubleshooting
TROUBLESHOOTING SYMPTONS POSSIBLE CAUSE Mixer will not start. 1. Gear shift lever between gears (not fully engaged). 2. Circuit protector in open position – check fuse or disconnect switch. 3. Mixer or attachment overloaded. 4. Bowl not all the way up. 5. - Page 10 HOW TO CARE FOR THE ATTIAS 60-QUART AND 80-QUART MIXER BOWLS (DO’S AND DON’TS) 1) DO NOT use abrasive cleaning materials, such as Brillo pads or metal scrapers. The tin is soft and should be cleaned with a soft cloth.
