Summary of Contents for RED DEVIL XVL10

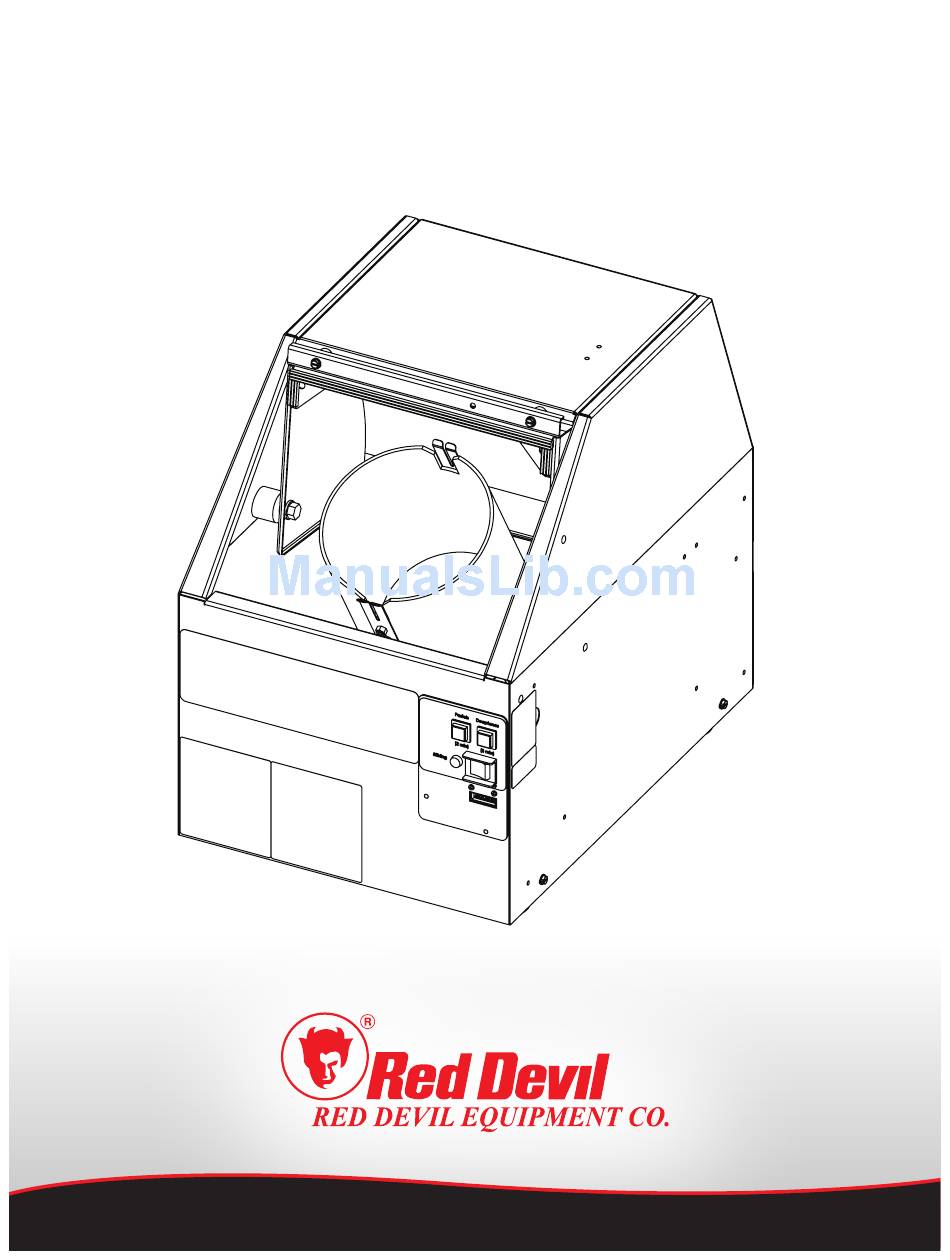

- Page 1 Owner’s Manual: XVL10 One-Gallon Vortex Mixer www.RedDevilEquipment.com (PHONE) 800-221-1083 | (INTL) +1-763-533-2969 | (FAX) 763-852-1811...
-
Page 2: Table Of Contents
1785871 Rev J ECO 15-0051 B December 2015 Owner’s Manual: XVL10 able of onTenTs 1. Safety Information 8. Exploded Views 1.1 Safety Precaution Labels 8.1 Frame Assembly 8.2 Enclosure Assembly 1.2 Safety Precaution Summary 8.3 Drive Assembly 2. Introduction 8.4 Rotating Assembly 2.1 Application... -
Page 3: Safety Information
1785871 Rev J ECO 15-0051 B December 2015 Owner’s Manual: XVL10 1. s afeTy nformaTIon Review this owner’s manual and read all warning labels on the machine prior to use. The three main safety notifications used in this manual and on the warning labels are WARNING, CAUTION and NOTICE. -
Page 4: Safety Precaution Labels
1785871 Rev J ECO 15-0051 B December 2015 Owner’s Manual: XVL10 ...Safety Information, continued 1.1 Safety Precaution Labels WARNING WARNING -Machine must be properly grounded before use; improper ground- -This machine is not explosion proof rated. ing could cause electric shock and injury. -
Page 5: Safety Precaution Summary
1785871 Rev J ECO 15-0051 B December 2015 Owner’s Manual: XVL10 ...Safety Information, continued 1.2 Safety Precaution Summary WARNING! DO NOT open the door until the machine comes to a complete stop. DO NOT attempt to replace any damaged electrical wire or components. Improper To avoid electric shock, don’t get the timer,... -
Page 6: Introduction
2.2 Specifications 2.1 Application Unit Size: W 15. in. (38.1 cm) D 21.75in. (55.2 cm) Congratulations on your purchase of the XVL10 H 21 in. (53.3 cm) one-gallon vortex mixer . This machine is designed to accommodate standard plastic or Machine Weight: 81 lbs. -
Page 7: Unpacking & Install
(see section 1.2, Safety Precaution Summary, for grounding information). NOTE: If the machine needs to be shipped any time, contact Red Devil to obtain the appropriate packaging kit, part no. 6784975. See section 9, Ordering, for ordering information. www.RedDevilEquipment.com (PHONE) 800-221-1083 | (INTL) +1-763-533-2969 | (FAX) 763-852-1811... -
Page 8: Operation
1785871 Rev J ECO 15-0051 B December 2015 Owner’s Manual: XVL10 4. o peraTIon 4.1 Control Panel - XVL10 • Operation Indicator (A): This light is illuminated during machine operation. • Power Switch (B): Turn the power off or •... -
Page 9: Install A Container
Figure 3 NOTE: If colorant has been added to the paint, be sure to reattach paint can lid tightly (using 5. C the RED DEVIL EQUIPMENT Lid Press, Part No. leanIng 0-5080). Select mix time by pressing a preset mix cycle Always unplug the power cord before push button (XVL10 models). -
Page 10: Troubleshooting
Motor thermal protector acti- Allow to cool, then restart vated Reset by pressing circuit breaker back Machine circuit breaker tripped Machine won’t run Contact Red Devil Equipment Co. Faulty Motor Customer Care Emergency E-STOP pushbutton Turn switch knob 1/4-turn clockwise to is activated... -
Page 11: Wiring Diagram
1785871 Rev J ECO 15-0051 B December 2015 Owner’s Manual: XVL10 7. W IrIng Iagram 6784557 CONTROL PANEL ASSEMBLY BLUE SWITCH GREEN SWITCH WIRE COLOR CODE: 5782585 5782584 BL = BLACK (120 SEC) (180 SEC) B = BLUE 5782479 B/W = BLACK W/WHITE STRIPE... -
Page 12: Exploded Views
1785871 Rev J ECO 15-0051 B December 2015 Owner’s Manual: XVL10 8. e xploded IeWs 8.1 Frame Assembly Id Description 9780193 Nut, Nylock 3_8-16 9780343 Nut 1_4-20 Nylon Lock 9780886 SCREW HEX 3_8-16 X 1.00 9781929 ISOLATOR, RUBBER - 5300... -
Page 13: Enclosure Assembly
19 9782681 BUMPER, DOOR - 5300 30 9787239 Enclosure Weldment - 1015 5784008 Counter, cycle 20 9783385 Screw, #10-32 SHWH Tap 31 9787242 PANEL, CONTROL - XVL10 PB 9102519 BUSHING,STR.RELIEF 21 9783503 LIMIT BRACKET 32 9787240 BACK PANEL 1015 10 9166300 GROMMET... -
Page 14: Drive Assembly
Description Description 5785917 MOTOR, 1_4 HP 56C, W_HARNESS 11 9782537 GEAR, BIG BEVEL, STATIONARY 6785869 ROTATING ARM ASBY - XVL10 12 9783838 Retaining Ring, .625 Shaft 6787044 BRG HSNG ASSY XVL 10, 12 13 9781960 Key, Square .187 x 1.00 9760514 Washer 1_4 SAE .281 ID... -
Page 15: Rotating Assembly
6785987 CAN HOLDER ASSY, XVL 10 9784698 SCREW, HEX 1_4-20 X .50 9760514 Washer 1_4 SAE .281 ID 10 9785853 ORBIT ARM - XVL10 9780343 Nut 1_4-20 Nylon Lock 11 9785907 SCREW, HEX CAP 1_4-20 X 2.75 9781896 CLAMP COLLAR, 0.625 ID... -
Page 16: Ordering
December 2015 Owner’s Manual: XVL10 9. o rderIng Replacement Parts HOW TO ORDER REPLACEMENT PARTS Replacement parts can be ordered from Red Devil Equipment Co. by telephone, fax, or email: RED DEVIL EQUIPMENT CO. 763-533-2969 800-221-1083 763-852-1811 (FAX) orders@reddevilequipment.com If you need help in determining the proper part(s) to order, please call Customer Care. at 1-800-221-1083. -
Page 17: Warranty
Model XVL10 Warranty Red Devil Equipment Co. warrants equipment manufactured by it and bearing its name to be free from defects in material and workmanship. Red Devil Equipment Co. will provide replacement parts caused by failure due to production or manufacturing error during the warranty period. -
Page 18: Notes
1785871 Rev J ECO 15-0051 B December 2015 Owner’s Manual: XVL10 oTes www.RedDevilEquipment.com (PHONE) 800-221-1083 | (INTL) +1-763-533-2969 | (FAX) 763-852-1811... - Page 19 1785871 Rev J ECO 15-0051 B December 2015 Owner’s Manual: XVL10 www.RedDevilEquipment.com (PHONE) 800-221-1083 | (INTL) +1-763-533-2969 | (FAX) 763-852-1811...
- Page 20 14900 21st Ave N Plymouth, MN 55447 U.S. Telephone: 800.221.1083 International Telephone: +1.763.533.2969 Fax: 763.852.1811 E-mail: info@reddevilequipment.com For instructional “How To” videos please visit our youtube channel or go to www.RedDevilEquipment.com Copyright 2014 Red Devil Equipment Company. All rights reserved.
