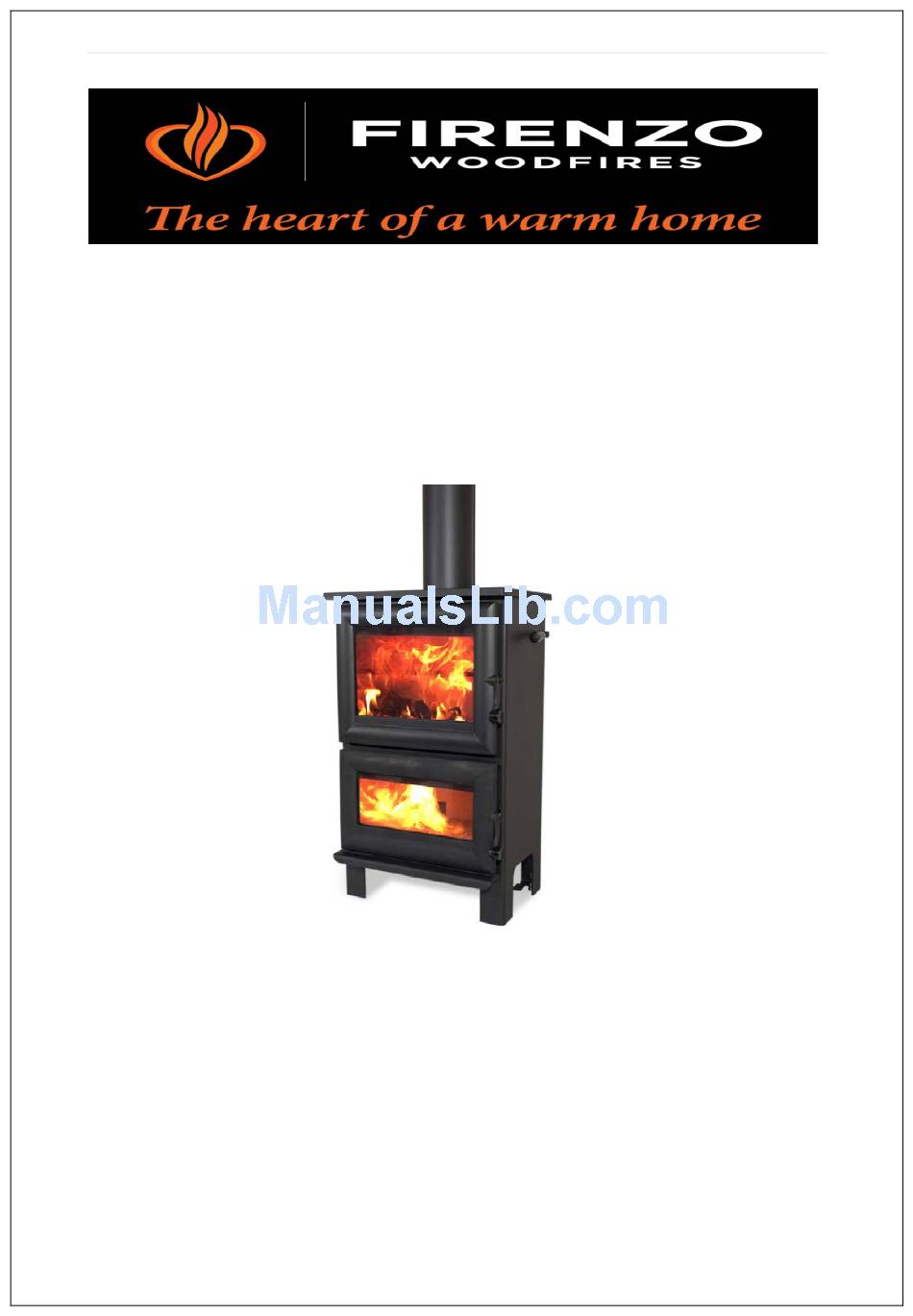

INSTALLATION AND OPERATION INSTRUCTIONS

for the

Fusion Boiler

Firenzo have been making stoves of the highest quality for over 35 years in New Zealand.

Leaders in manufacturing stoves with ultra-low emissions and superb efficiency, Firenzo are

ranked as one of the most respected brands in New Zealand.

By carefully following these instructions, we are certain that you will enjoy many years of

safe, comfortable warmth from your new Firenzo stove.

Version 29/8/16

Table of Contents

Need help?

Do you have a question about the Fusion and is the answer not in the manual?

Questions and answers

Summary of Contents for Firenzo Fusion

Page 1 Fusion Boiler Firenzo have been making stoves of the highest quality for over 35 years in New Zealand. Leaders in manufacturing stoves with ultra-low emissions and superb efficiency, Firenzo are ranked as one of the most respected brands in New Zealand.
Page 2: Installation Responsibilities
• This appliance must be installed by someone competent to do so, Firenzo recommend the use of a NZ Home Heating Association, solid fuel appliance installation technician (SFAIT), or other suitably qualified person.
Page 3: Floor Protector Requirements
P a g e 3. Floor Protector Requirements AS/NZ2918 Section 3.3 states that if the heater is to be placed on or within 500mm of heat sensitive materials in the floor, then a floor protector will be required. This floor protector shall extend under the heater and not less than 300mm beyond the front of the fuel loading or ash removal openings.
Page 4 150 450 350 200 350 395 720 428 940 930 1170 970 535 460 Please note:_ All Clearances shown are from the steel body of the Fusion unless specified. Dimension ‘A’ is shown from the rear heat shield to the rear wall, and dimension ‘B’ is from the side of the top cast plate to the side wall.
Page 5: Installation Procedure
A flue sealing shim is provided to help seal the flue system to the flue spigot outlet if required. See flue installation section 6 for flue specifications. Install the special Firenzo double flue shield to the flue system above the appliance following the instructions supplied.
Page 6 If an alternative flue system is chosen, it must be tested to AS/NZ 2918:2001 appendice F and the manufacturer’s specifications for the installation of the flue system must be adhered to. It however must have an extended ceiling plate to 460 x 460mm and the special Firenzo double flue shield must be used.
Page 7 P a g e Version 29/8/16...
Page 8: User Responsibilities
8. Operating Instructions and air purifiers that may contain flammable substances. Your Firenzo Fusion utilises gasification combustion technology, so runs quite differently to a conventional wood stove. You must operate your stove strictly in accordance with these instructions, this will enable you to achieve efficient use of your fuel and get maximum heat output.
Page 9: Initial Lighting
P a g e Unlike a conventional wood stove it has a fixed air supply, so when loaded and running it only requires to be refuelled to maintain its heat output level. The control on the right hand side is only to be used to direct the flue draft operation for initial lighting until the appliance and flue has warmed sufficiently to run in normal operation mode and then used again to enable refuelling as required.
Page 10 P a g e | 10 Partially close the upper chamber door leaving it ajar slightly to enable quick ignition of the • kindling and leave until the kindling has well established flames and is starting to create some embers. •...
Page 11: Refuelling After Extended Burn Time
Cleaning of Ashes from the Fireboxes The gasification combustion process of the Firenzo Fusion means that a vast majority of the ashes and charcoals normally left after the fire has extinguished will now be consumed so will require much less emptying than a conventional wood burner.
Page 12: Routine Stove Maintenance
Firenzo recommend this be done at least every 3 months of operation. If heavily sooted you may need to lift the flue and top casting to gain access.
Page 13: Warranty Details
13mm and does not have rope along the top of the door .The bottom door uses 13mm rope but has 8mm along the top. Firenzo door rope can only be used Internal Discolouration.
Page 14 P a g e | 14 2. The warranty periods commence on the original date of sale of the relevant Firenzo wood fire to a consumer (please see paragraphs 5 and 8). 3. The warranties are given in respect of any defects in the specified Firenzo component parts and materials and Firenzo workmanship that render the component parts and materials unfit for normal domestic use.
Page 15 12. The warranty claimant is responsible for paying any service call fees, transport charges and for any damages and loss incurred in transit to the Firenzo wood fire or its component parts and materials, to and from Firenzo or its designated accredited agent. Where Firenzo honours a warranty, as described in paragraph 13, it will reimburse the warranty claimant any transportation costs they have incurred.
Page 16 • a copy of this document is to be executed by Firenzo as a deed poll in favour and for the benefit of the New Zealand consumers described in it and to be kept for inspection purposes with Firenzo’s corporate records at its specified address.
Page 17 P a g e | 17 Contessa Coaster Encore Fusion Bronte Viking Insert Aqualux Athena Bay & Flush Forte Bay & Flush Kompact Athena Kompact Deco Kompact Diva Kompact Forte Kompact Plaza Kompact Serenity 98 Niven Street PO Box 3231...
