ZERO

User manual

Table of Contents

Need help?

Do you have a question about the ZERO and is the answer not in the manual?

Questions and answers

Summary of Contents for Avtek ZERO

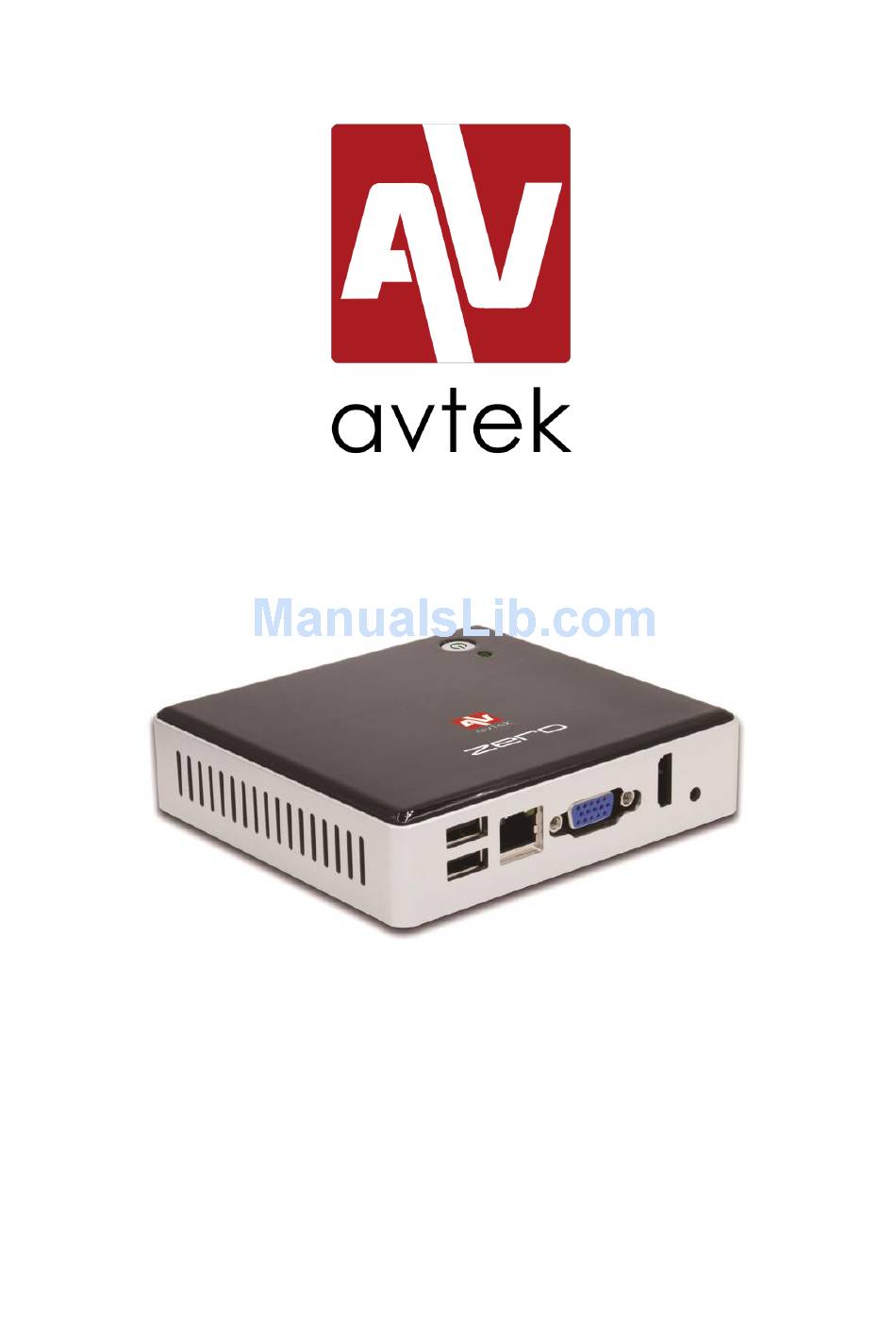

Page 1 ZERO User manual...
Page 2 Warnings Before working with the device, please read this instruction manual thoroughly and keep it for future reference. Placement • Do not place the device on an unstable substrates, stands, tables and shelves. • Do not expose to direct sunlight or other heat sources. •...
Page 3 Correct Disposal of This Product (Waste Electrical & Electronic Equipment) (Applicable in countries with separate collection systems). This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life.
Page 4: Table Of Contents
Table of contents Avtek ZERO technical specification ........................... 5 Connecting the Avtek ZERO.............................. 6 Mounting on VESA bracket............................6 Connecting Avtek ZERO..............................7 Server configuration ................................. 9 Minimum server specifications ............................. 9 Installation of the Microsoft Server 2016 operating system ..................9 Creating NIC Teaming.
Page 5: Avtek Zero Technical Specification
0dB (no moving parts generating noise) Operating conditions Temperature 0-40oC, humidity 10-90% (no condensation) Installation Dedicated bracket VESA 75mm x 75mm/100mm x 100mm Safety Kensington Lock In package Terminal Avtek ZERO, power supply, quick start guide, VESA bracket with screws Certificates CE, RoHS...
Page 6: Connecting The Avtek Zero
Mounting on VESA bracket. VESA bracket is included with Avtek ZERO package. The bracket allow to mount device on the back of monitor or ceiling/wall bracket. To mount the bracket use included screws. The bracket is compatible with VESA 75mm x 75mm...
Page 7: Connecting Avtek Zero
Connecting Avtek ZERO Avtek ZERO has built-in ports thats allow to connect required peripherials needed to basic work with device. Connect the device according to the instructions below: 1 – USB ports for keyboard and mouse, 2 – LAN Network RJ45 connector, 3 –...
Page 8 4. Input peripherials such as keyboard and mouse (USB connectors no. 1 or 10). The Avtek ZERO terminal use built-in DHCP client to discover IP address from DHCP server working in LAN network. The Avtek ZERO automatically discover native resolution of LCD screen or other display device connected to the...
Page 9: Server Configuration
Server configuration Minimum server specifications It is recommended that terminal services server meets minimal hardware requirements depending on user quantity. It is suggested to provide at least a half of CPU thread and 1GB RAM per user. It i salso suggested to configure server storage using RAID matrix and dual port network card.
Page 10 After booting please select language, time and currency preferences and keyboard layout. Than press „Next”. To start installation press „Install now”.
Page 11 Please select Windows Server Standard with Desktop Experience. Next, please accept license terms.
Page 12 Next please select installation type. In most cases please choose „Custom: Install Windows only (advanced)” option. Next step is to create partitions according to your requirements. Pressing the „Next” buton will start installation process.
Page 13 After file copying and installing process, the server will reboot. After reboot please set up Administrator password.
Page 14: Creating Nic Teaming
Creating NIC Teaming. In cases that server has multiple network interface cards, you can create NIC Team, what increase network connections performance and stability. If server has only one network interface card please go to next step. To create NIC Teaming please run „Server Manager”, then choose „Local server” page and „NIC Teaming: Disabled” option.
Page 15 After opening the NIC Teaming window select „Tasks” button in „Teams” window part and next choose „New Team” option. It is needed to set up team name and choose interfaces that will be included in team. The additional team configuration in most cases will be simillar as on the image below. In case of advanced configuration please refer website https://technet.microsoft.com/en-us/windows-server-docs/networking/technologies/nic-teaming/create-a- new-nic-team...
Page 16 After creating the team please check that interfaces works properly. It is recommended to set up static IP address to NIC Team interface.
Page 17: Multipoint Services Installation On Windows Server 2016
MultiPoint Services installation on Windows Server 2016. Log in on Administrator account using set up password. Run „Server Manager” and then select „Manage”/”Add roles and features”...
Page 18 After checkicng the recommendations go to the next page of installer clicking „Next”. Next select „Remote Desktop Services Installation” option.
Page 19 Next please select „MultiPoint Services” option and click „Next”. Next please select server where you want to deploy MultiPoint service.
Page 20 To end deployment check the „Restart the destination server autoamtically if required” option and confirm clicking „Deplyoy” button. After installation process, the server will reboot automatically.
Page 21 In some cases after reboot you will see a configuration error screen caused by invalid video card driver installer on the system. To solve the problem press any key to close message, log on using Administrator account and install proper video card driver.
Page 22: Creating User Accounts
Creating user accounts It is required to create new user accounts for users working on Avtek ZERO clients. To create those accounts run „MultiPoint Manager” and go to the „Users” page. Next, select the „Add user account” option. It is required to set up user name, full name (optional) and user password.
Page 23 Select type of new user account. For users with restricted rights select „Standard user”, for users with Administrator rights select „MultiPoint Dahsboard user” or „Administrative user”. Finally, we receive confirmation of creating new user account.
Page 24: Avtek Zero Configuration
Avtek ZERO configuration Terminal assignment to server To assign Avtek ZERO to the server it is needed to install MultiPoint add-on and zero-client video driver. Download the newest version of drivers from www.vidis.pl website (filename „Avtek_ZERO_Drivers.zip”). Unpack the „Avtek_ZERO_Drivers.zip” file. The archive contains two files that must be installed. Next, please reboot...
Page 25 After restarting the server, run „MultiPoint Manager” and go to the „Network Stations” page. In „Clients” table will appear available Avtek ZERO terminals. Select zero-clients that you want to assign to the server and then select the „Assign to this server” option.
