Related Manuals for LifeProof AQUAPHONICS AQ9
Summary of Contents for LifeProof AQUAPHONICS AQ9
- Page 1 User Guide...
- Page 2 SECTION 1 SPEAKER ANATOMY...

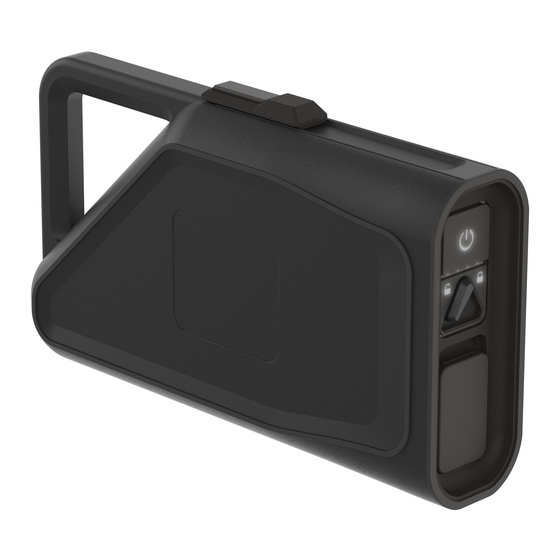

- Page 3 AQ9 ANATOMY Power Button Long press to turn on and off Short press to check battery level Lock Switch Flip to lock and unlock all buttons 3.5 mm Auxiliary Audio Jack Stream by wire Charge Port Plug in and charge up...
- Page 4 AQ9 ANATOMY Forward Make and take calls hands free Advance to the next track Pair Volume Down Connect to Bluetooth devices Hush your music Play Volume Up Press to get the party started Amplify your music Press to take calls...
- Page 5 AQ9 ANATOMY Carabiner Attach speaker almost anywhere...
- Page 6 Press the Power button until you hear chimes AQ9 automatically goes into pairing mode, and the Pair LED blinks Go to your device’s Bluetooth settings, pick LIFEPROOF AQ9 and follow the manufacturer’s pairing instructions When you connect, AQ9 chimes and the Pair LED slowly pulses...
- Page 7 SECTION 3 CARABINER...
- Page 8 AQ9 CARABINER Slide latch down to release carabiner arm Loop it through the mounting spot Swing carabiner arm back into place until you hear a click To disconnect AQ9 slide latch down, unloop and swing carabiner arm into place until you hear a click...
- Page 9 SECTION 4 LOCK SWITCH...
- Page 10 LOCKING AQ9 Once you have your settings dialed in, you can lock them down with the Lock Switch Flip the Lock Switch to the Locked icon to shut down button functions Flip it to the Unlocked icon to bring function back If a call comes through while Locked, flip to Unlocked to answer...
- Page 11 SECTION 5 CHARGING...
- Page 12 CHARGING AQ9 Use the included micro-USB cable to charge AQ9 (indoors only) Connect the USB cable to AQ9 first, then plug into a USB power source Most USB power sources will work, but we recommend 5V, 2A The Power Level LEDs light up to show the charging progress — each illuminated LED represents approximately 25% of capacity Disconnect the micro-USB cable when AQ9 reaches 100% charge To check the power level, short press the Power button and count the illuminated LEDs...
- Page 13 SECTION 6 HANDS-FREE CALLING...
- Page 14 HANDS-FREE CALLS When you’re connected to AQ9, you can take calls through the speaker As the call comes in, the music stops and AQ9 turns into a speakerphone Press Play to answer Talk towards the mic for optimal sound clarity When the call ends, press Play to hang up —...
- Page 15 SECTION 7 AUX JACK...
- Page 16 3.5 MM AUXILIARY AUDIO JACK AQ9 has a 3.5 mm Auxiliary Audio Jack to stream by wire Connect the cable to the audio source first, then plug into the 3.5 mm Auxiliary Audio Jack AQ9 automatically switches to play from the audio source Disconnect the cable to switch back to Bluetooth streaming...
- Page 17 SECTION 8 LIFEACTÍV ACCESSORIES...
- Page 18 AQ9 + LIFEACTÍV QUICKMOUNT ACCESSORIES Use your speaker in new ways and places with LIFEACTÍV QuickMount accessories (sold separately) Adhere a QuickMount Adaptor (included with accessories) to the square-shaped depression on the back of AQ9 Connect AQ9 with a click and remove with a simple twist Works with: Armband with QuickMount Belt Clip with QuickMount...
- Page 19 SECTION 9 CARE...
- Page 20 CARING FOR YOUR AQ9 Wipe with a dry cloth if it gets dirty Rinse with fresh water after exposure to soap, chlorine or seawater Do not use solvents, chemicals, cleaning solutions, alcohol, ammonia or abrasives...
- Page 21 SECTION 10 WARNING...
- Page 22 SAFETY INSTRUCTIONS Read, heed and refer back to these instructions and warnings Use in accordance with LifeProof instructions Do not store your speaker in extremely cold or hot places Only use attachments/accessories specified by LifeProof Unplug your speaker during lightning storms or when unused for long periods of time...
- Page 23 Battery: Do not leave a battery on prolonged charge when not in use. The battery provided with your speaker is not user serviceable. Contact LifeProof Customer Service for all battery related issues. Charging: The charger provided is designed for indoor use only. Charge your speaker with the micro- USB cable.
- Page 24 SECTION 11 SUPPORT...
- Page 25 AQ9 SUPPORT Visit www.lifeproof.com/speakers for support Life Support: If the LifeProof product was purchased from a retailer or other reseller of LifeProof product, you should first contact that retailer/reseller to ask about their return policy. If you are within the return policy of your retailer/reseller, you should return your LifeProof product to them.
- Page 26 SECTION 12 WARRANTY...
- Page 27 All LifeProof products are backed by a limited warranty. Product warranty only covers the LifeProof product – it does not cover any non-LifeProof product or device. Otter Products, LLC together with its affiliated entities worldwide is the company responsible for providing this warranty coverage. Visit...
- Page 28 SECTION 13 REGULATIONS...
- Page 29 REGULATIONS FCC Statement: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
- Page 30 Maximum output power LPSAN-0006-A AQ10: 0.83 mW Maximum output power LPSAN-0007-A AQ11: 0.96 mW CE Mark: Please refer to www.lifeproof.com/speakers for a European Declaration of Conformity showing the product standards that this product is in compliance with and why Otter Products, LLC is able to place the CE mark on this product.
- Page 31 Please contact your local authority for further details of your nearest designated collection point. California Energy Commission compliant. Please refer to www.lifeproof.com/speakers for additional regulatory information. Regulatory Model Number (RMN): LPSAN-0005-A.
- Page 32 SECTION 14 LEGAL...
- Page 33 LEGAL NOTICES Though all LifeProof products are tested to meet stated claims, your device can still be damaged. It is your responsibility to take reasonable precautions regarding how you use your device. Expose your device to hazards at your own risk. The LifeProof product warranty only covers the LifeProof product —...
