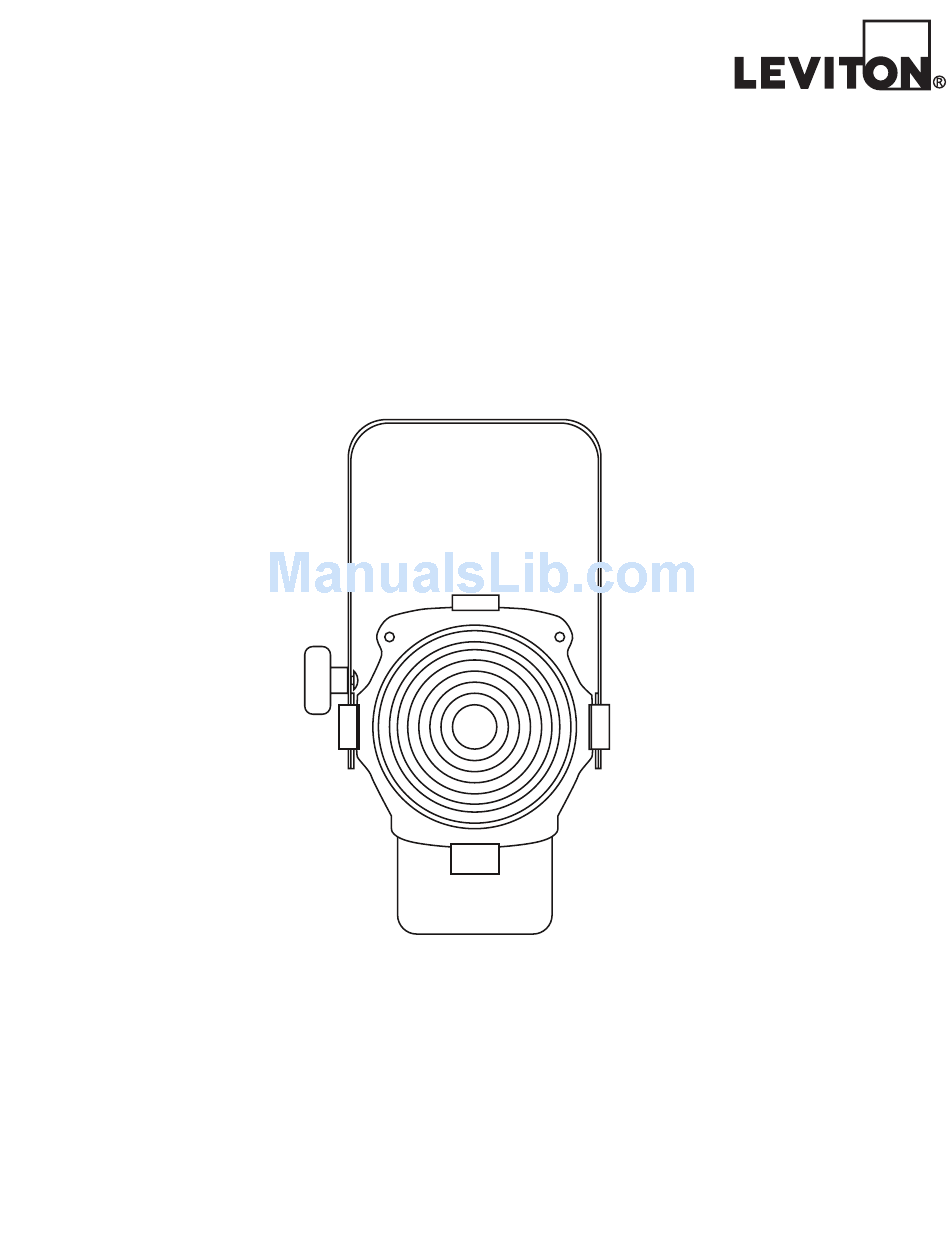

- Page 1 LEO™ LEO™ LED Fresnel Cat. No. LFD10 User’s Guide © 2015 Leviton Mfg. Co., Inc. DI-000-LFD10-05A...
-
Page 3: Warnings And Cautions
WARNING: TO AVOID DEATH, SERIOUS PERSONAL INJURY OR PROPERTY DAMAGE: • Do not open the housing or attempt any repairs. In the unlikely event the unit may require service please contact Leviton Technical Support. Opening the housing or attempting to repair product will void the warranty. -
Page 4: Getting Started
Power cords with alternate connectors, and powerCON extension cables are available. Please contact Leviton and review product data sheets for details. Important: Unpack the product and check the box to make sure all the parts are in the package and are in good condition. -
Page 5: Product Introduction
PRODUCT INTRODUCTION LEO™ LED Fresnel is a high-performance Fresnel-style LED lighting fixture that delivers a beautiful flat even field of light in a choice of color temperatures (3200K and 5600K) with high color rendering index (CRI 90+). The fixture is fully dimmable from 0% to 100% and can be controlled manually or via DMX ®... -
Page 6: Replace Fuse
• This product contains no user-serviceable parts. Do not open the housing or attempt any repairs, doing so will void the manufactures warranty. In the unlikely event the unit may require service please contact Leviton technical support. • Do not operate this product if you see damage on the housing, lenses, or cables. -
Page 7: Connect Power
LEO™ LED Fresnel comes with a power lead terminated with a powerCON A connector on one side, and a PBG NEMA 5-15P connector on the other side. Other connector options are available from Leviton or may be installed by your contractor. In addition, the fixture is designed for "Feed-Thru" operation using single power source connection at the first fixture, then, using powerCON... -
Page 8: Fixture Angle Adjustment
MOUNT FIXTURE CAUTION: Always mount this product in a safe position with adequate ventilation and away from a heat source, at least 20" (50 cm) from adjacent surface, and no flammable materials close by the product while it is operating, at least 8" (20 cm) from adjacent surfaces. Always connect the provided Safety Cable to the fixture and a suitable anchor. -
Page 9: Accessory Slots
ACCESSORIES LEO™ LED Fresnel can accommodate many different accessories. Cat. No. Description Part Number Safety Cable (included) TA0SC-000 LFD10 8 Leaf Barn Door 7.5" x 7.5" (190 x 190mm) LFD10-BDB LFD10 Metal Color Frame 7.5" x 7.5" (190 x 190mm) (included) LFD10-CFB LFD10 Safety Guard 7.5"... -
Page 10: Control Interface
OPERATION CAUTION: Do not touch this product’s housing during operation because it may be very hot if overheated. The maximum ambient temperature is 95˚F (35˚C). Do not operate this product at a higher temperature. Do not cover the ventilation holes when operating to avoid internal overheating. Avoid direct eye exposure to the light source while the product is on. - Page 11 STATUS INDICATION LAMPS PWR (Power) Light up when power is applied to the unit. SYS (System) Indicates the status of the fixture: No lights when working properly, Flashes when the fixture light source detects overheating. SIG (Signal) Light up when proper DMX signal is received, Flashes when receiving wrong signals, No lights when no signal is received.
- Page 12 CONTROLLING COOLING FAN SPEED The highest cooling fan speed can be remotely or locally controlled. The LFD10 is defaulted so that the fan will start to operate in slowest speed when LED temperature is detected at 95°F (35°C) or above to maintain the lowest fan noise.
- Page 13 NUMBERS & CHARACTERS DISPLAYED A,B,C,D,E,F NUMBER 0-9 H,L,N,O,P,Q,R,S,T,U Note: The corresponding display number "5" and character "S" appear the same, please note the difference. CONTROL ATTRIBUTES AND DEFAULT DISPLAYS AND SETTINGS The LEO™ LED Fresnel fixtures have several different control attributes. With the exception of the dimming attribute which must be assigned a DMX value for remote control, all other attributes may be manually set only at the fixtures, or, remote controlled from your DMX console.
-
Page 14: Default Settings
DEFAULT SETTINGS Menu Items Default Value Default Options Level Remarks Display Range Value DMX Value Built-in effects 0-20 Normal dimming 21-40 Flash effect 1 – super fast 41-70 Flash effect 2 – fast 71-100 Flash effect 3 – medium 101-130 Flash effect 4 –... -
Page 15: Maintenance
MAINTENANCE To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it. EXPECTED LED LIFESPAN LEDs gradually decline in brightness over time, mostly because of heat. Packaged in clusters, LEDs exhibit higher operating temperatures than in ideal, single-LED conditions. -
Page 16: Trademark Disclaimer
F.O.B. factory. Leviton is not responsible for removing or replacing equipment on the job site, and will not honor charges for such work. Leviton will not be responsible for any loss of use time or subsequent damages should any of the equipment fail during the warranty period, but agrees only to repair or replace defective equipment returned to its plant in Tualatin, Oregon. - Page 17 NOTES __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________...
- Page 18 NOTES __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________...
- Page 20 Information and specifications are subject to change without notice. DISCARD ANY OLDER VERSIONS OF THIS USER’S GUIDE AND REPLACE WITH THIS VERSION. Visit Leviton’s Web site at http://www.leviton.com © 2015 Leviton Manufacturing Co., Inc. All Rights Reserved © 2015 Leviton Mfg. Co., Inc. DI-000-LFD10-05A...
- Page 21 COMMENTS : The information in this document is the exclusive PROPRIETARY property of LEVITON MANUFACTURING COMPANY, INC. It is disclosed with the understanding that acceptance or review by the recipient constitues an undertaking by the recipient. (1) to hold this information in strict confidence, and (2) not to disclose, duplicate, copy, modify or use the information for any purpose other than that for which disclosed.
