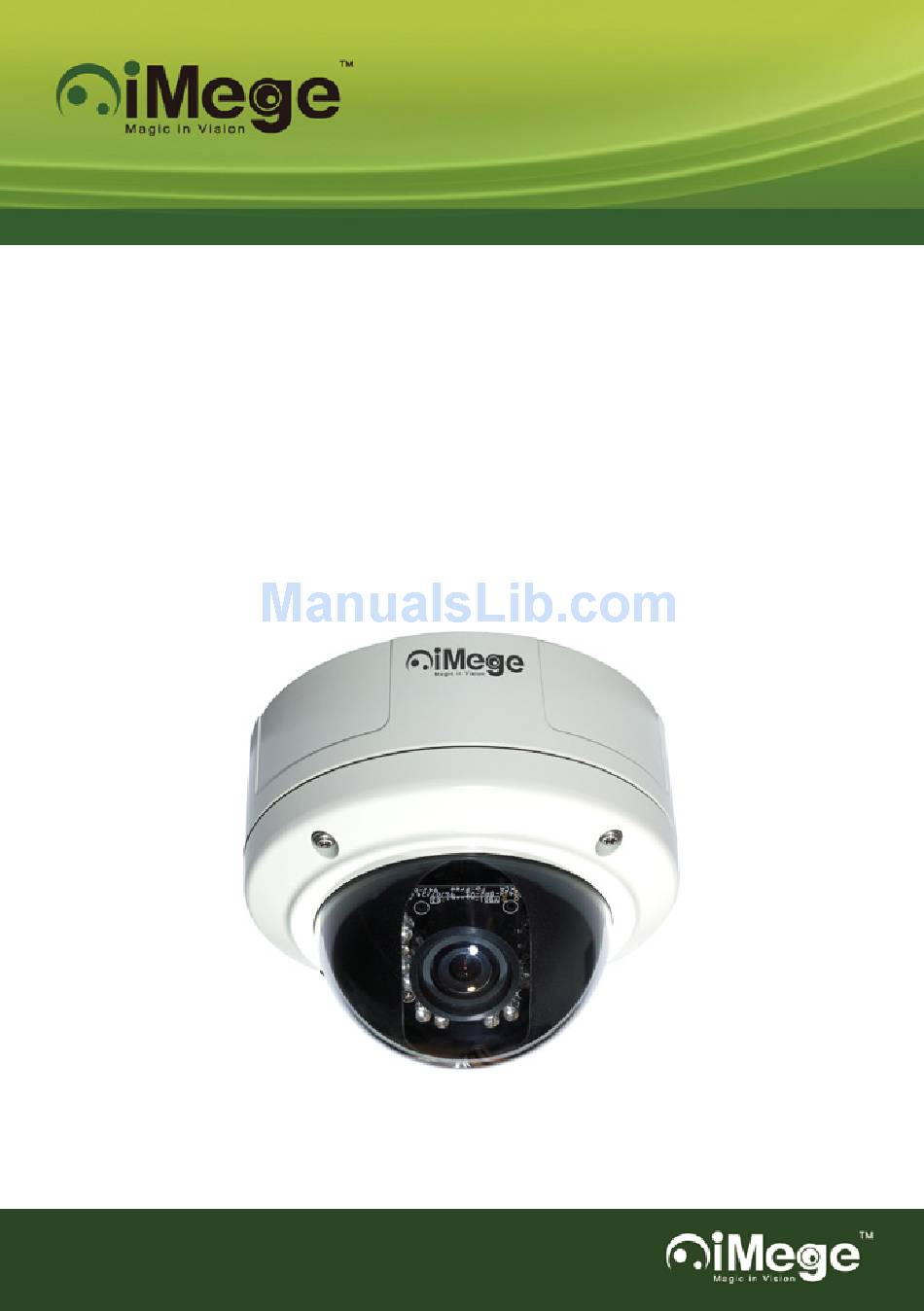

Page 1: Quick Installation Guide
Quick Installation Guide V2211(E/H/R/P) Ver: v1.10c... -
Page 2: Package Contents
Warranty Card Hardware Pack Limited Hardware Warranty Ingrasys Technology Inc. warrants that iMege product from its authorized distributor will meet the applicable product specifications and be free from all defects in material and workmanship for a pre-defined period from the date of original purchase. -
Page 3: Mounting Camera
V2211E/H/R/P Quick Installation Guide Ver: v1.10c Connections Connect the camera to a network switch / hub with an Ethernet cable. Connect the power jack to the camera, and connect the adapter to a power outlet. For the use of PoE, just connect the camera to a PoE switch with an Ethernet cable; no need to connect the power adapter to the camera. - Page 4 V2211E/H/R/P Quick Installation Guide Ver: v1.10c Ceiling Mount Alignment Sticker on the ceiling and drill holes. Route the Ethernet cable through the hole and fasten camera on the surface with 4 screws. Wall Mount Alignment Sticker on drill holes. Route the Ethernet cable through the hole and fasten camera on the surface with 4 screws.
-
Page 5: Assigning Ip Address
V2211E/H/R/P Quick Installation Guide Ver: v1.10c Assigning IP address Launch iMege Discovery Tool (iMegeDiscover.exe). The tool will start searching and then displaying the cameras on the Device List after they are found. Check the box to select a camera device from the list. -
Page 6: Accessing The Camera
Ver: v1.10c Accessing the camera Launch IE browser and input the IP address of the camera, or click on “Browse” button on iMege Discovery Tool. The web page with video will then be presented as below. The live video of the camera can be played with a RTSP player, such as VLC or QuickTime. The... - Page 7 V2211E/H/R/P Quick Installation Guide Ver: v1.10c Tuning Camera Focus The V2211 series cameras are bundled with a vari-focal lens. Adjust the Zoom range, T ↔ W for a proper view angle and adjust the focus controller in the range of N ↔ ∞ shown on the lens.
- Page 8 ww w. i-Mege.com Ingrasys Technology Inc.
