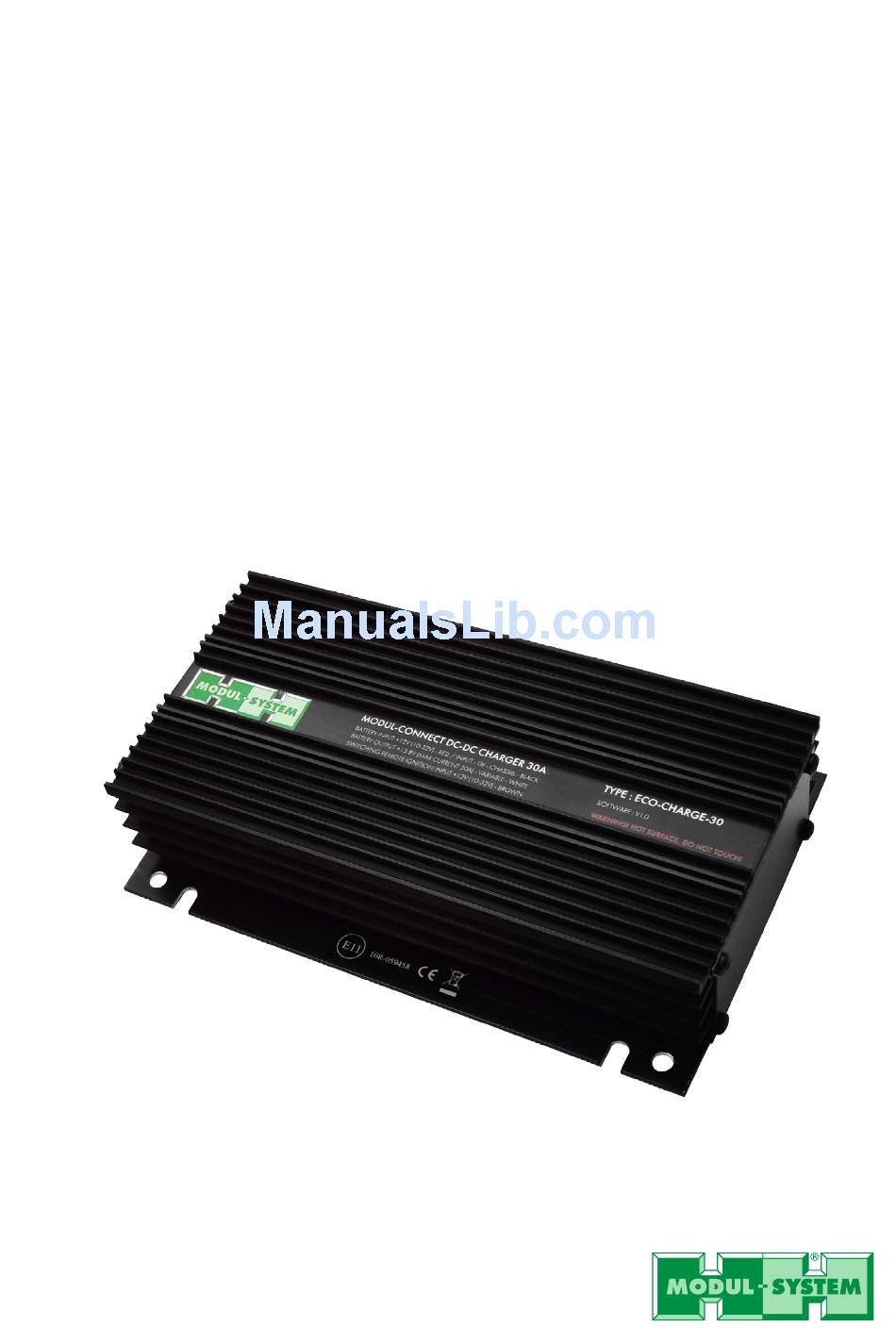

BATTERY CHARGER DC-DC 30A
Document Part Number
MSDCDC Rev 1 (03/17)
Service Contact Information
E-mail:
info@modul-system.com
Phone:
+46 31 746 87 00
Web:
www.modul-system.com
Modul-Connect
Owner's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DC-DC 30A and is the answer not in the manual?

Questions and answers

Summary of Contents for Modul-Connect DC-DC 30A

  • Page 1 Modul-Connect BATTERY CHARGER DC-DC 30A Owner’s Manual Document Part Number MSDCDC Rev 1 (03/17) Service Contact Information E-mail: info@modul-system.com Phone: +46 31 746 87 00 Web: www.modul-system.com...
  • Page 2: Table Of Contents

    7. Techical specification....................14 8. Warranty........................15 For safe and optimum performance, Modul-Connect Battery Charger DC-DC 30A must be used properly. Carefully read and follow all instructions and guidelines in this manual, and give special attention to the CAUTION and WARNING statements.
  • Page 3: Introduction

    1. INTRODUCTION WARNING: FAILURE TO FOLLOW Thank you for purchasing the Modul- THESE INSTRUCTIONS CAN RESULT Connect Battery Charger DC-DC 30A. IN DEATH OR SERIOUS INJURY This battery charger unit allows you to charge an auxiliary battery from a vehicle starter battery.
  • Page 4 • Keep the battery charger away cracking the case, and spray out from moist or damp areas. battery acid. • DO NOT modify the charging Avoid dropping any metal tool or object system circuitry without written on the battery. Doing so could create a confirmation from Modul-System.
  • Page 5: Product Description

    • DO NOT use the Modul-Connect However, there is no guarantee that Battery Charger DC-DC 30A in interference will not occur in a particular the vicinity of flammable fumes or installation. If this equipment does cause...
  • Page 6: Installation

    • The Modul-Connect Battery the applicable electrical safety wiring Charger should be used or stored regulations and installation codes. in an indoor area, away from...
  • Page 7 Material to prepare for installation DC Input, Output and ignition positive • The use of an AGM battery is highly recommended for the second cables: auxiliary battery. • Use of low resistance wire is • For battery size, you need to identify required for all the DC connections how much you will be using them between the battery charger and...
  • Page 8 Remove all fuses from the fuse holders. Modul-Connect Battery Charger Connect the auxiliary battery Installation: positive cable (white) to the charger output via a 40A fuse holder.
  • Page 9 The Modul-Connect Battery Charger DC-DC 30A is supplied with 3 options of The mini blade ‘ignition jumper’ has to be connection: inserted into the fuse box in the correct orientation.
  • Page 10 Example: 1. Identify ignition (+) fuse circuit i.e. radio. DO NOT 3. Place selected fuse in lower jumper terminal. Place connect to any primary vehicle safety systems. 2A fuse, which supplies the ignition feed to the DC-DC charger, in top terminal. Be mindful of orientation. 2.
  • Page 11: Unit Operation

    4. UNIT OPERATION • The Modul-Connect Battery • The charger is protected against Charger DC-DC 30A operates with overheating and resumes normal an input voltage between 9-32V. operation when it cools down. • The battery charger is turned on •...
  • Page 12 4.1. UNDERSTANDING THE ERROR CODE LED status colour Short flashes Long flashes Fault Force idle (check connection and fuses to starter battery and auxiliary battery) Starter battery voltage below 9 volts (<9V) Starter battery voltage over 36 volts (<36V) Starter battery voltage over 33 volts (<33V) Internal charge controller temperature MT over 70°C...
  • Page 13: Accessories

    • Remove the front plate of the charging voltage with respect to battery Modul-Connect Battery Charger temperature. DC-DC 30A and plug into the 3-way connector inside. The Remote voltage monitoring and • Route the cable out of the battery temperature probe further optimises charger.
  • Page 14: Techical Specification

    7. TECHNICAL SPECIFICATION PERFORMANCE DC input voltage operating range 9-32 Vdc DC output voltage operating range 0-14.1 Vdc Maximum DC output Boost charge 14.1 Vdc Float charge 13.8 Vdc SAFETY AND ENVIRONMENTAL Conformance CE EMC & LVD EN61204-3:2000 EN61000-4-2:2009 EN61000-4-3:2009 + A1:2008 + A2:2010 EN61000-4-5:2014 EN61000-4-6:2014 CISPR16-2-3:2006...
  • Page 15: Warranty

    8. WARRANTY TWO YEAR LIMITED WARRANTY LIMITATION: The limited warranty program is the only This warranty does not cover connected one that applies to this unit, and it sets accessories, such as adapters and forth all the responsibilities of Modul- batteries, damage or defects result from System.
