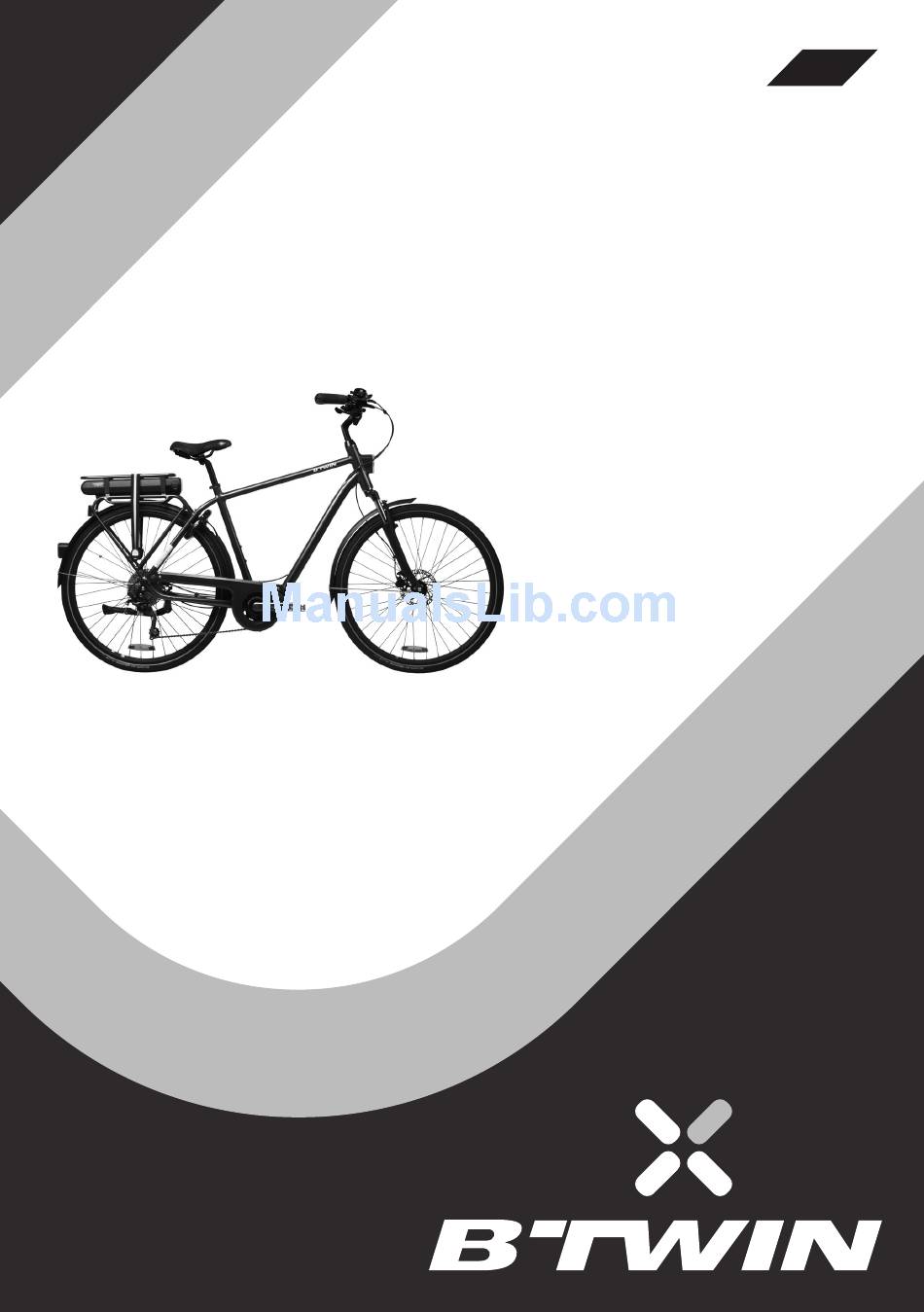

- Page 1 User manual Elops 940E...
- Page 2 Dear Customers, Thank you for purchasing a B’TWIN electrically-assisted bike. It will introduce you to the joys of travelling on 2 wheels for your leisure, it will be the most practical and economical way for you to get around in town and will allow you to burn calories to keep fit.
- Page 3 10 best practices for getting the most out of your electrically-assisted bicycle. 3,5 ─ 6 bar In order to improve battery life and efficiency, pump the tyres to You need to pedal to go further between 3.5 and 6 bar <...
-
Page 4: Table Of Contents
TABLE OF CONTENTS PRODUCT DESCRIPTION ........5 Electrically-assisted bike technical features ......5 General operation of the electrical assistance ....5 SCREEN AND CONTROL ELEMENTS ....6 Screen data and function .............6 Setting up and removing the control screen ......7 BATTERY AND CHARGER ......... 7 Inserting and removing the battery ........8 Battery charging ..............8 Maintenance and lifetime (warranty conditions) ....9... -
Page 5: Product Description
PRODUCT DESCRIPTION Electrically-assisted bike technical features Rear LED light Battery Screen + control bundle Central screen Remote control Front LED light Motor wiring harness Motor Speed sensor + Magnet General operation of the electrical assistance The electrically-assisted bike can be used with or without assistance by pressing the ON/OFF button. Always lock the battery with the key when in use. -
Page 6: Screen And Control Elements
SCREEN AND CONTROL ELEMENTS Screen data and function Power assistance mode (OFF <=> ECO <=> NORMAL <=> HIGH). Switch from one mode to the next by pressing the buttons Mode Norm High Power assistance level None Economical Normal High Battery consumption Medium High Average battery life*... -
Page 7: Setting Up And Removing The Control Screen
Speed indicator Settings menu: opened by simultaneously holding the buttons down for a few seconds. This menu is used to set the following: - Time - Default power assistance mode when starting - Backlighting - Brightness of the screen - Control button clicks - Unit - Language - Font colour... -
Page 8: Inserting And Removing The Battery
Inserting and removing the battery Insertion: Before inserting the battery in its position, unlock it using the key and check that the rail is free of any objects or foreign bodies. Insert the battery from the rear on the rail of the mounting bracket and slide it in place. Press it firmly in place. Then turn the key in the opposite direction to lock it and remove the key. Removal: Before removing the battery from its position, switch off the power and unlock it with the key. -
Page 9: Maintenance And Lifetime (Warranty Conditions)
Battery Adapter Charging socket Adapter Charging port Charging socket LED charging indicator on the charger: Orange LED when charging begins. Green LED when charging is finished. Fully charging the battery (charging from 0% to 100%) takes 3 hours. If the LED on the charger is flashing, contact Decathlon’s after-sales service as this indicates that there is a problem with the charger. Maintenance and lifetime (warranty conditions) Never store the battery discharged (1 flashing green LED) to avoid any deep discharge which could lead it to malfunc- tion. -
Page 10: Battery Self-Assessment
Battery self-assessment The battery charge level can be checked by pressing the battery’s power supply button. The charge level will not be displayed if the battery is fitted to the bicycle. Unless you first remove the battery from the bicycle, all the LEDs will light up indicating only that the battery is turned on. 1% - 20% 21% - 40% 41% - 60%... - Page 11 Never dismantle it. Do not dispose of the battery in non-suitable containers. Return the used battery to your Decathlon store for recycling. Risk of fire and electrocution To be handled with care. Product is sensitive to impacts. Never short-circuit the battery by connecting the positive and negative terminals. Transport by aeroplane is prohibited.
-
Page 12: Additional Precautions For Use
Additional precautions for use Always carry out maintenance operations in sufficient light. Warning, in the event of wheel removal, you must ensure the direction of rotation of your wheel is correct. Before each use you must make sure that your brakes and electric system are working properly The weight, power, manufacturing year and maximum speed are indicated on your bicycle’s frame. -
Page 13: Maintenance
Maintenance Warning - the maintenance of electrical components requires special skills and is not carried in stores but in Decathlon regional workshops and can take several days. All cleaning and electrical or mechanical maintenance must be carried out with the power switched off and the battery removed from the bike! Maintenance operations specific to the electric system must be performed by trained, qualified staff. -
Page 14: Error Codes
Error codes Battery errors (abnormal lighting of the LEDs) Lighting of the Definition Solutions LEDs Check that the charger’s cables are in good condition and properly inserted. If the situa- System error tion does not improve, go to your local Decathlon store Protection in the event of high tempe- Leave the battery to cool until the internal temperature drops sufficiently. -
Page 15: Contents Of The Commercial Warranty For Your Electrically-Assisted Bike
Contents of the commercial warranty for your electrically-assisted bike Please ensure that you keep your invoice as proof of purchase. The bike frame is covered under a lifetime warranty and a 2-year warranty covers parts subject to normal wear. The warranty does not cover damage resulting from misuse, from a failure to respect the precautions for use, from accidents, from improper use or from commercial use of the bike. - Page 16 BP 299 F-59665 VILLENEUVE D’ASCQ Declares to be authorised to establish the technical file Declares the product hereafter described : Commercial name : Elops 940E Model code : 8379378 / 8379382 Type : Electrically Power Assisted Cycle Brand : B’twin...
- Page 18 To use your electric bike to its full potential, see our complete user guide on the Decathlon website. 8379378 / 8379382| DECATHLON - 4 Boulevard de Mons - BP 299 59650 Villeneuve d’Ascq cedex - France...
